Front Seat Belt Buckle

1. Remove the front seat.
2. Remove the following part from the front seat:

Manual Seat:

Manual Height Adjustable Seat:

- Manual seat: center cover
- Manual height adjustable seat: center cover

Power Height Adjustable Seat:

8-Way Power Seat:

- 8-way power seat: center cover
- Power height adjustable seat: Bracket cover

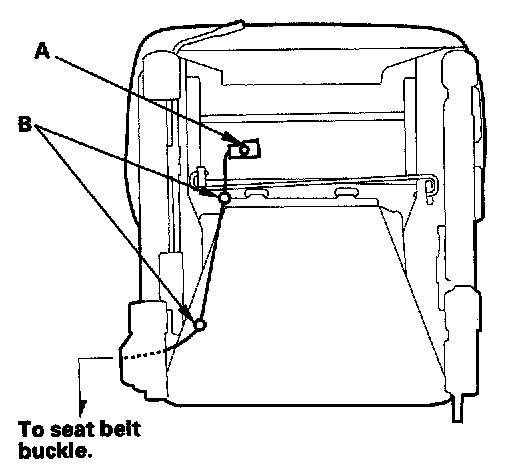

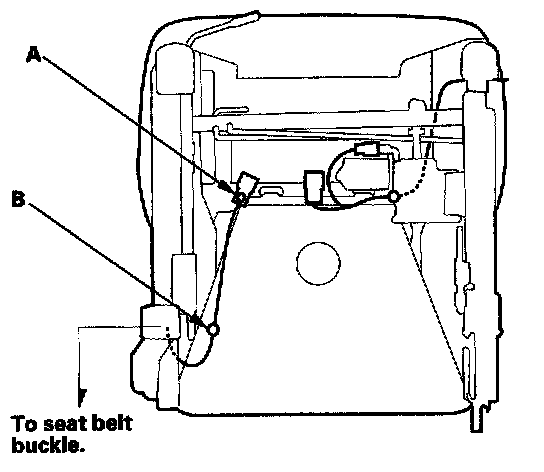

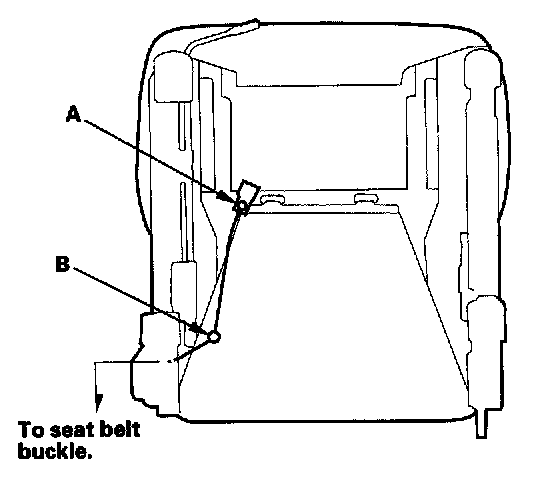

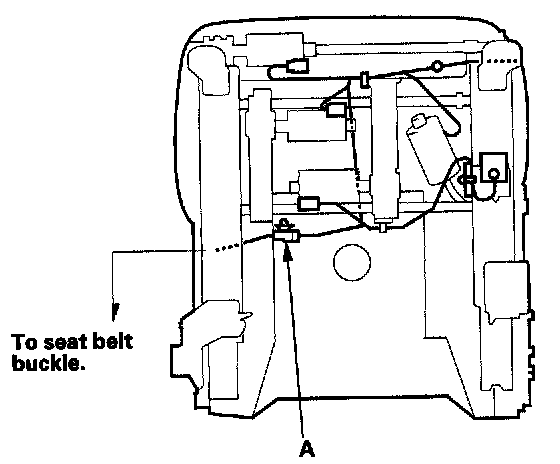

3. On a driver's seat, disconnect and/or detach the seat belt switch connector and clip (A) and harness clips (B).

Front Seat Belt - Sedan:

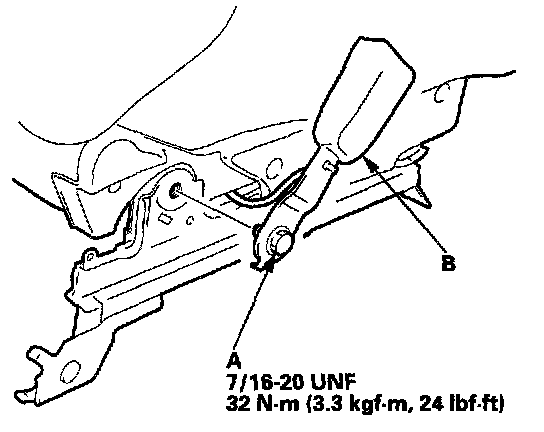

4. Remove the center anchor bolt (A), and remove the seat belt buckle (B).

NOTE: The power height adjustable seat is shown, the manual seat, and the manual height adjustable seat are similar.

Front Seat Belt - Sedan:

5. On a driver's seat, remove the seat belt switch harness (A):

- Without manual seat: Adjust the seat cushion to its maximum height, and remove the harness.

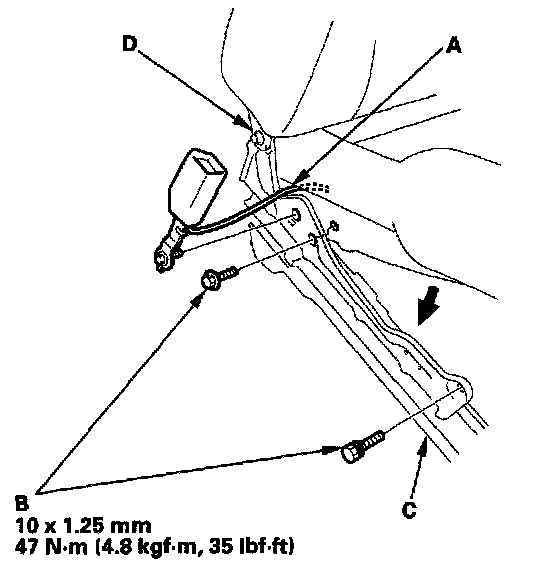

- With manual seat: Remove the seat cushion mounting bolts (B) from the inner seat track (C), then pull the inner seat track down away from the seat cushion, and remove the harness. Take care not to damage the hinge bracket (D).

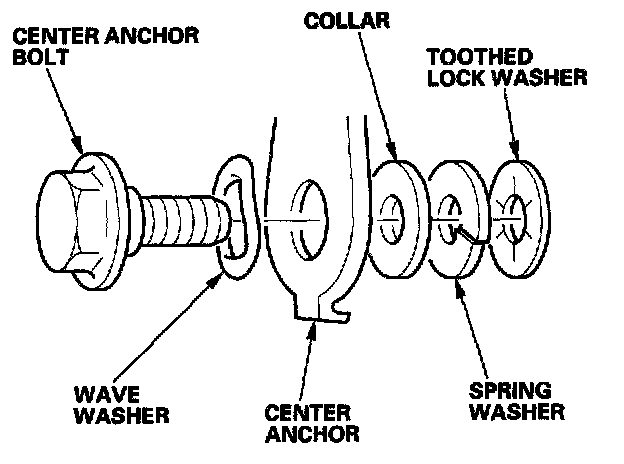

Center Anchor Bolt - Sedan:

6. Install in the reverse order of removal. Assemble the washers on the center anchor bolt as shown.
