Accord Wagon L4-2.2L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G401
G401

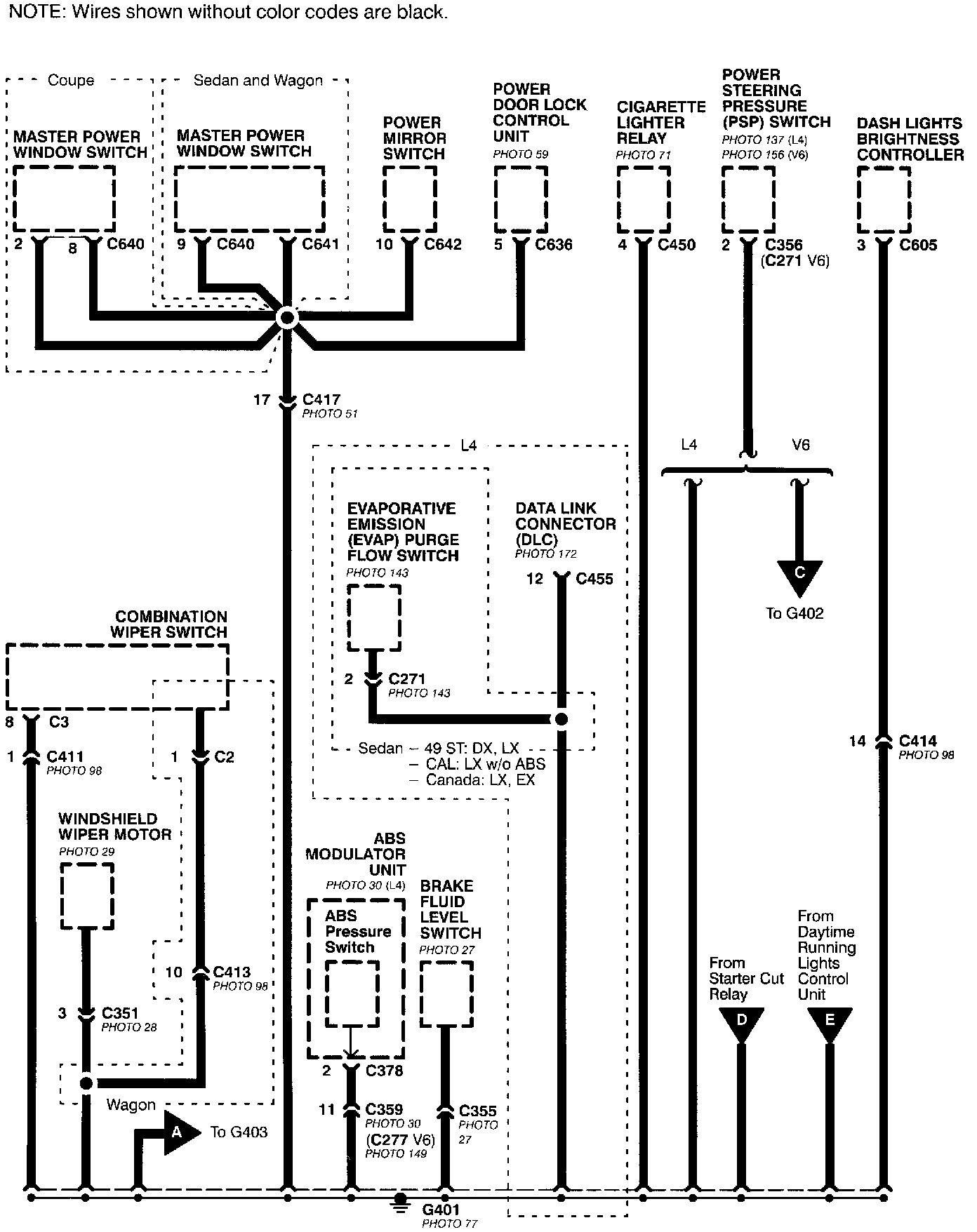

Ground Distribution - G401:
