Nippondenso Starters

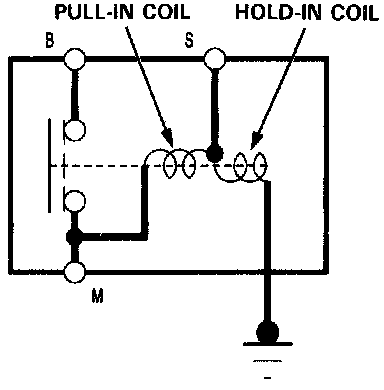

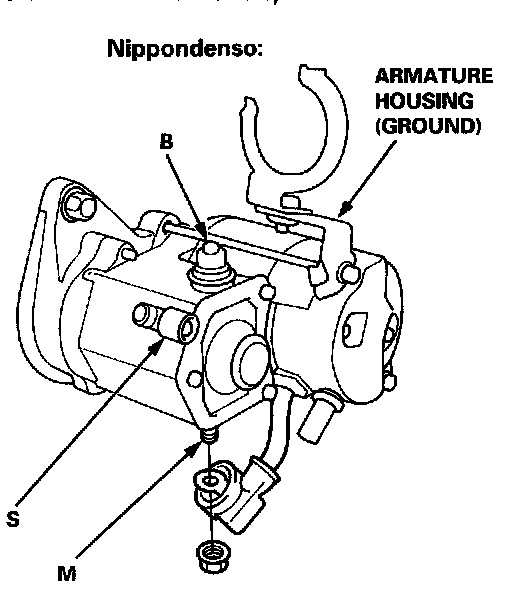

1. Check the hold-in coil for continuity between the S terminal and the armature housing (ground). The coil is OK if there is continuity.






2. Check the hold-in coil for continuity between the S and M terminals. The coil is OK if there is continuity.
