Installation

Knuckle Installation

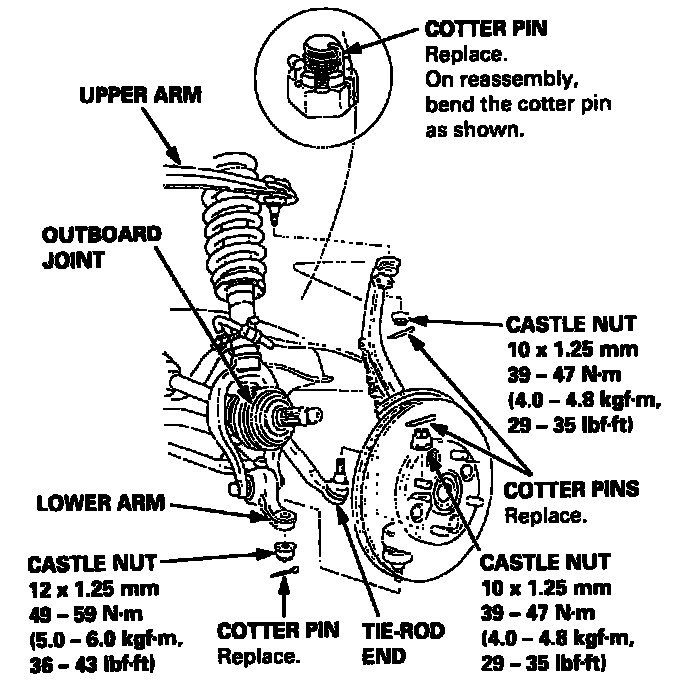

1. Install the knuckle on the driveshaft outboard joint.
2. Install the knuckle on the tie-rod end, upper arm and lower arm, then tighten the castle nuts and install the new cotter pins.

CAUTION: Torque the castle nut to the lower torque specification, then tighten it only fer enough to align the slot with the pin hole. Do not align the nut by loosening.





3. Install the knuckle protector with the 6 mm bolt.

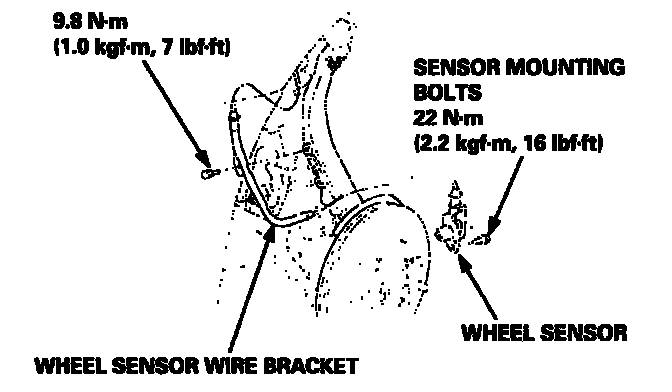

4. Install the wheel sensor with the sensor mounting bolts (for cars with ABS).





5. Install the wheel sensor wire bracket with the two flange bolts (for cars with ABS).

NOTE: Be careful when installing the sensors to avoid twisting wires.

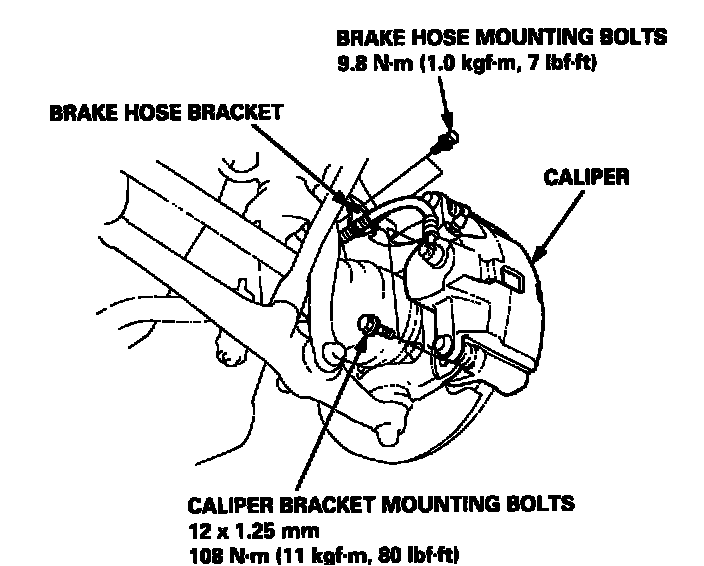

6. Install the caliper with the caliper bracket mounting bolts.





7. Install the brake hose bracket with the brake hose mounting bolts.

CAUTION: Be careful not to twist the hose more than necessary.

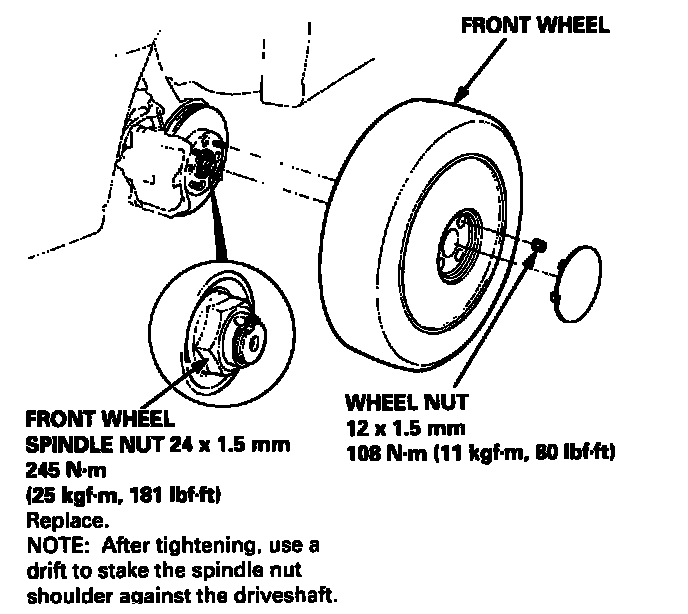

8. Install the new spindle nut, then tighten and stake the nut.





9. Install the front wheel with the wheel nuts.

NOTE: Before installing the wheel, clean the mating surfaces of the brake disc and wheel shoulder against the driveshaft.

10. Check the front wheel alignment, and adjust if necessary.
