Windows - Front Door Glass Comes Out of Run Channel: Overview

97-060

September 22, 1997

Applies To: 1994-97 Accord 4-door - All

Front Door Glass Comes Out of Run Channel

SYMPTOM
When operating a front window (power or manual), the rear edge of the glass comes out of the B-pillar run channel.

PROBABLE CAUSE
The window regulator is out of adjustment.






CORRECTIVE ACTION
Adjust the window regulator, the front channel, and the glass.

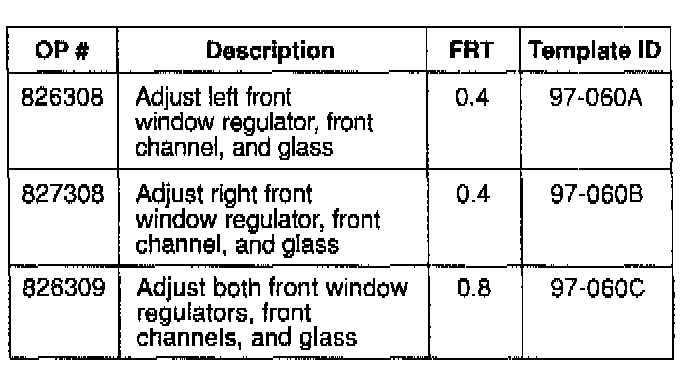

WARRANTY CLAIM INFORMATION
In warranty:
The normal warranty applies.

Failed part: P/N 72250-SV4-A11, H/C 4272282

Defect code: 030

Contention code: B01

Skill level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REQUIRED MATERIALS

Thread Lock 3: P/N 08713-0003, H/C 2963841
