Differential Carrier Assembly: Service and Repair

REPLACEMENT

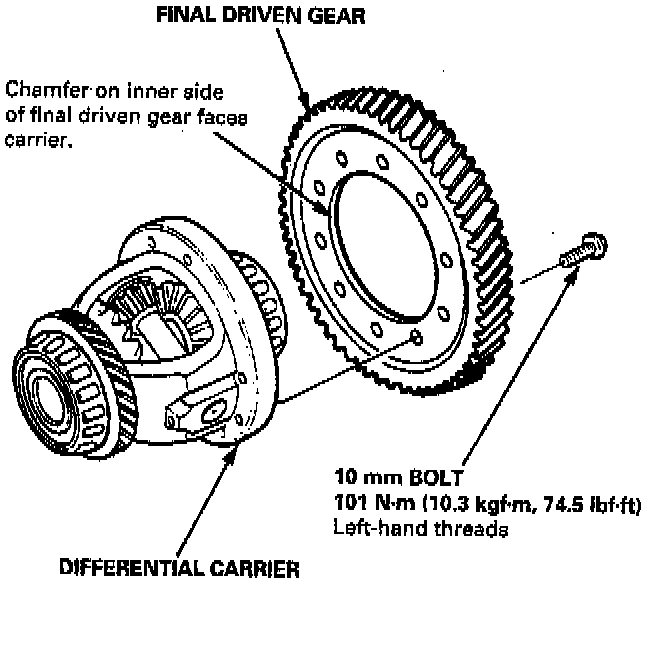

1. Remove the final driven gear from the differential carrier.

NOTE: The final driven gear bolts have left-hand the reads.

2. Install the final driven gear with its chamfered side on inner bore facing the differential carrier.
3. Torque the bolts to the specified torque in a crisscross pattern. Torque to 101 Nm (74.5 ft. lbs.)
