Shift Cable: Service and Repair

WARNING:
- MAKE SURE LIFTS, JACKS AND SAFETY STANDS ARE PLACED PROPERLY, AND HOIST BRACKETS ARE ATTACHED TO THE CORRECT POSITION ON THE ENGINE.
- APPLY PARKING BRAKE AND BLOCK REAR WHEELS SO VEHICLE WILL NOT ROLL OFF STANDS AND FALL ON YOU WHILE WORKING UNDER IT.





CAUTION:

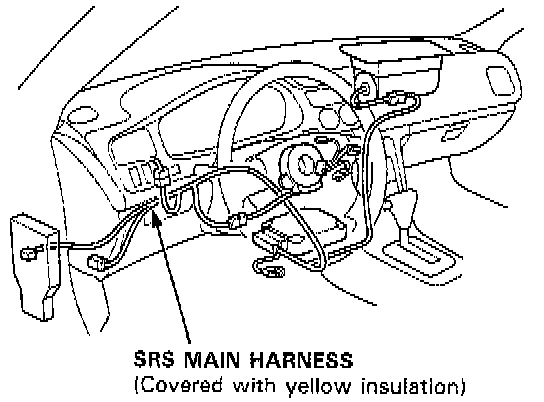

- All SRS wire harnesses are covered with yellow insulation. Before you disconnect any part of an SRS wire harness, disconnect the airbag connectors.
- Whenever the ignition switch ON (II), or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.

REPLACEMENT
1. Remove the front console.

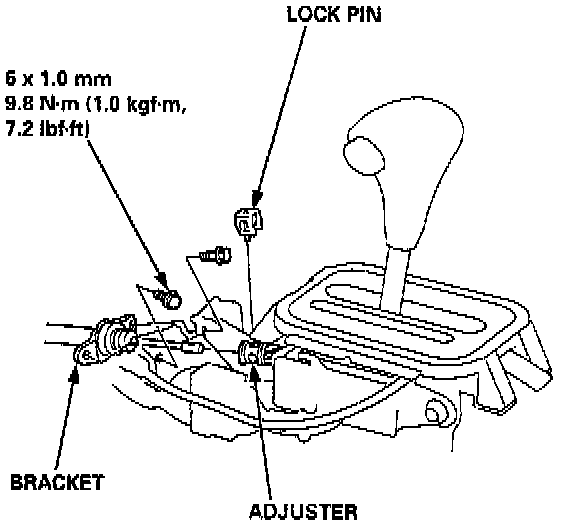

2. Shift to N position, then remove the lock pin from the cable adjuster.





3. Remove the bolts securing the bracket.
4. Remove the shift cable cover.

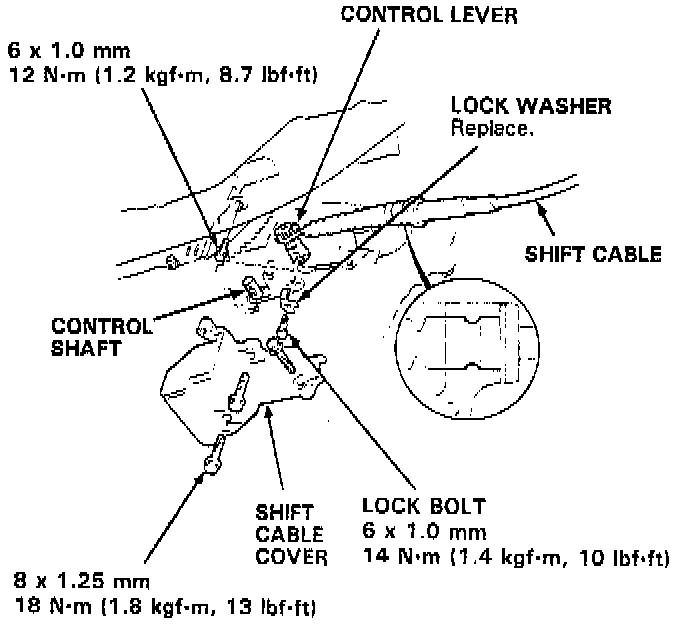

5. Remove the lock bolt securing the control lever, then remove the control lever with the shift cable.

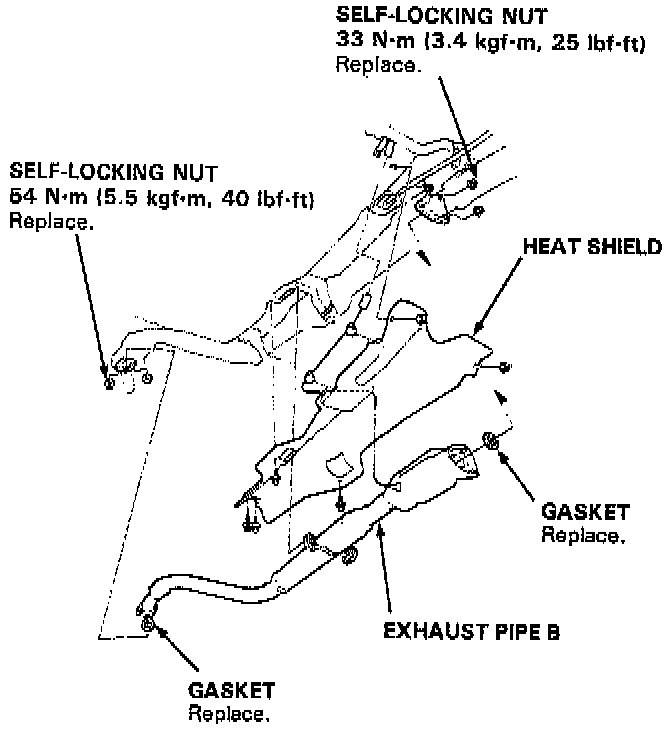

6. Remove exhaust pipe B and the heat shield.

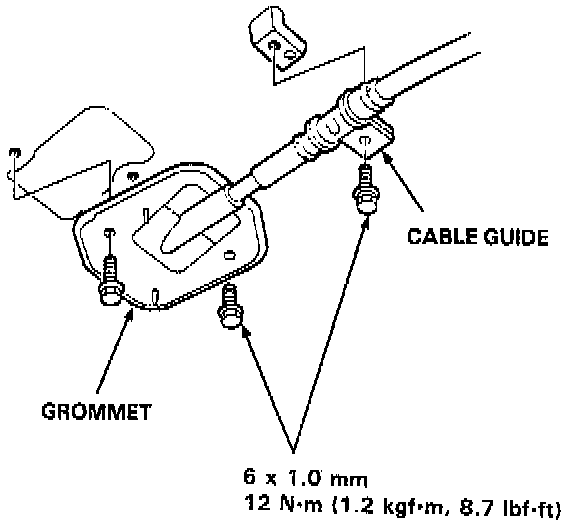

7. Remove the cable guide and grommet.
8. Remove the shift cable, then replace it.
9. Install the shift cable in the reverse order of removal.
10. Check the cable adjustment after installing the shift cable.
