Home >> Honda >> 1996 >> Accord Wagon L4-2.2L SOHC VTEC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Locations

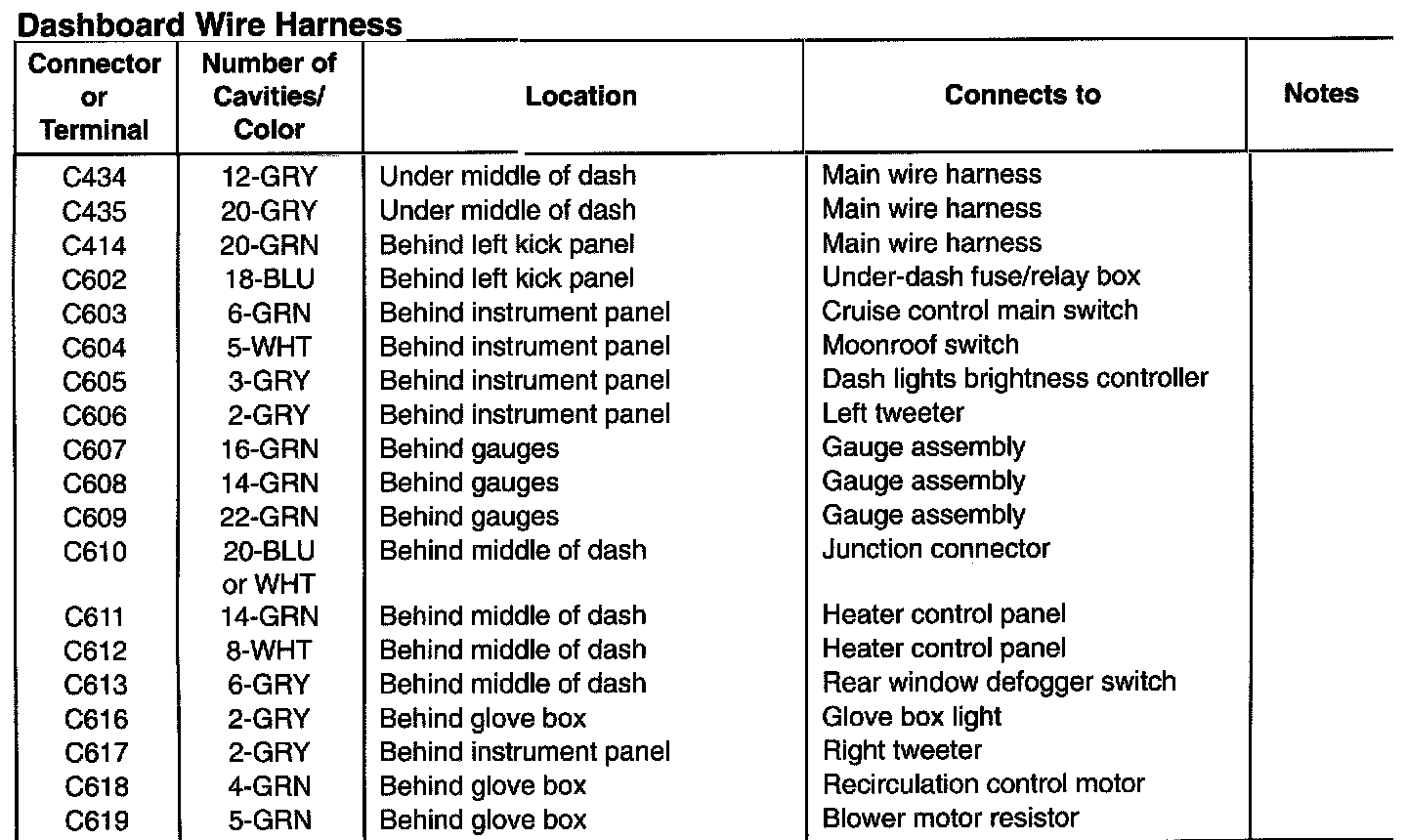

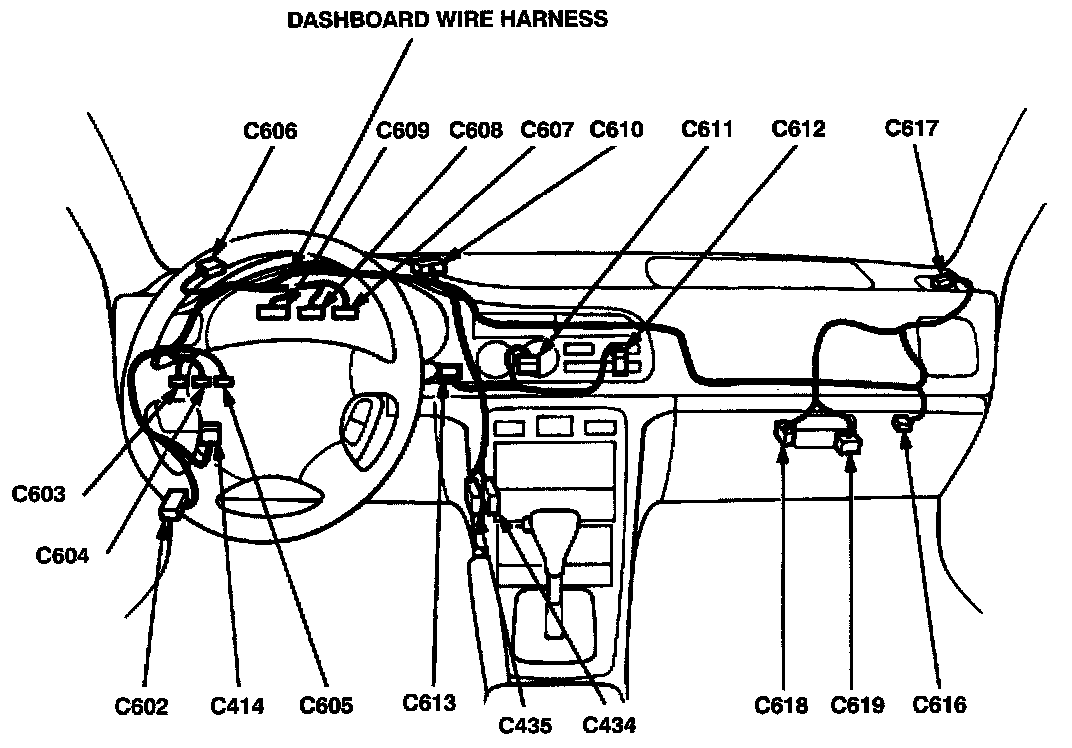

Instrument Panel, Gauges and Warning Indicators: Locations

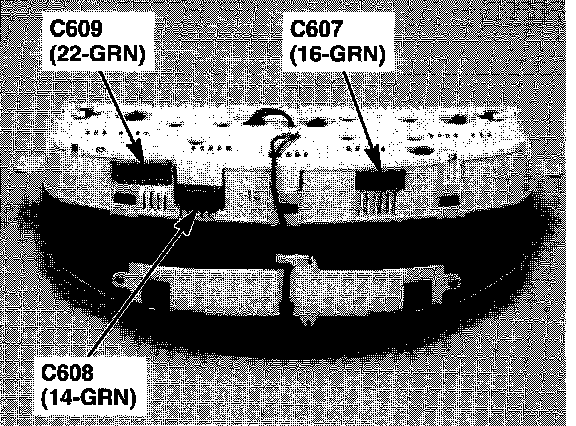

Brake Lamp Warning Indicator,Top Of Gauge Assembly, Connector 608.
