Diesel Data: Automotive Repair
Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (16 Valve) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Diagrams >> Electrical Diagrams >> USA

USA

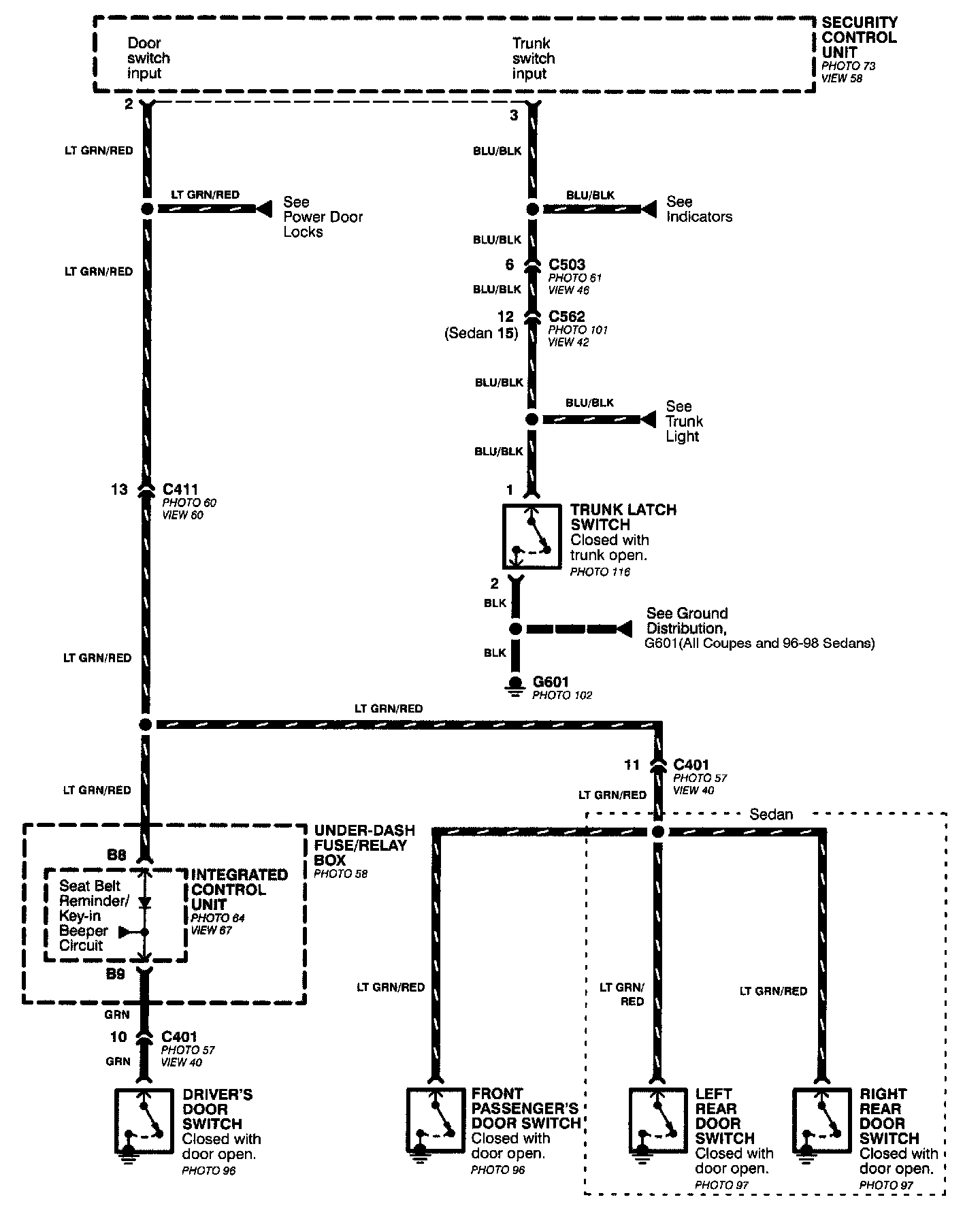

Part 1 of 4:

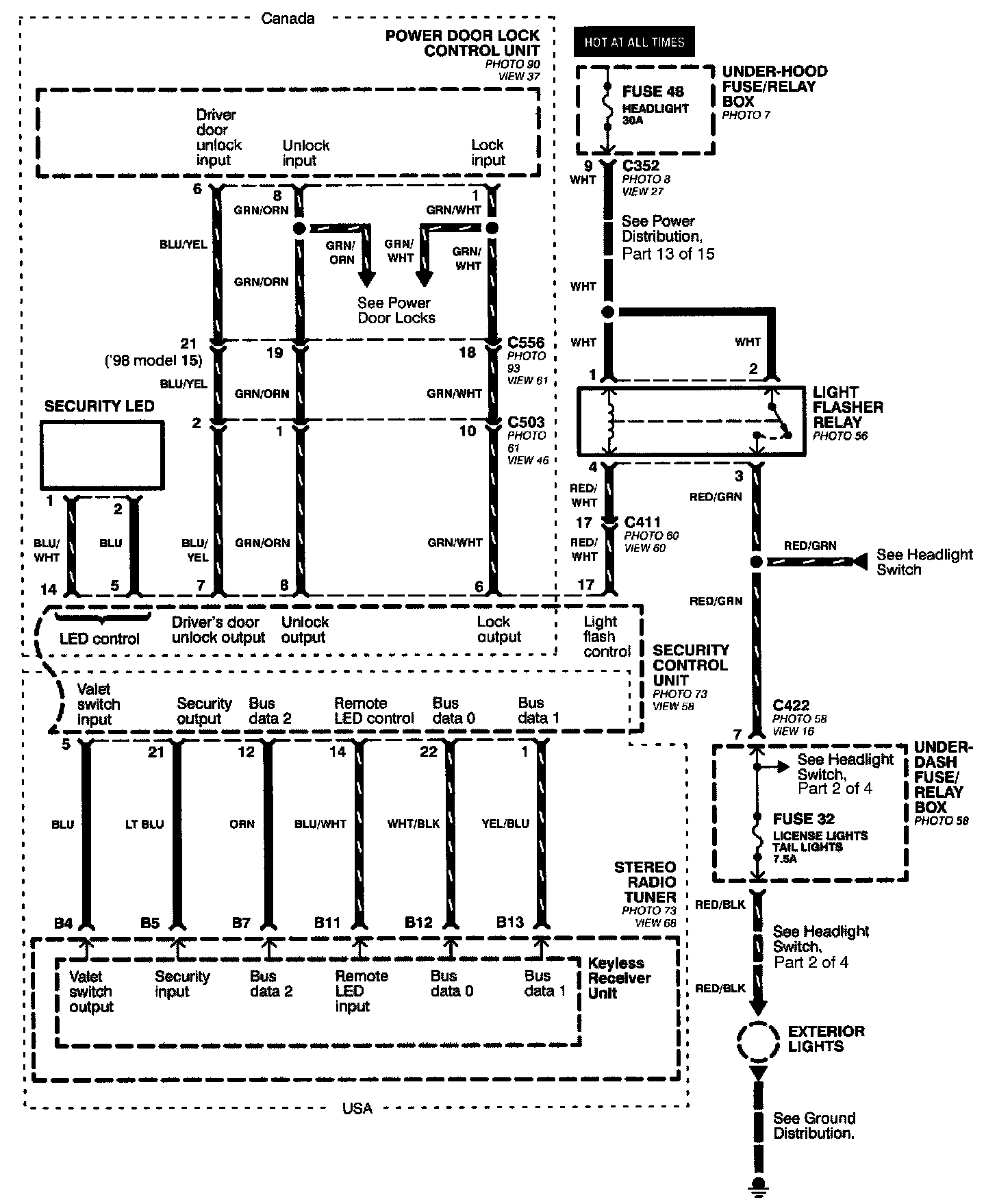

Part 2 of 4:

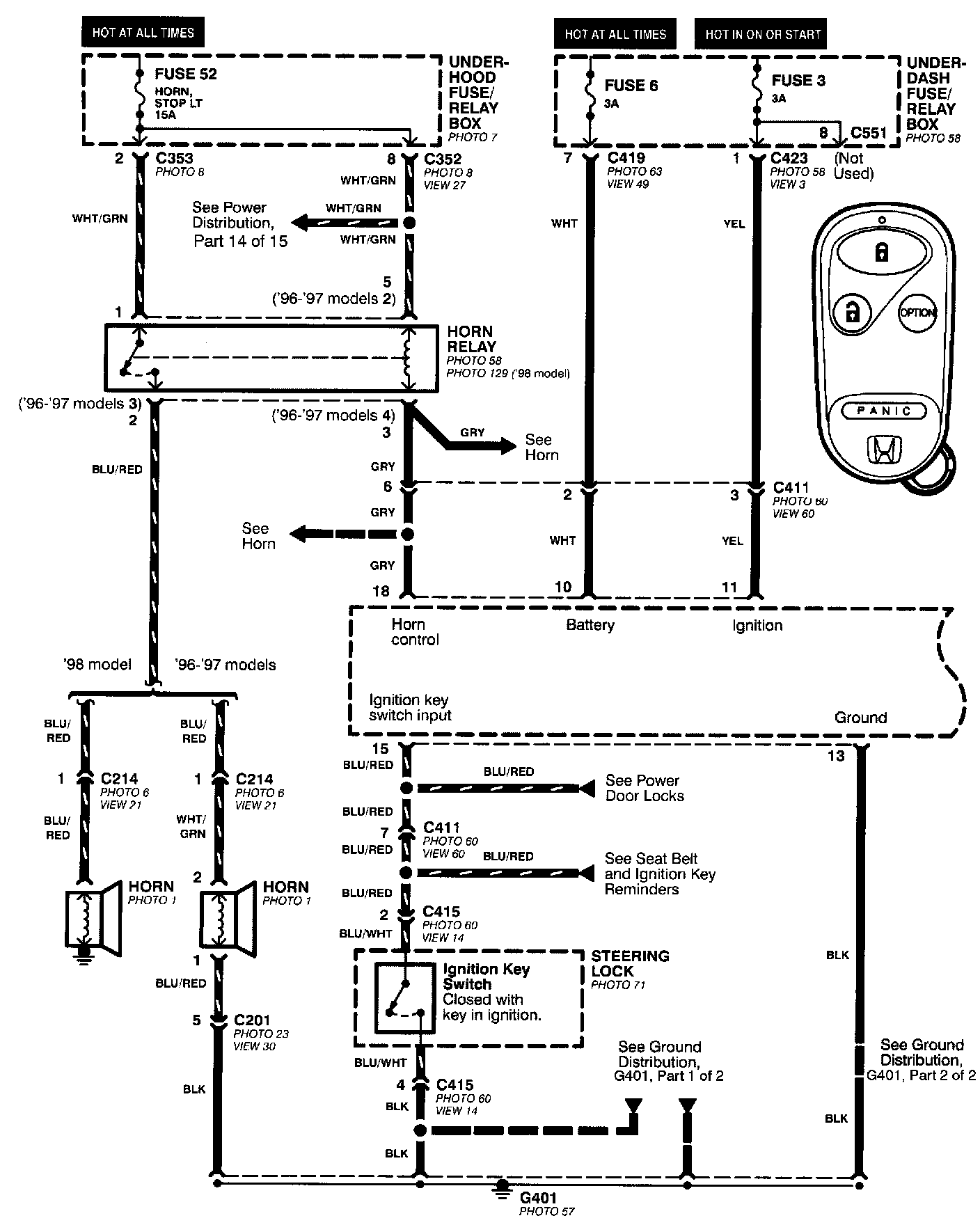

Part 3 of 4:

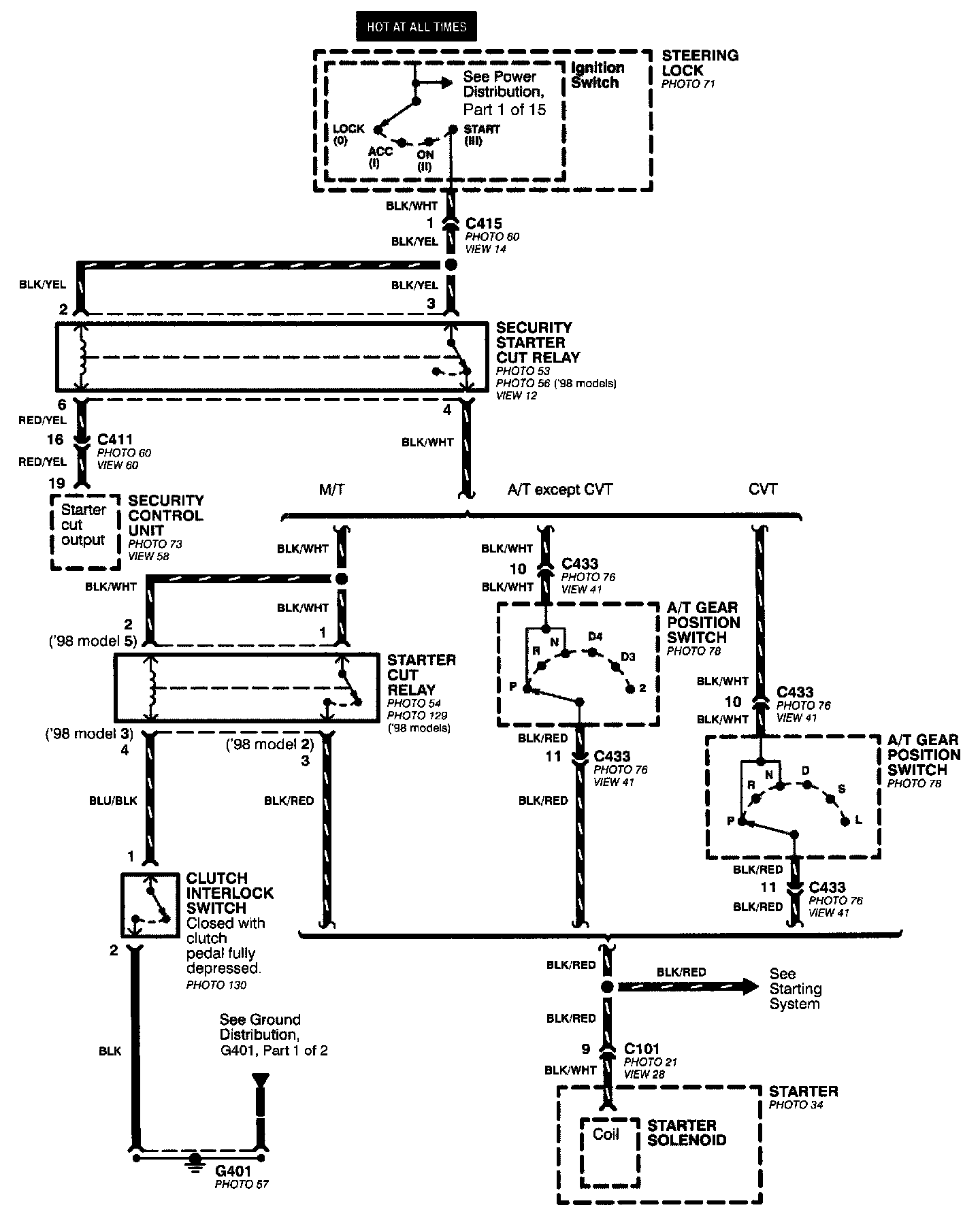

Part 4 of 4:
