Spoiler: Service and Repair

NOTE: Take care not to scratch the hatch and body.


1. Remove the hatch upper trim.

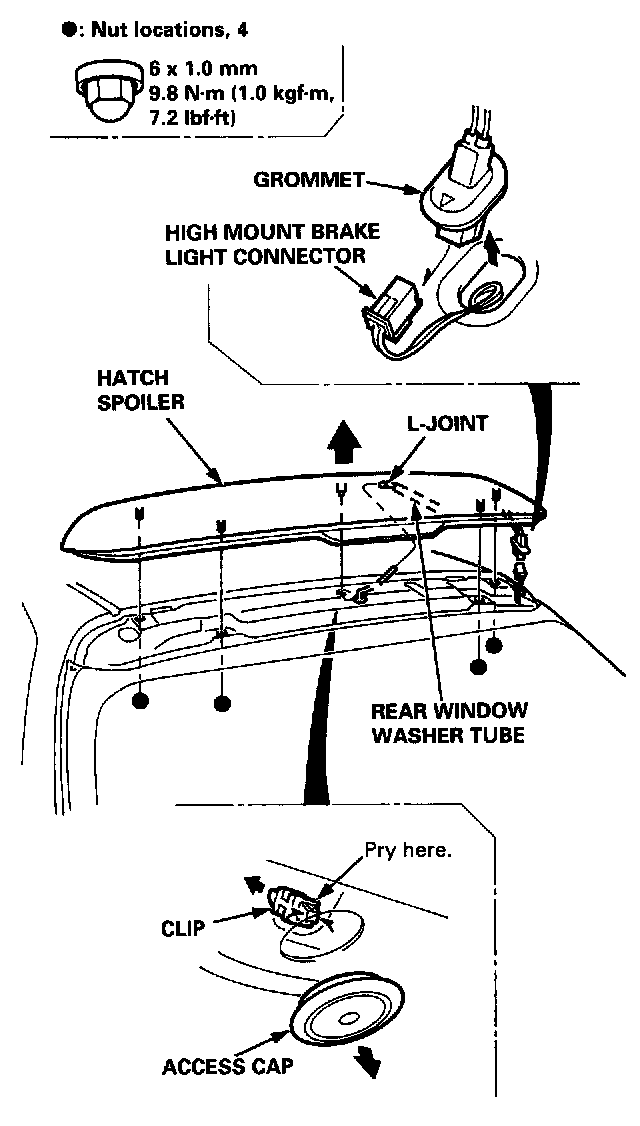

2. Remove the nuts, and detach the clip, then lift the hatch spoiler up.
3. Disconnect the high mount brake light connector and rear window washer tube, then remove the hatch spoiler.

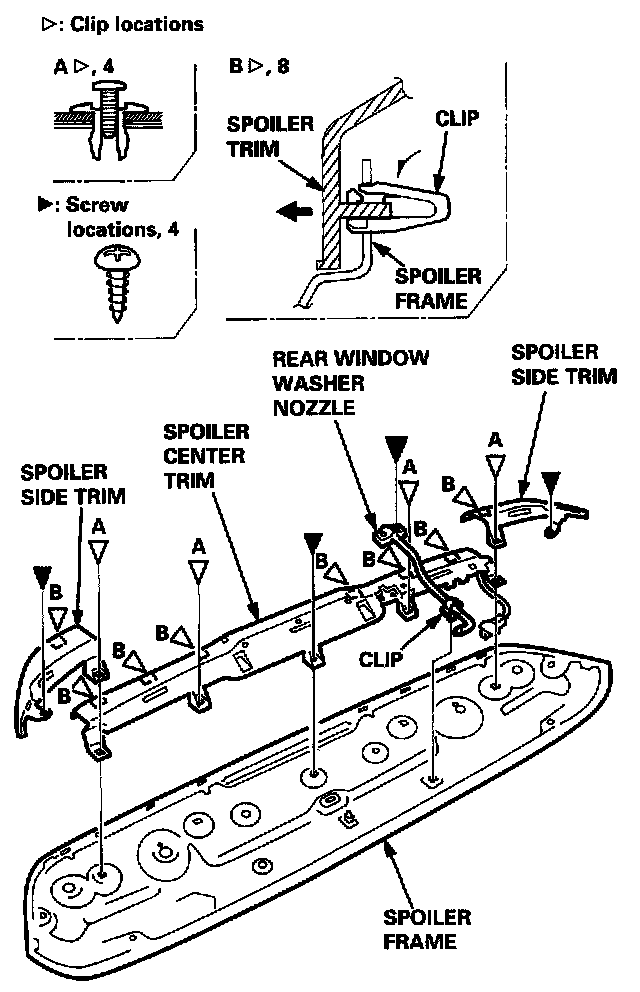

4. If necessary, remove the spoiler trim from the spoiler frame.

NOTE: The hatch spoiler trim for Canada produced cars cannot be disassembled.

5. Installation is the reverse of the removal procedure.

NOTE:
- If necessary, replace any damaged clips.
- Make sure the connector and washer tube are connected properly.
