Diesel Data: Automotive Repair

Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (16 Valve) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Wheel Sensor

Wheel Sensor

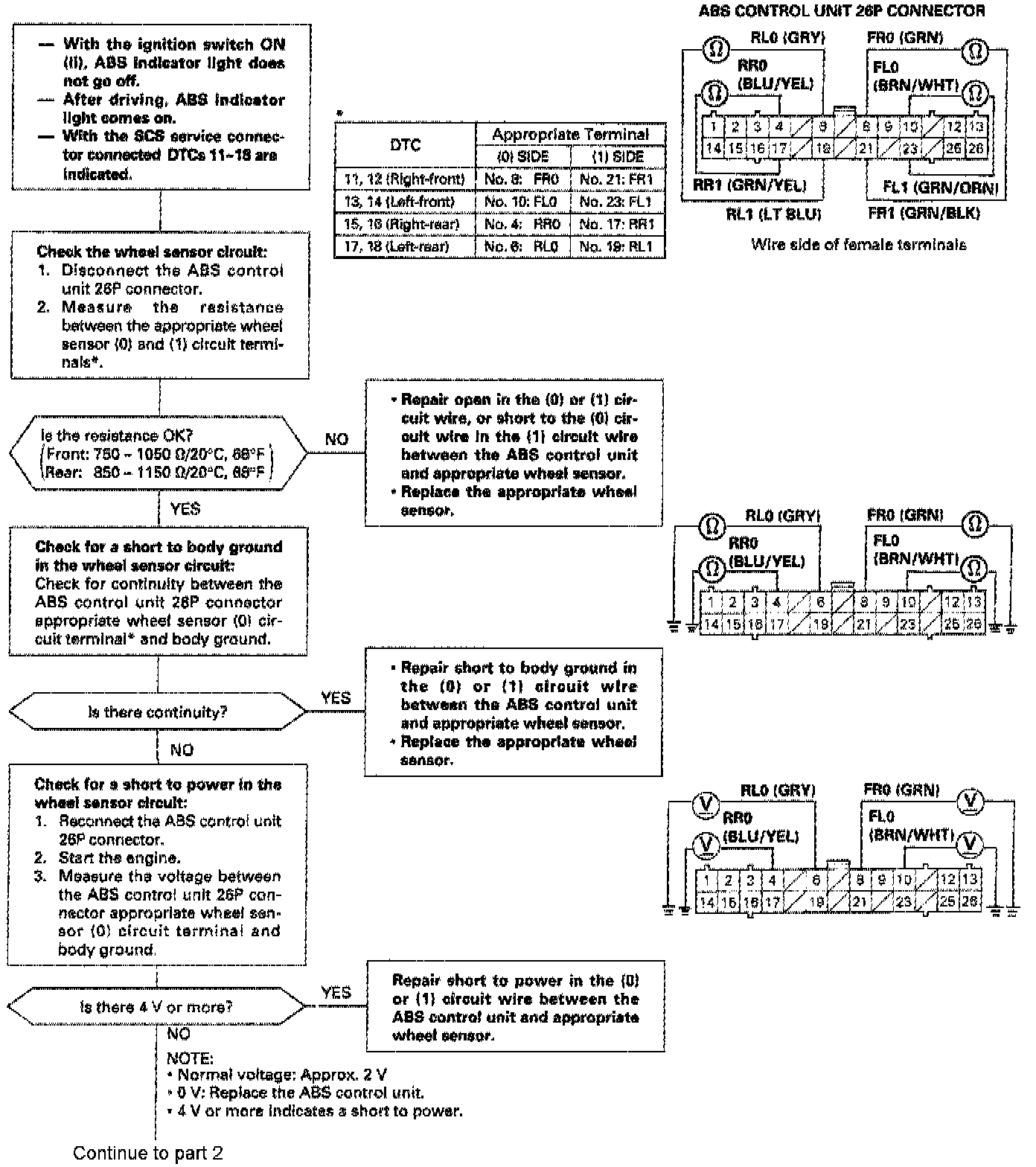

Part 1 Of 2:

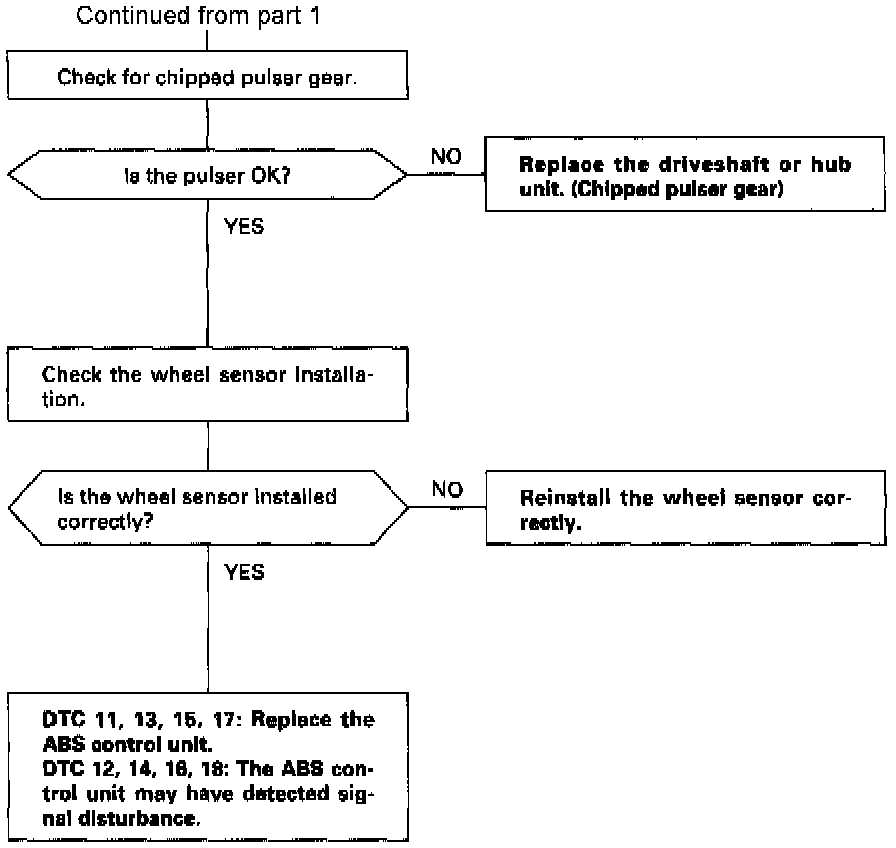

Part 2 Of 2:
