Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (16 Valve) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> All Years

All Years

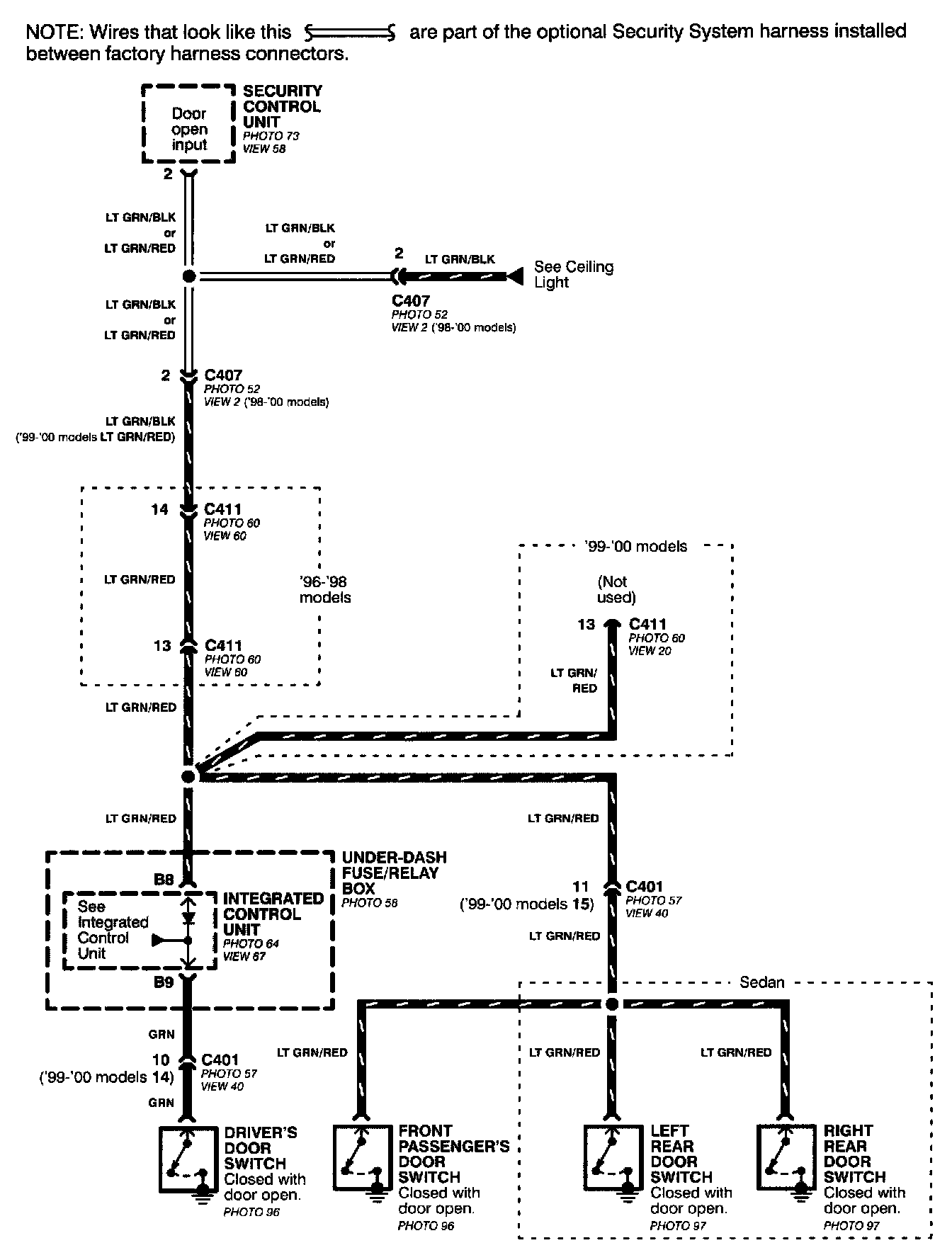

Part 1 of 3:

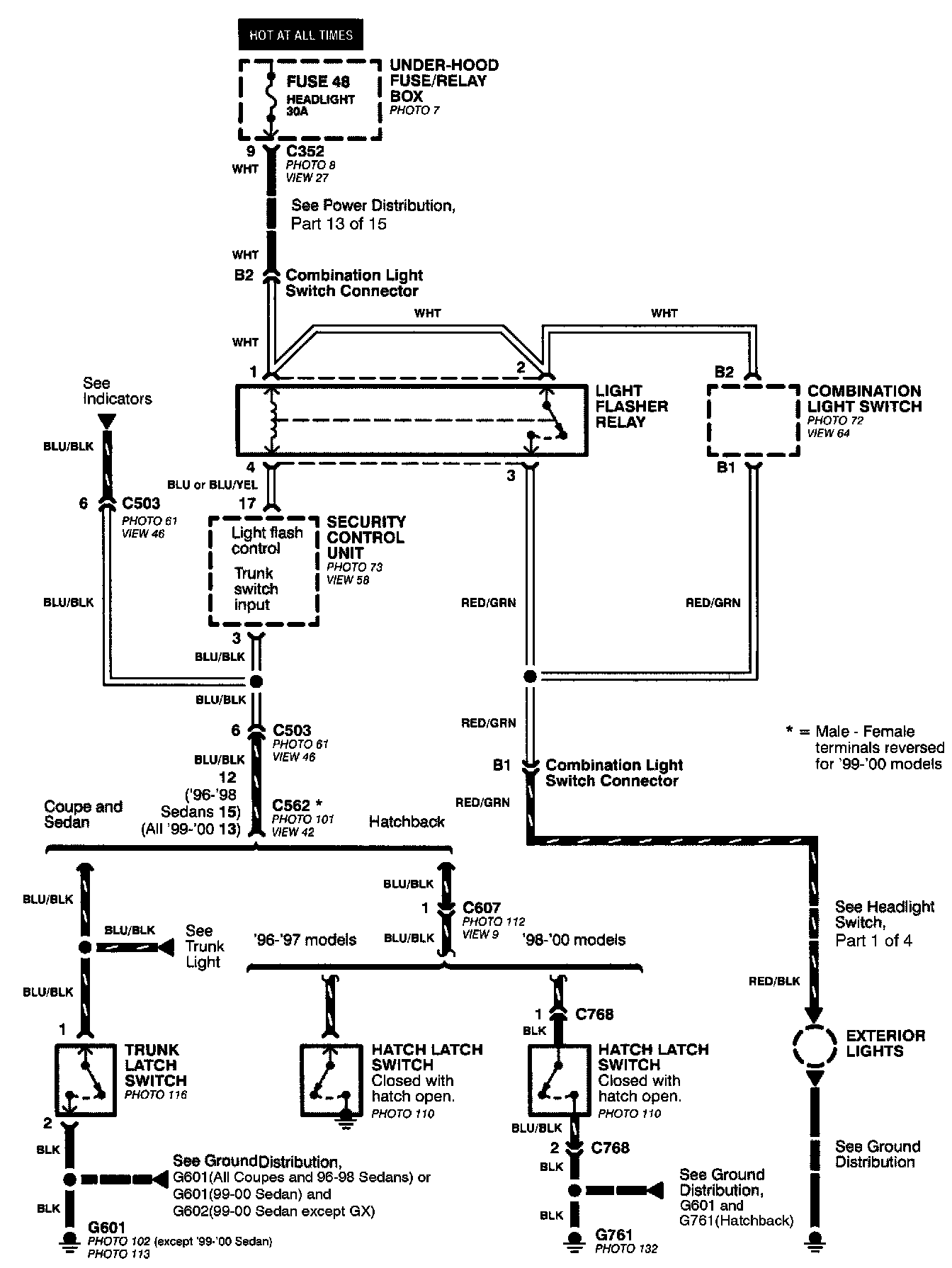

Part 2 of 3:




Part 3 of 3:
