Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Civic Coupe L4-1.6L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>

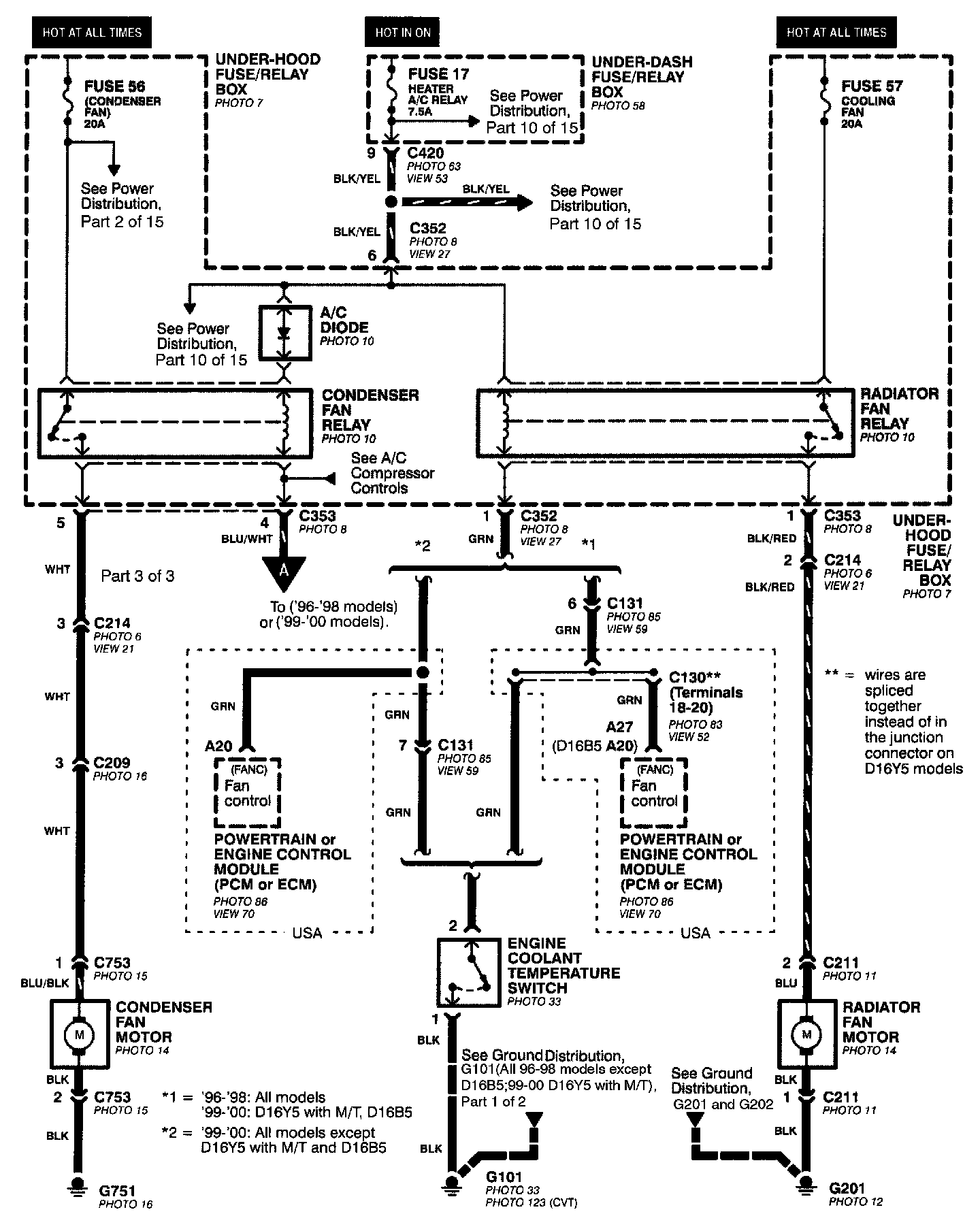

A/C Fan Diagrams
A/C Fan Diagrams
