Civic Coupe L4-1.6L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Air Conditioning System

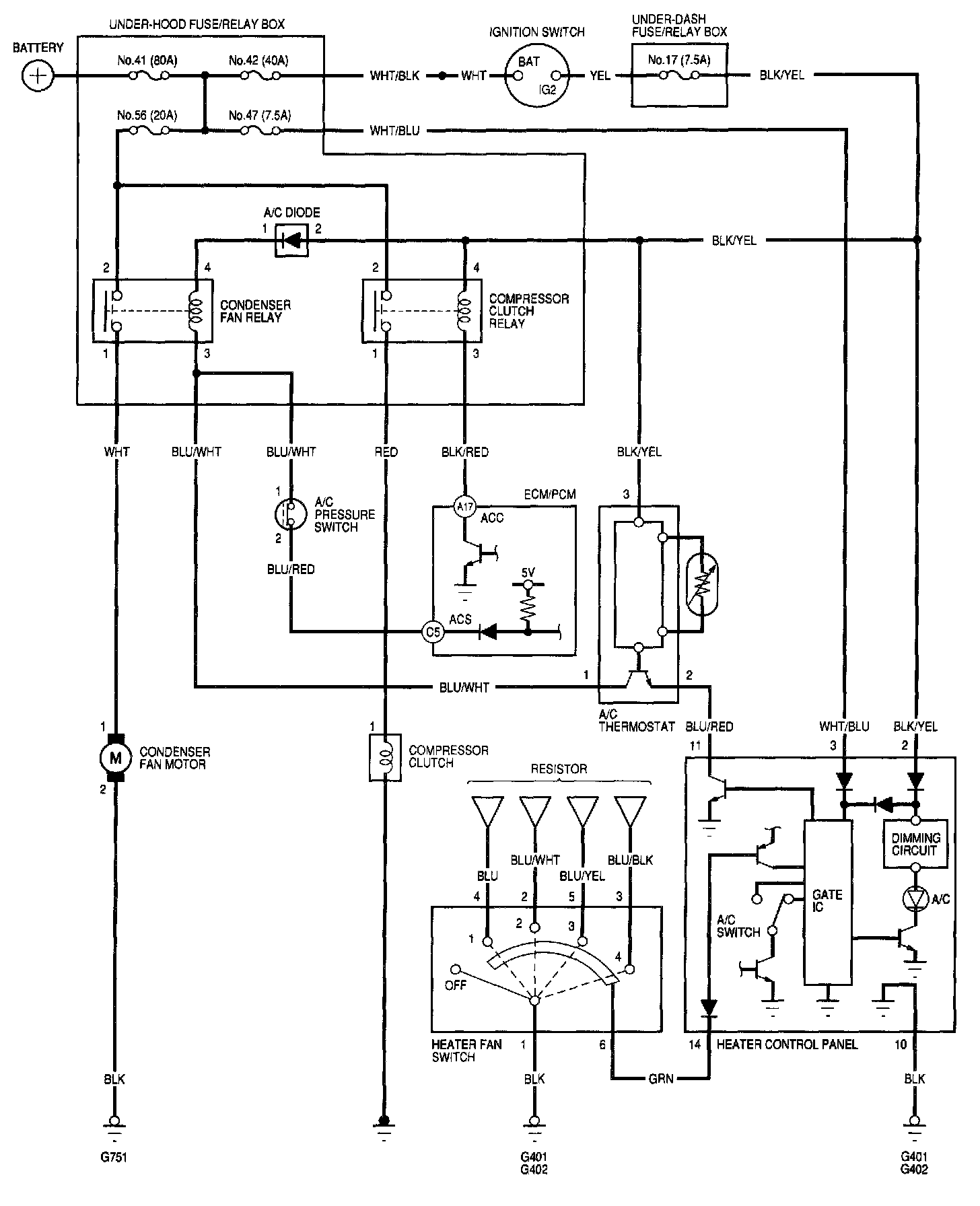

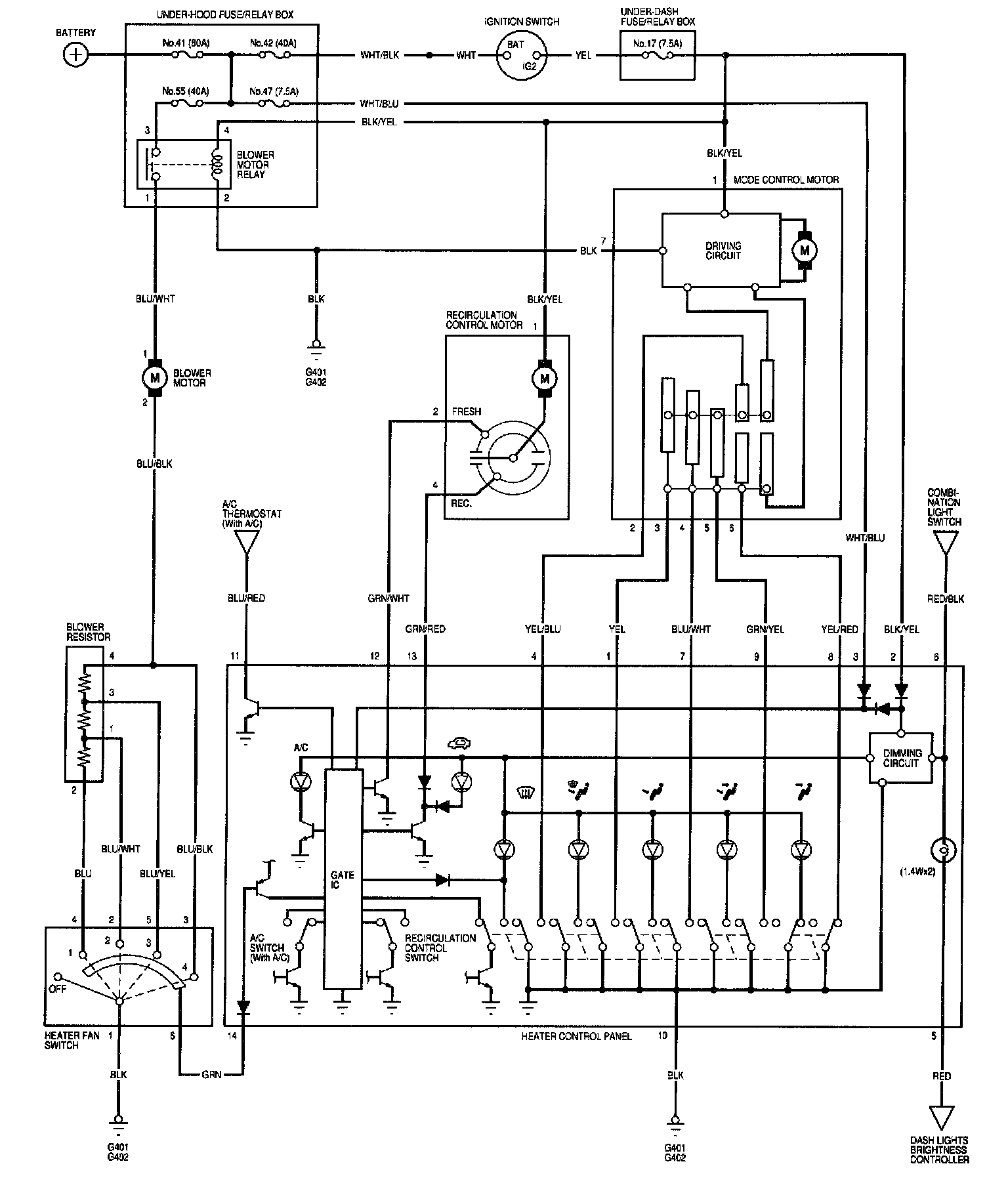

Air Conditioning System

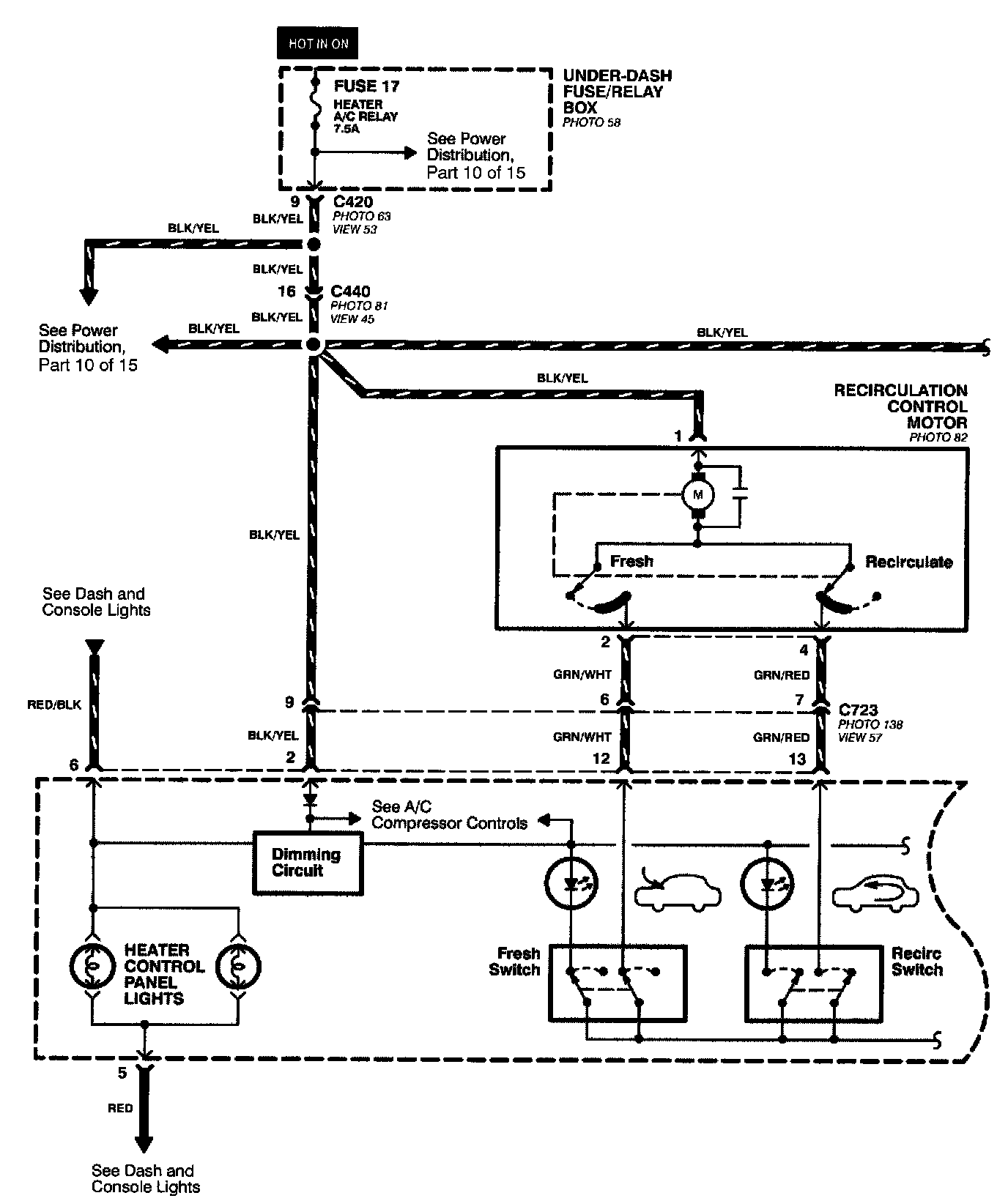

Part 1 of 2:

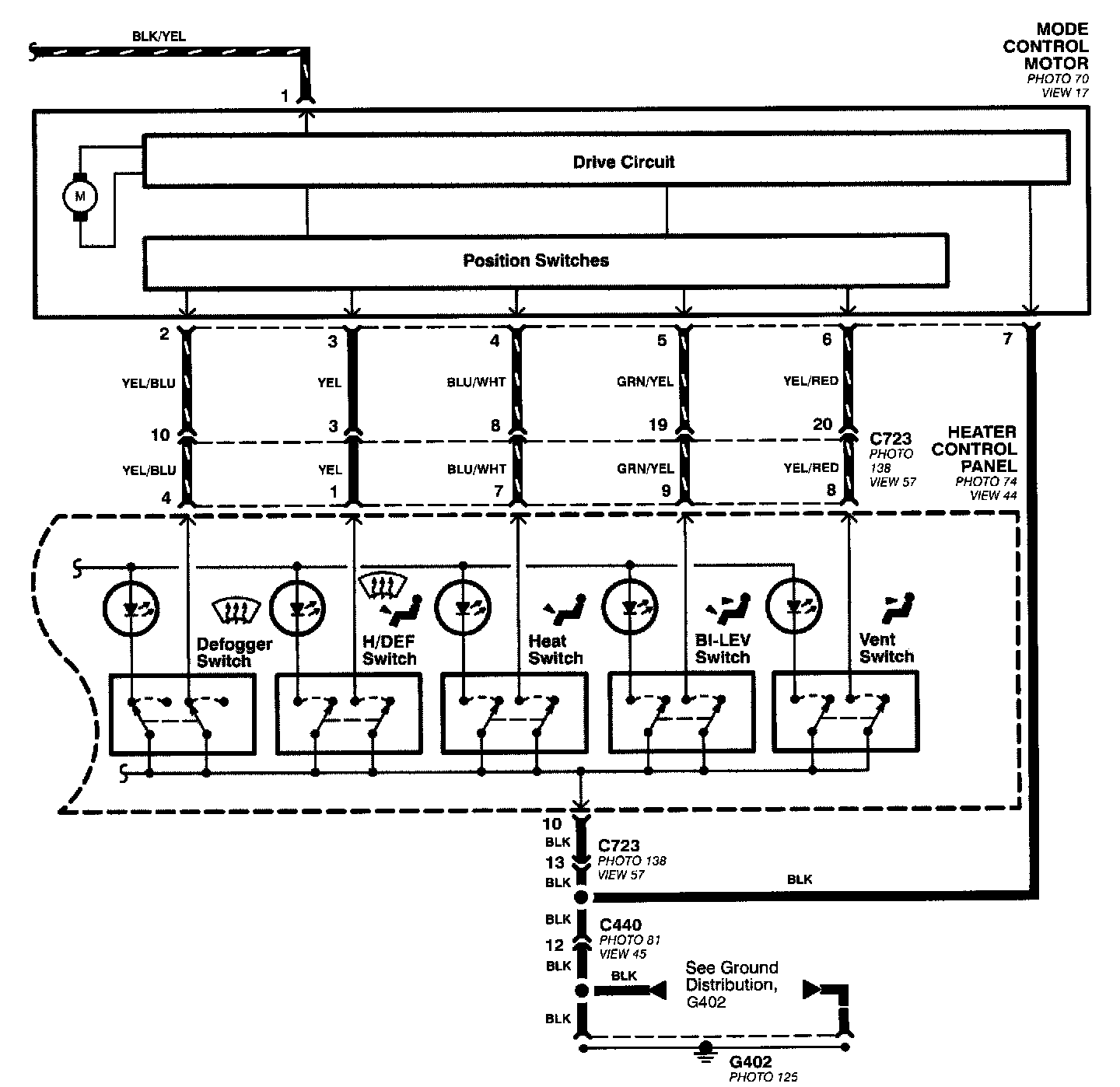

Part 2 of 2:
