Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Civic Coupe L4-1.6L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Wiring Diagrams
>>
With Automatic Transmission
With Automatic Transmission

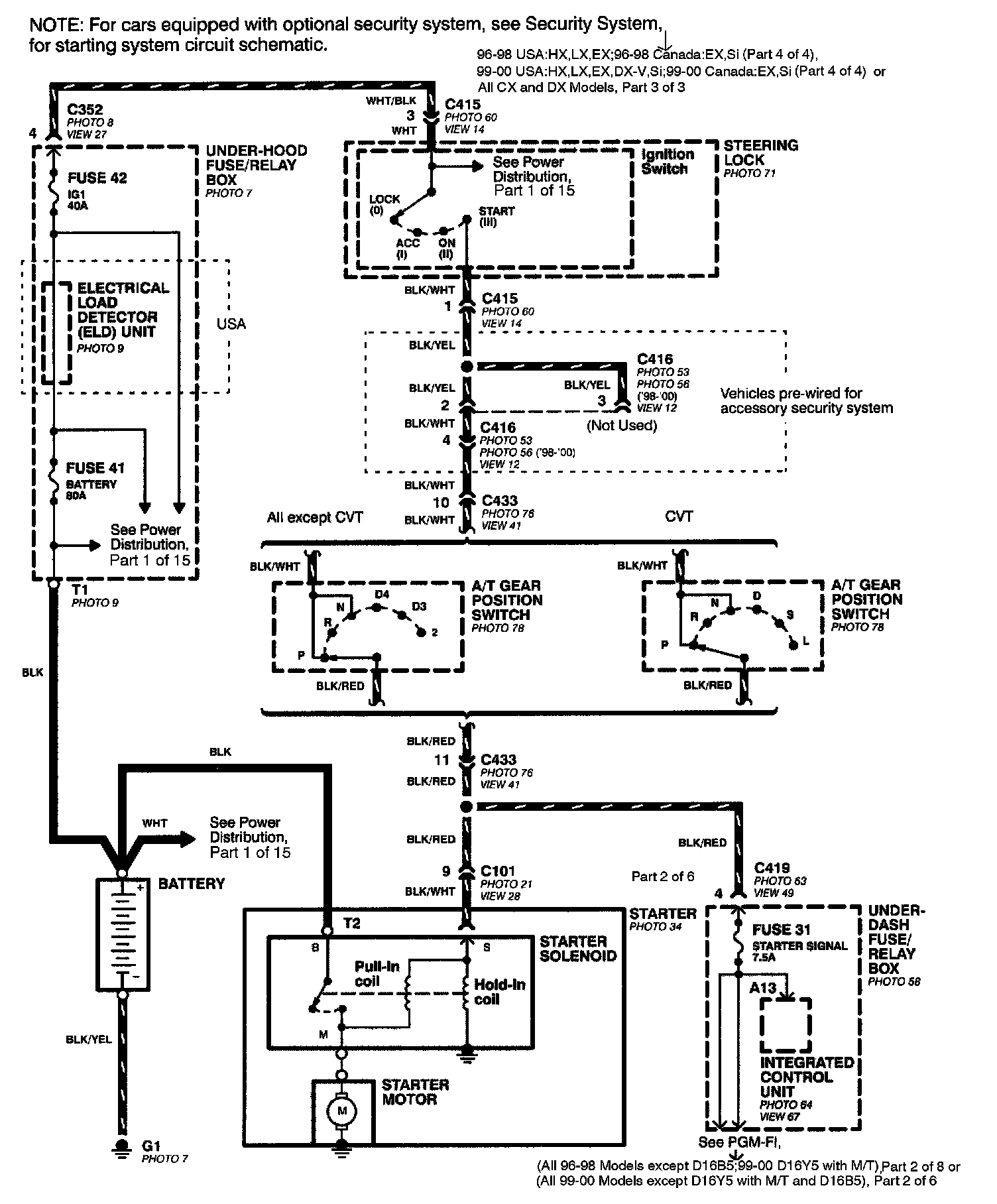

With Automatic Transmission (All Except D16B5):
