Diesel Data: Automotive Repair

Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (16 Valve) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Heater >> Symptom Diagnostic Procedure >> Mode Control Motor Does Not Run, One or More Modes Are Inop

Mode Control Motor Does Not Run, One or More Modes Are Inop

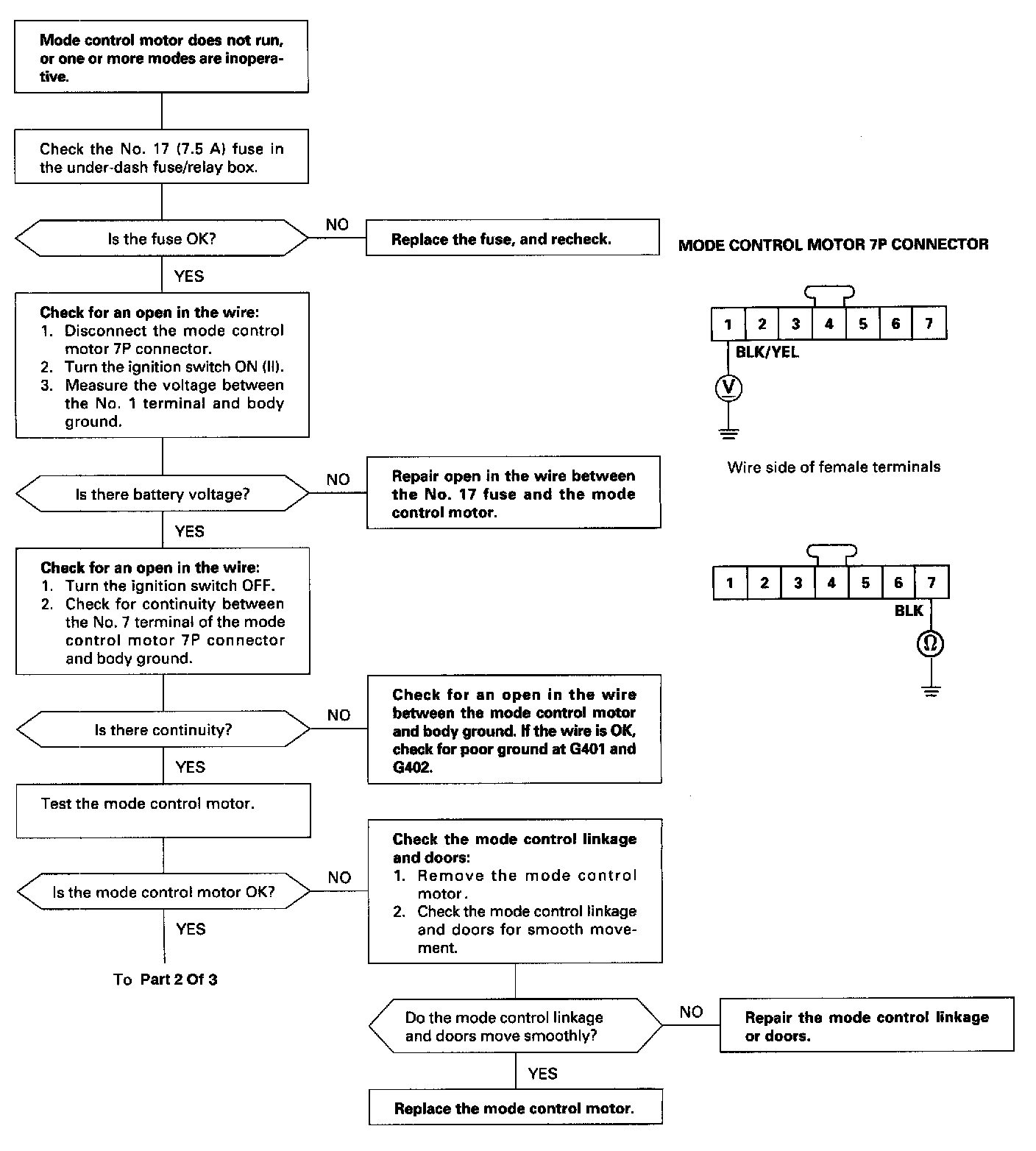

Part 1 Of 3:

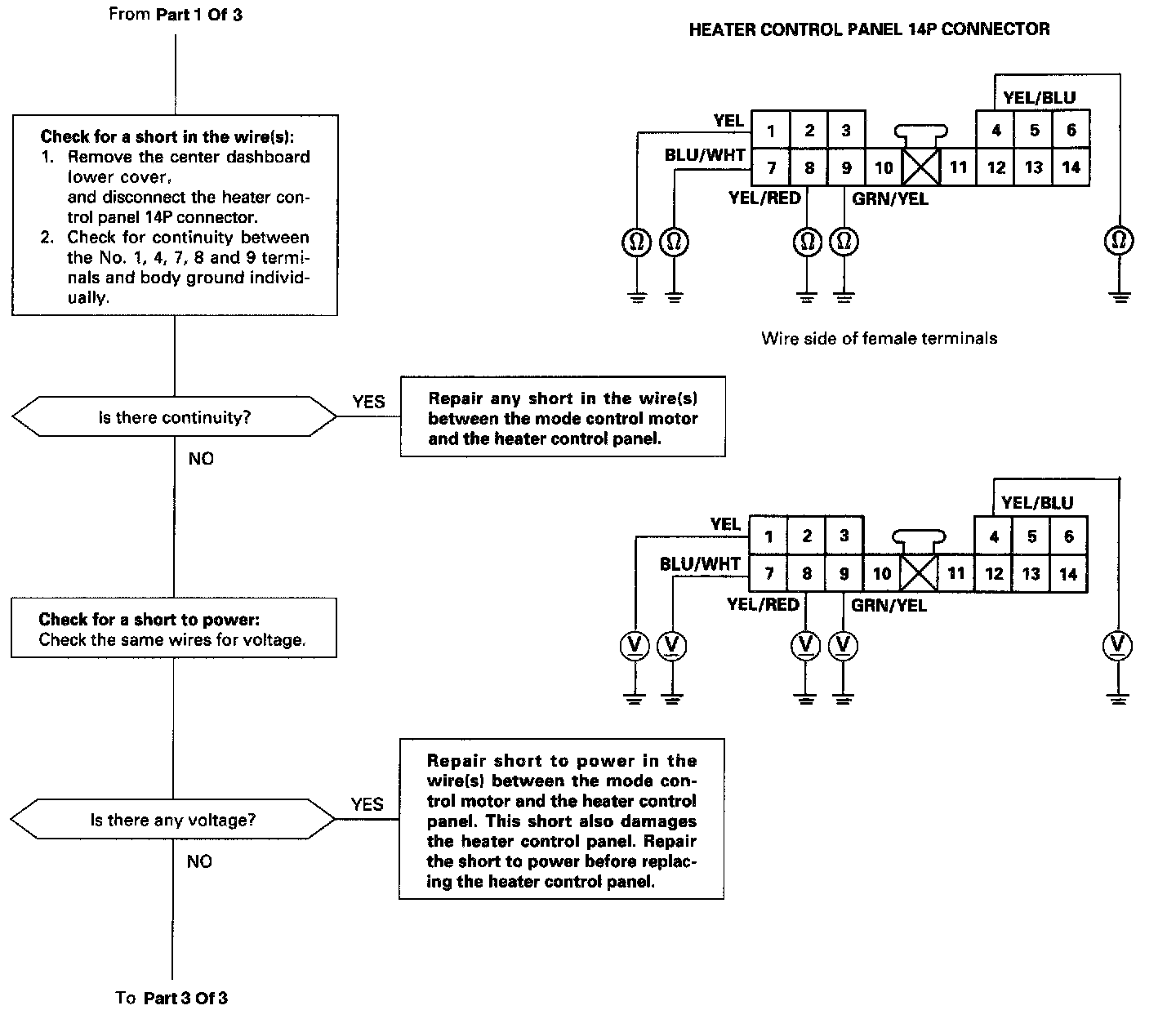

Part 2 Of 3:

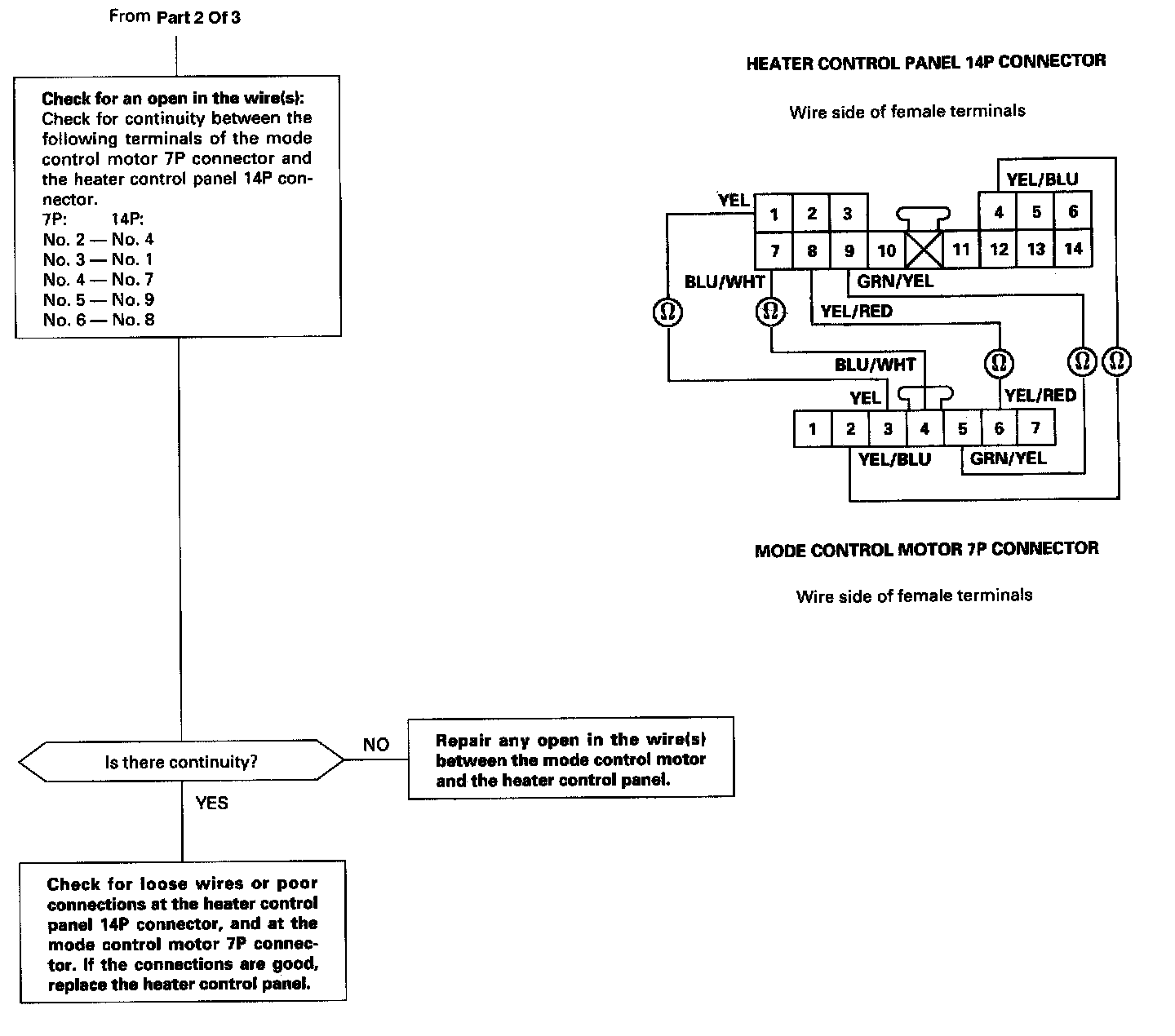

Part 3 Of 3:
