Civic Coupe L4-1.6L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Locations
>>
Connector Locations
Connector Locations

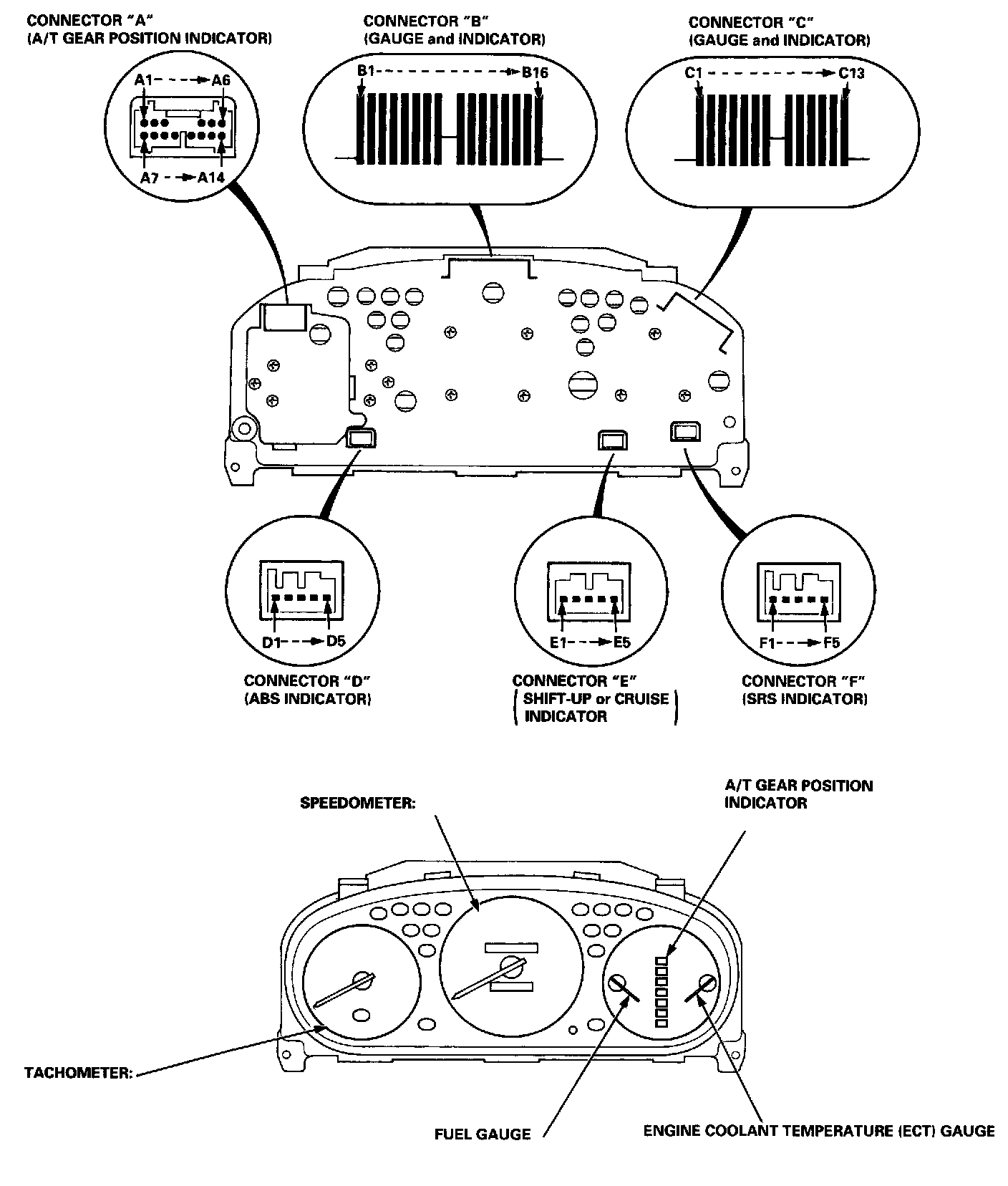

With tachometer

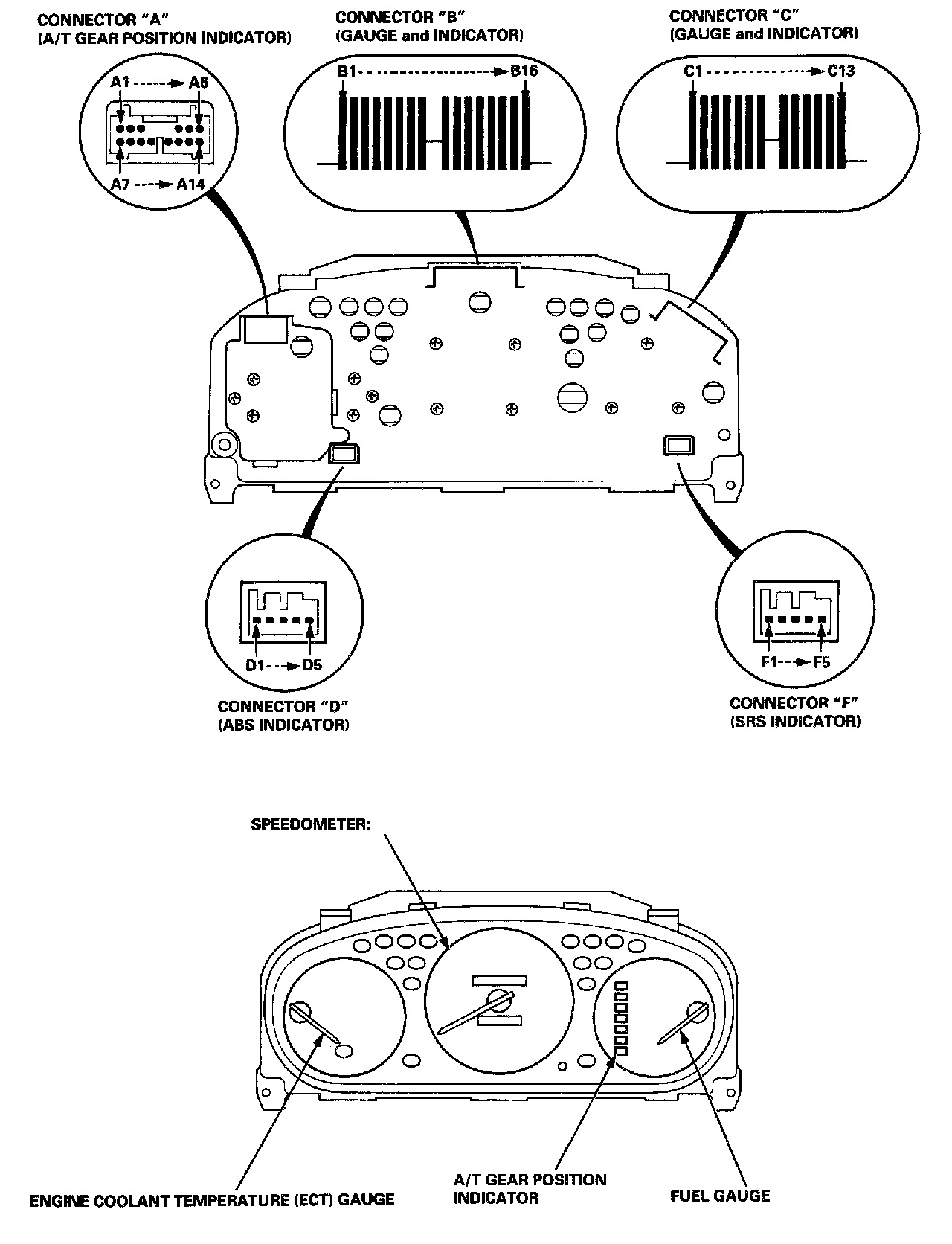

Without tachometer
