Cluster Disassembly




With Tachometer

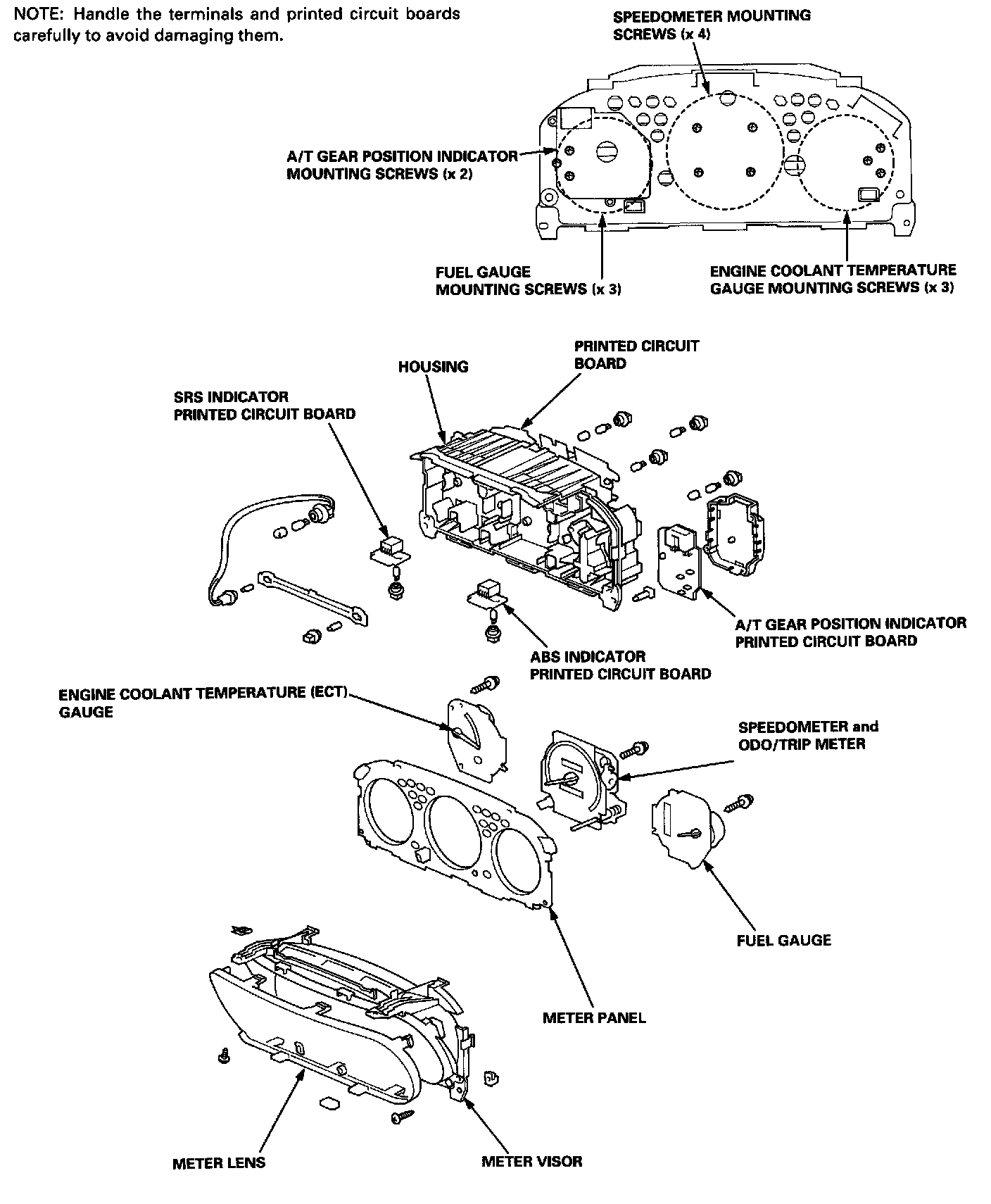

Without Tachometer

NOTE: Handle the terminals and printed circuit boards carefully to avoid damaging them.
