Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Civic Coupe L4-1.6L SOHC (16 Valve)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>

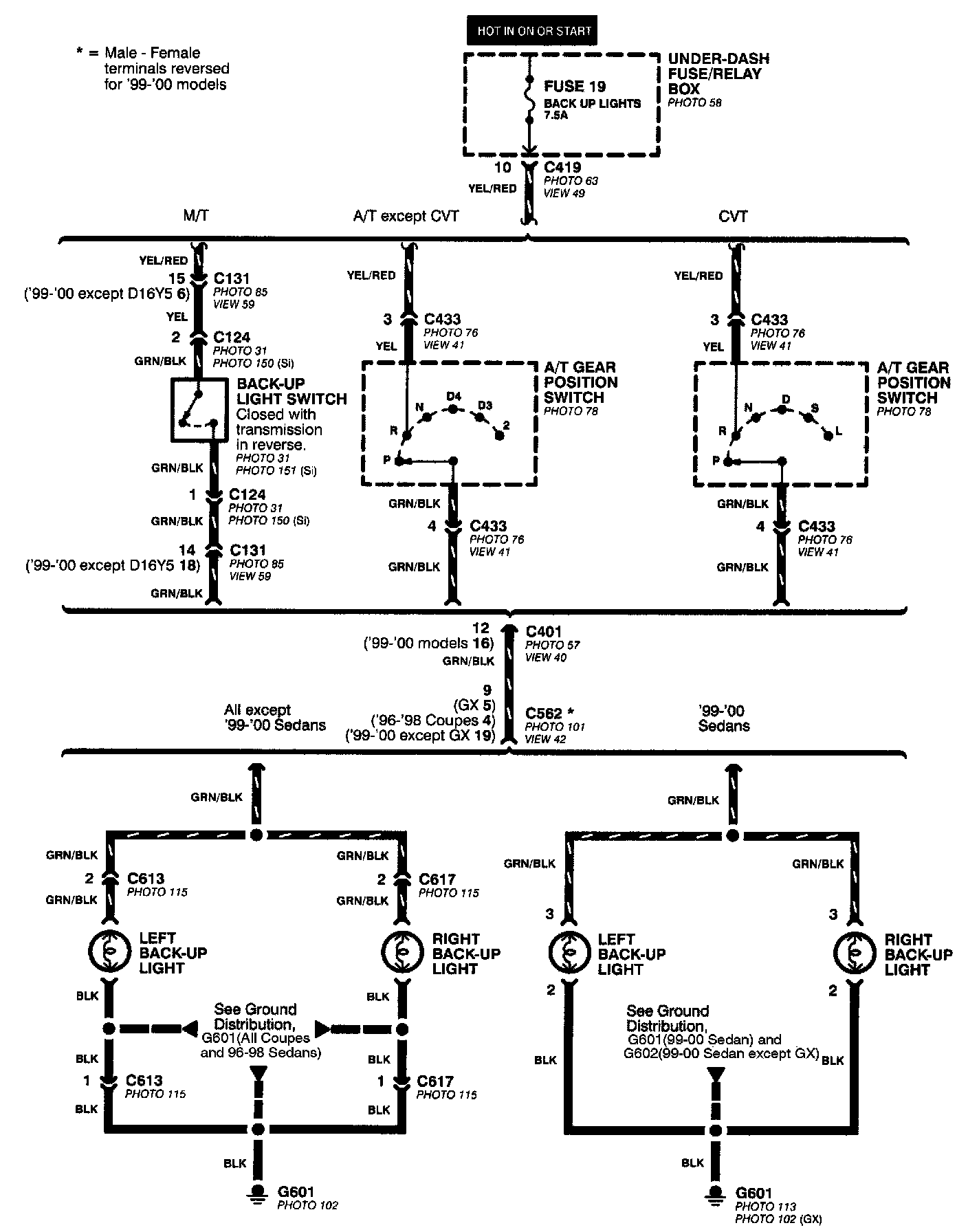

Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagrams
Wiring Diagrams
