Diesel Data: Automotive Repair

Rear Seat Belt Buckle

2 Door / 4 Door Coupe-Sedan:

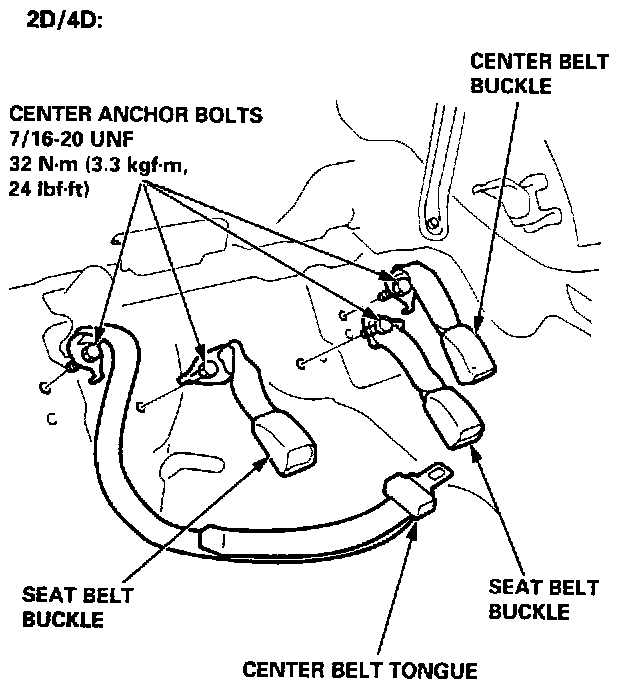

Seat Belt Buckle / Center Belt Tongue
1. Remove the rear seat cushion.

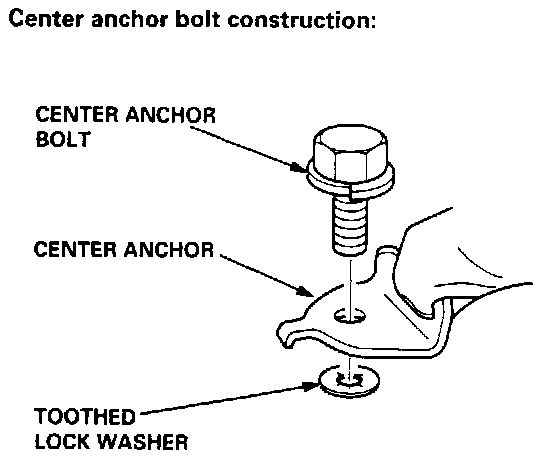

2. Remove the center anchor bolts, then remove the seat belt buckles and center belt tongue.
3. Installation is the reverse of the removal procedure.

NOTE: Before attaching the seat-back and seat cushion, make sure there are no twists or kinks in the center belts.
