Ring Gear Bearing Replacement

TOOL REQUIRED
- 07746-0010100 Attachment, 32 x 35 mm
- 07749-0010000 Driver
- Or Equivalent

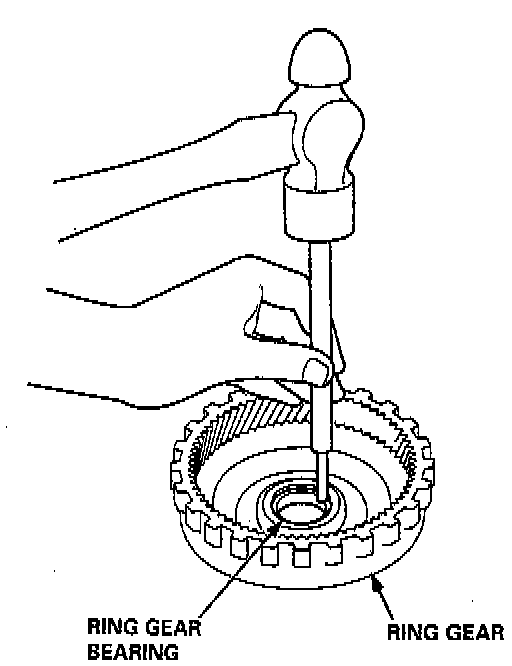

1. Remove the ring gear bearing.

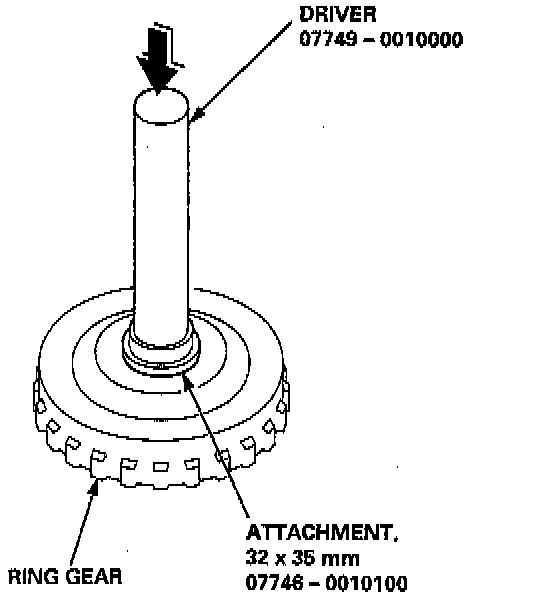

2. Install the new ring gear bearing until it bottoms in the ring gear, using the special tools as shown.
