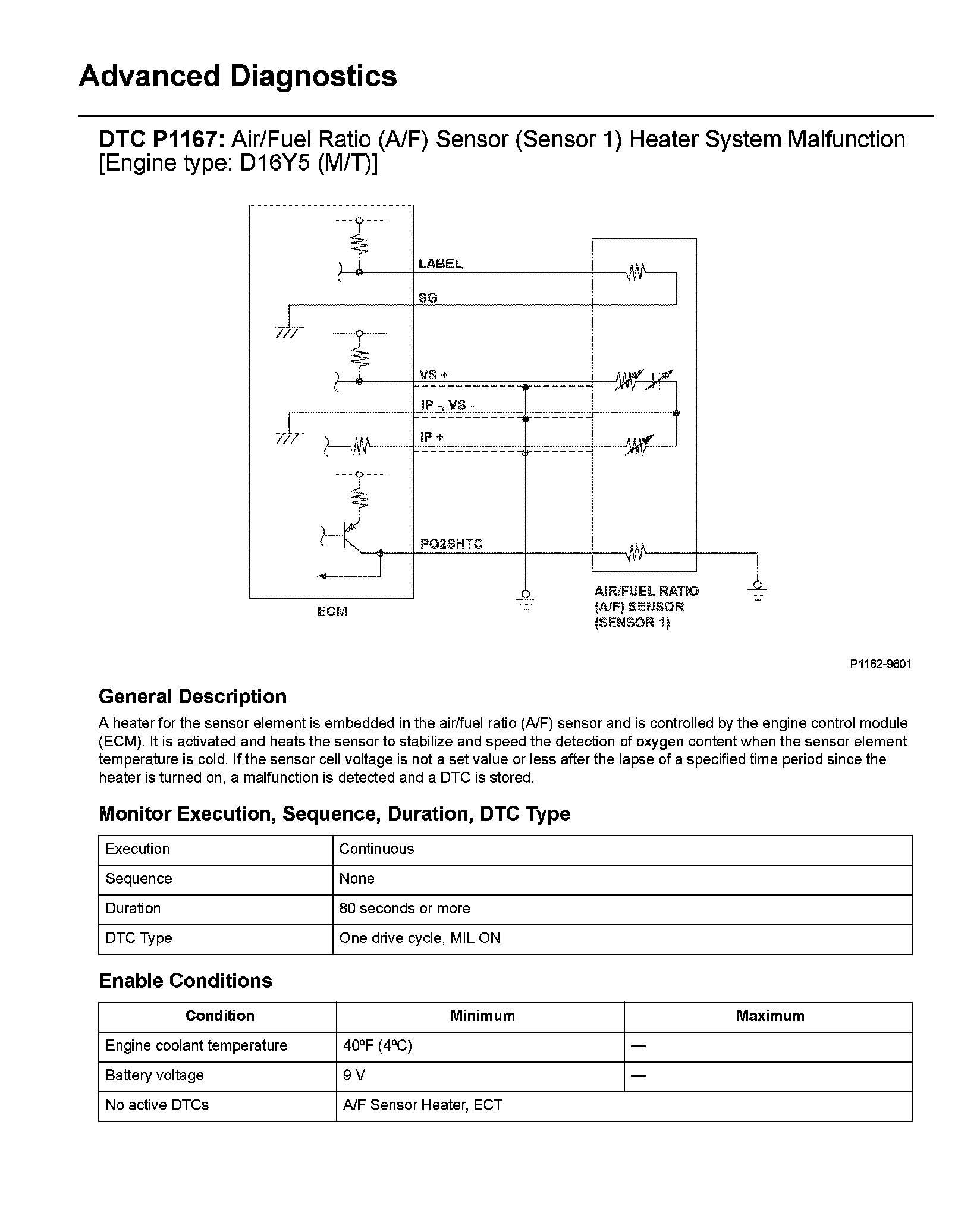

Heater System Malfunction

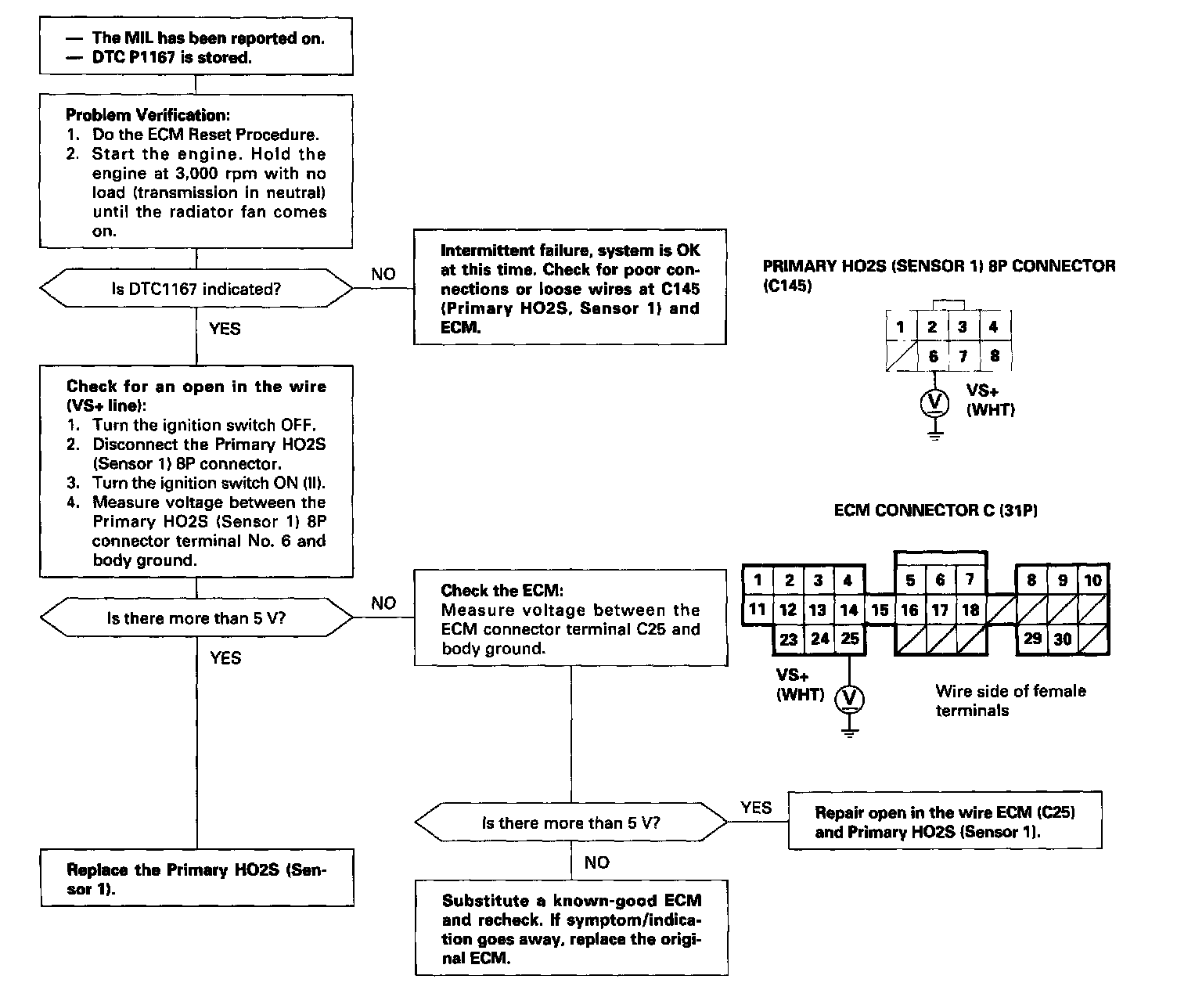

The scan tool indicates Diagnostic Trouble Code (DTC) P1167: A system malfunction in the Primary Heated Oxygen Sensor (Primary HO2S) (Sensor 1) Heater circuit.


Advanced Diagnostics

�
)�
@�
:

 �
 �
