Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Connection Schematic

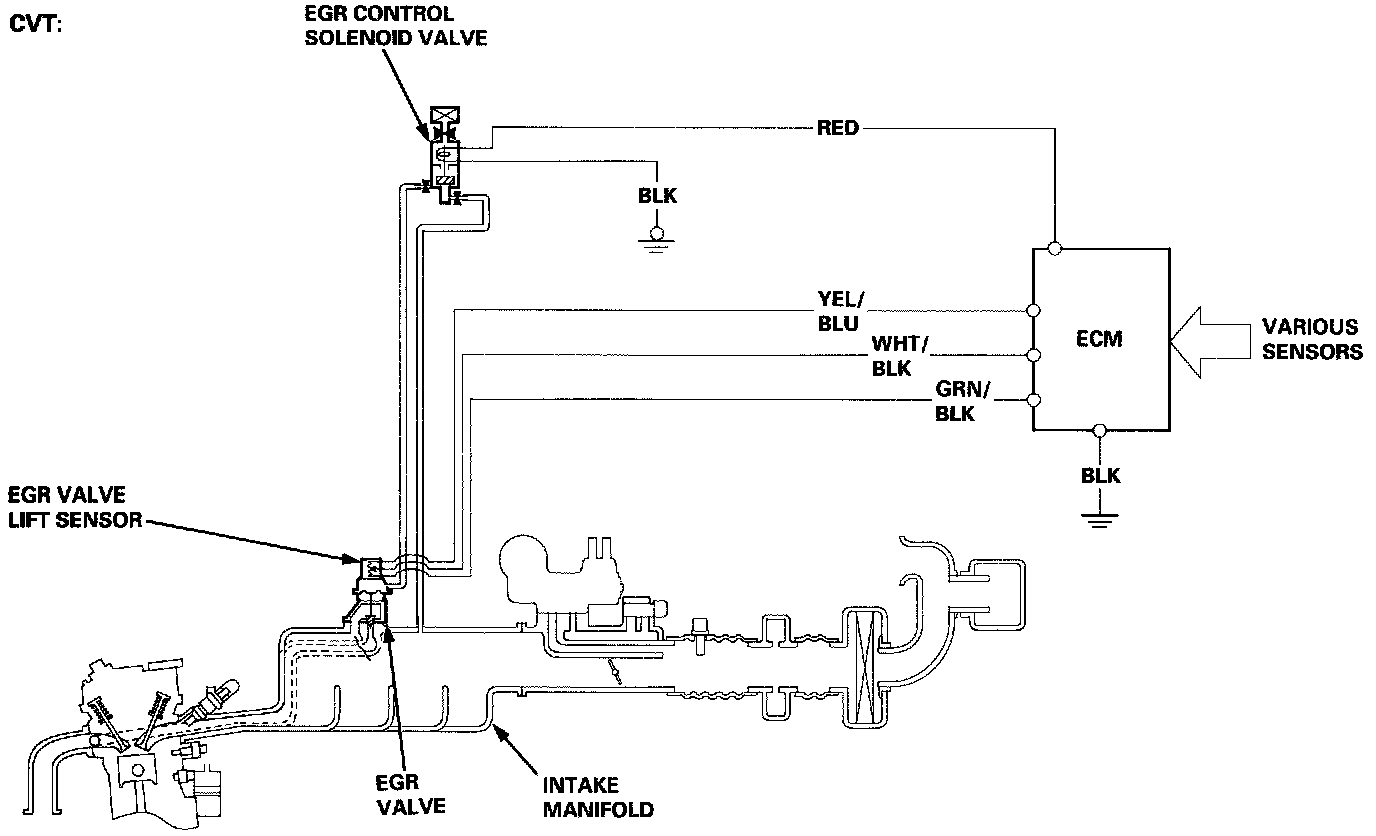

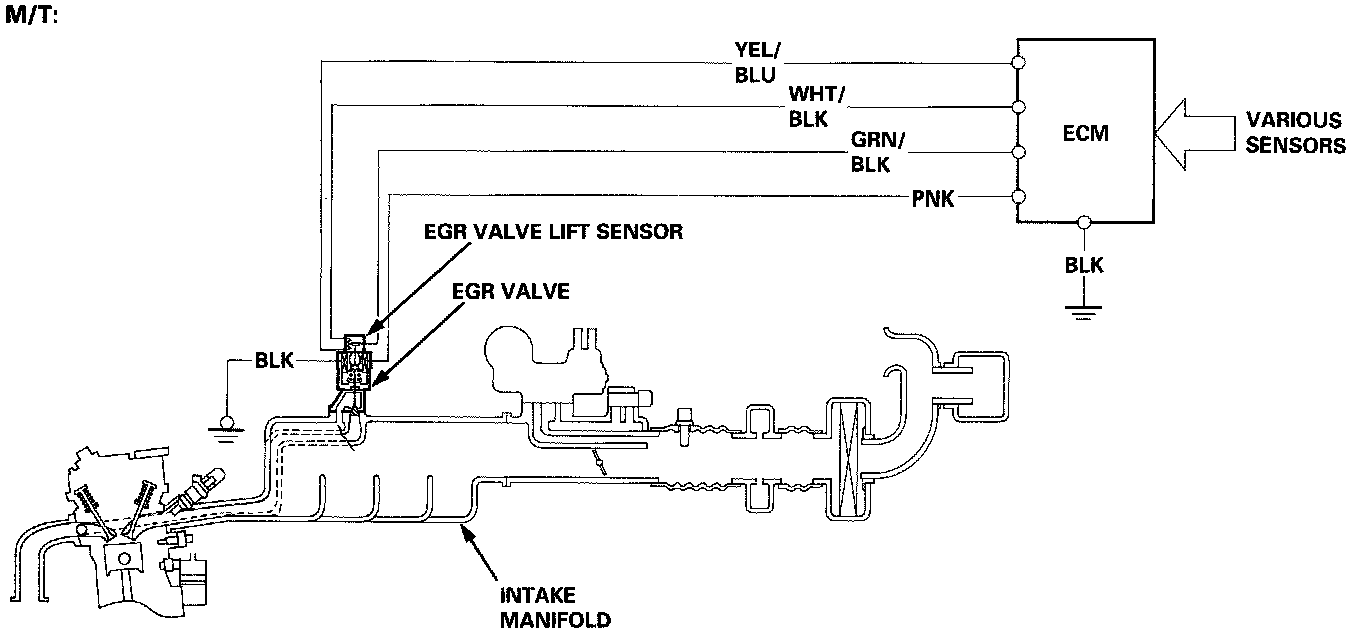

Connection Schematic
