Automatic Transaxle (CVT) Gear Position Signal
Automatic Transaxle (CVT) Gear Position Signal

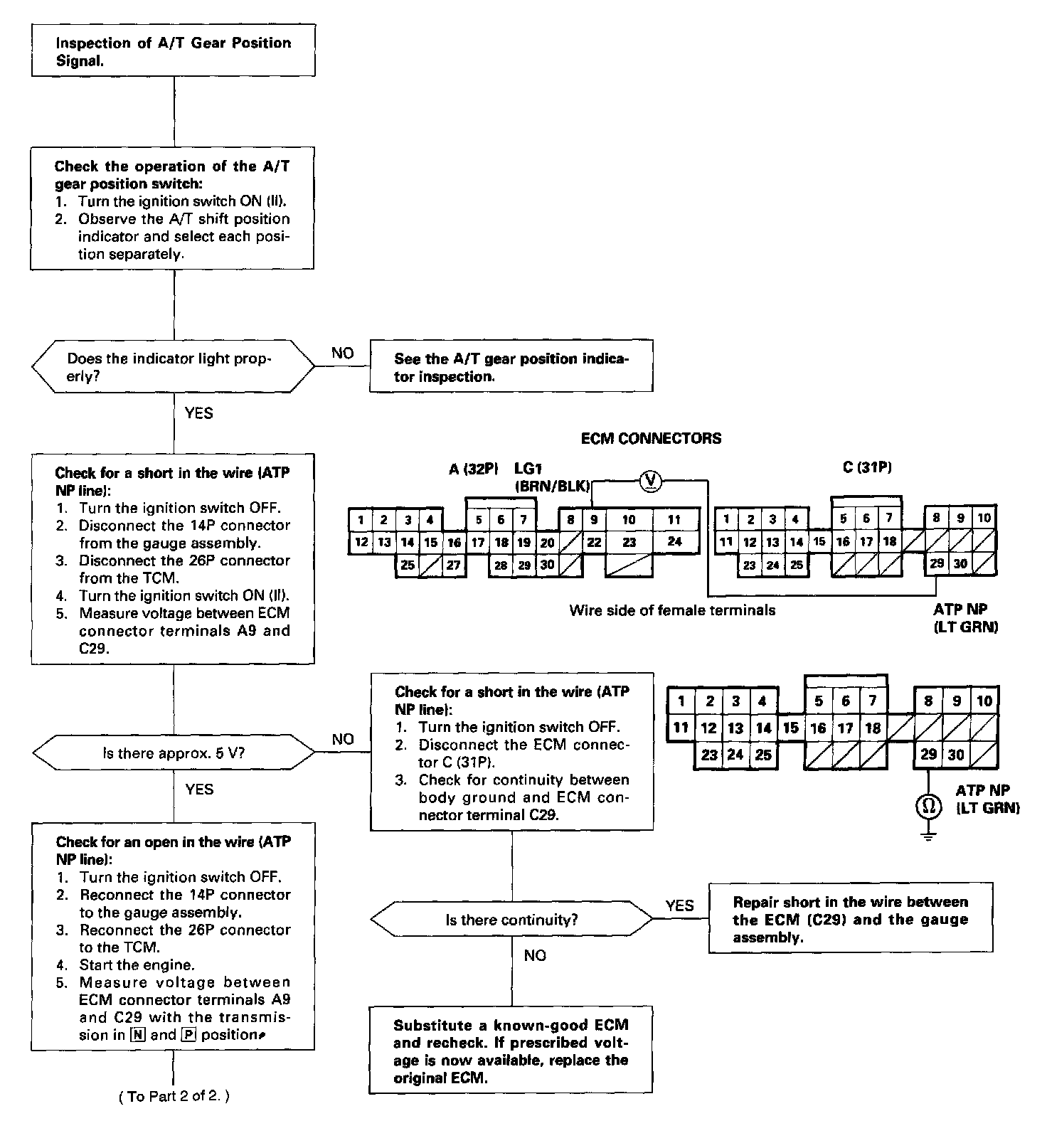

Part 1 Of 2:

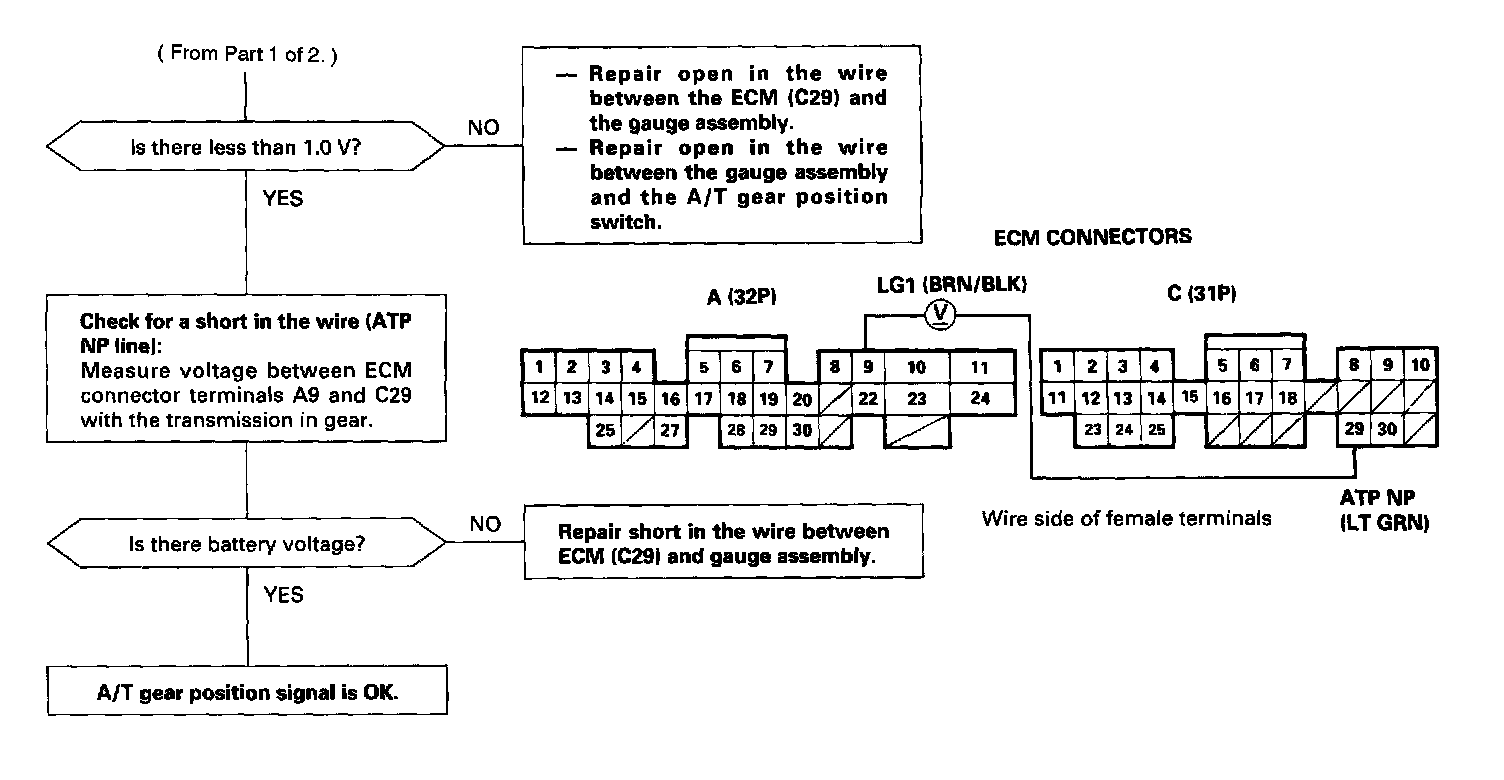

Part 2 Of 2:
This signals the
ECM
when the transmission is in [N] or [P] position.
