Fluid Line/Hose: Service and Repair

INSTALLATION

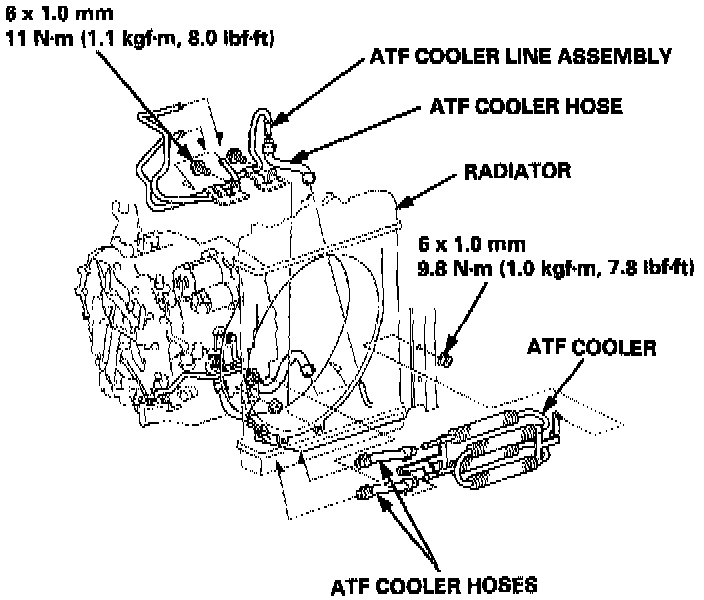

1. Install the Automatic Transmission Fluid (ATF) cooler, ATF cooler line assembly and the ATF cooler hoses.

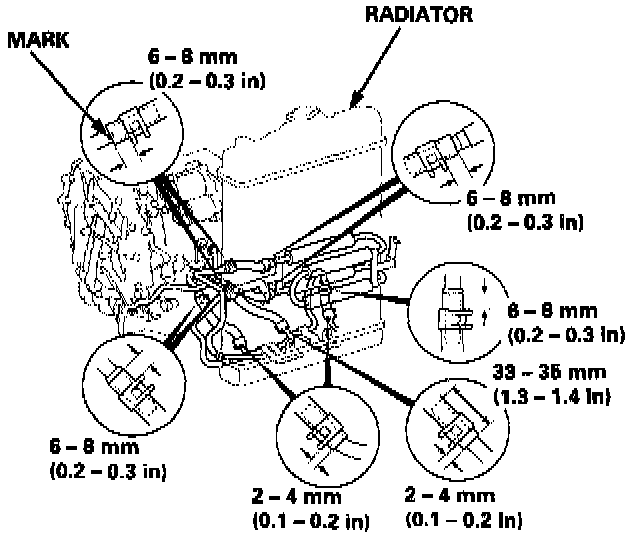

2. Connect the ATF cooler hoses to the ATF cooler lines and ATF cooler, and secure them with the clips as shown.
