Electrical Diagrams

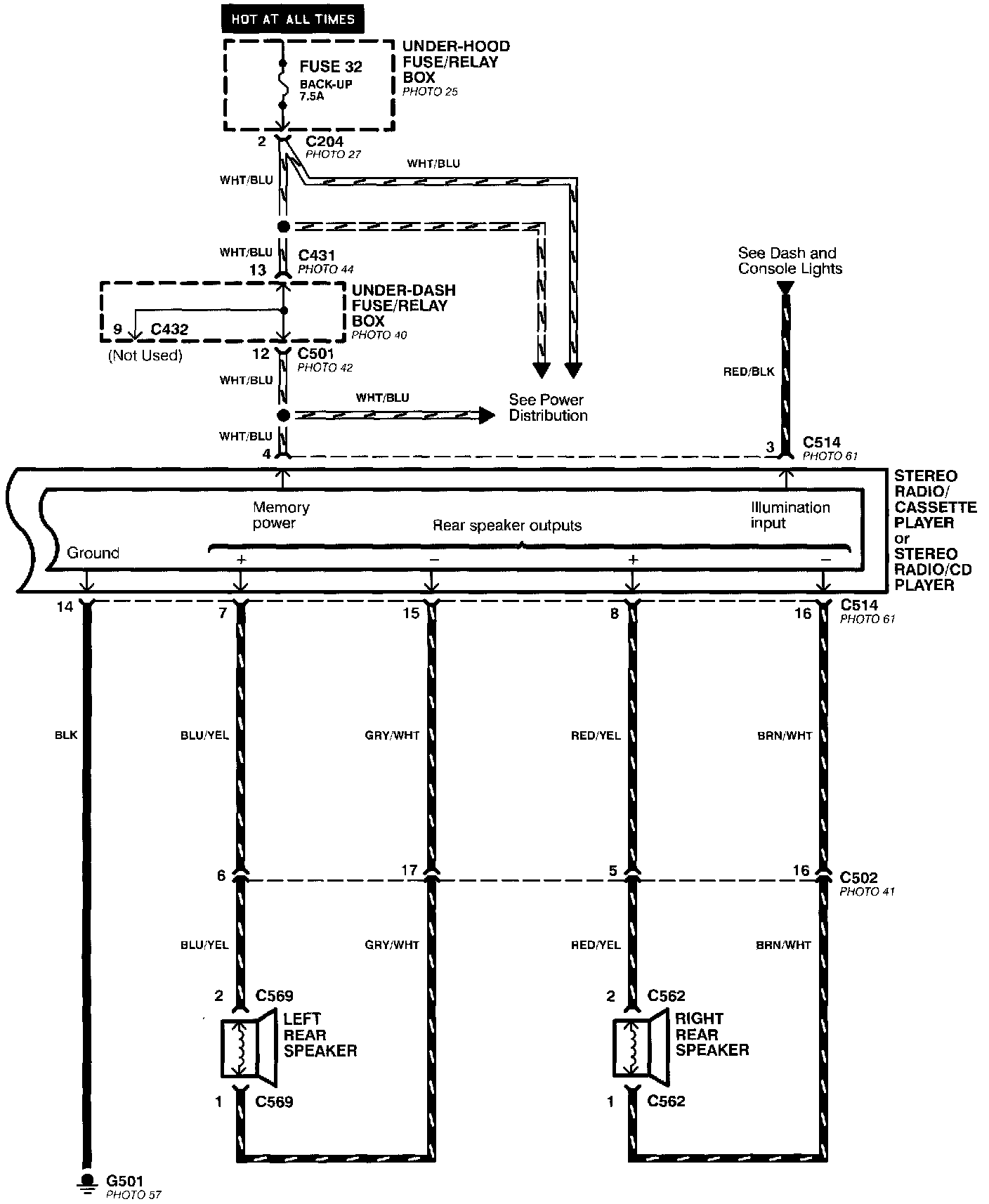

Stereo Sound System (Part 1 Of 4):

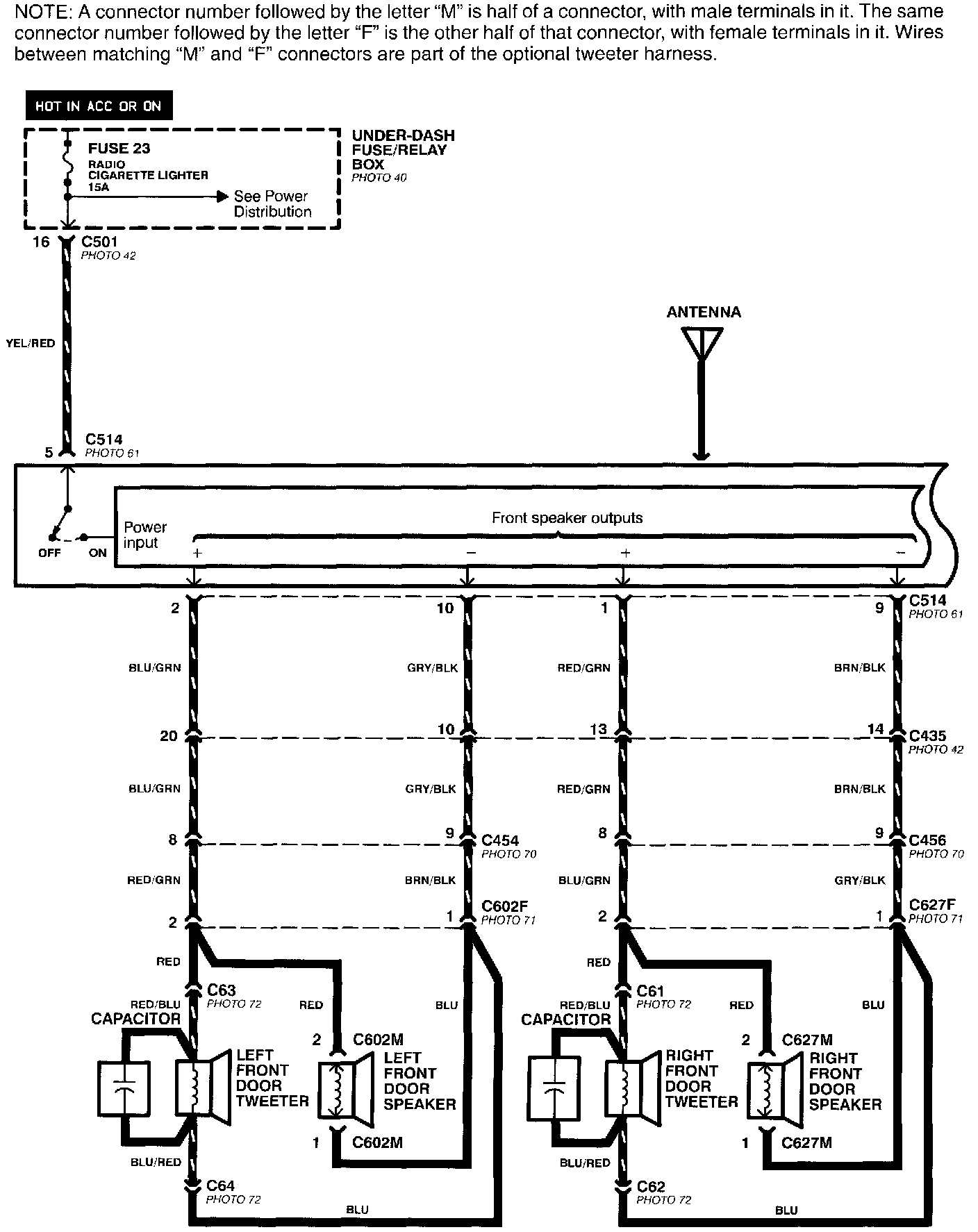

Stereo Sound System (Part 2 Of 4):

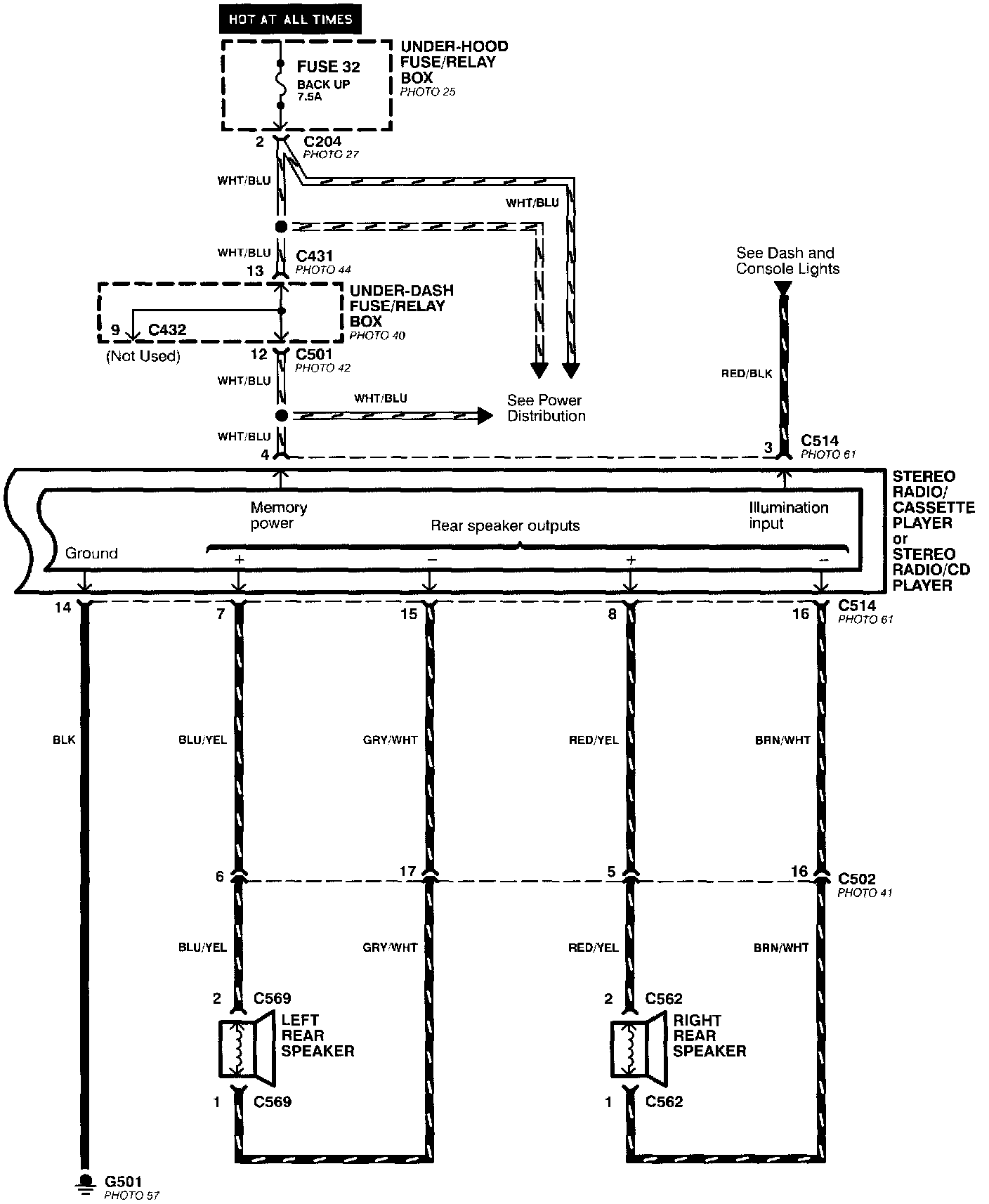

Stereo Sound System (Part 3 Of 4):

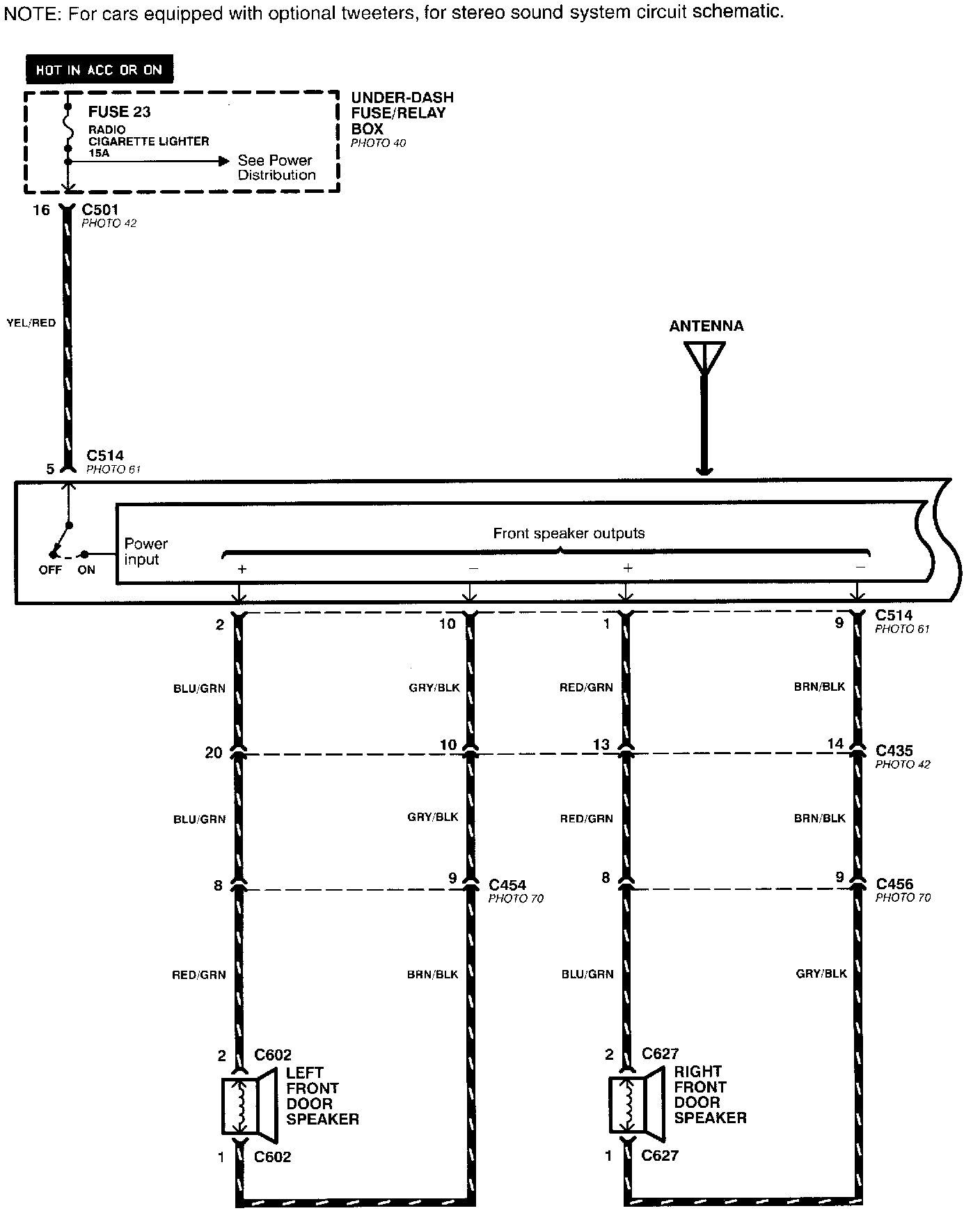

Stereo Sound System (Part 4 Of 4):
