Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Electrical Diagrams
>>
Electrical Diagrams
Electrical Diagrams

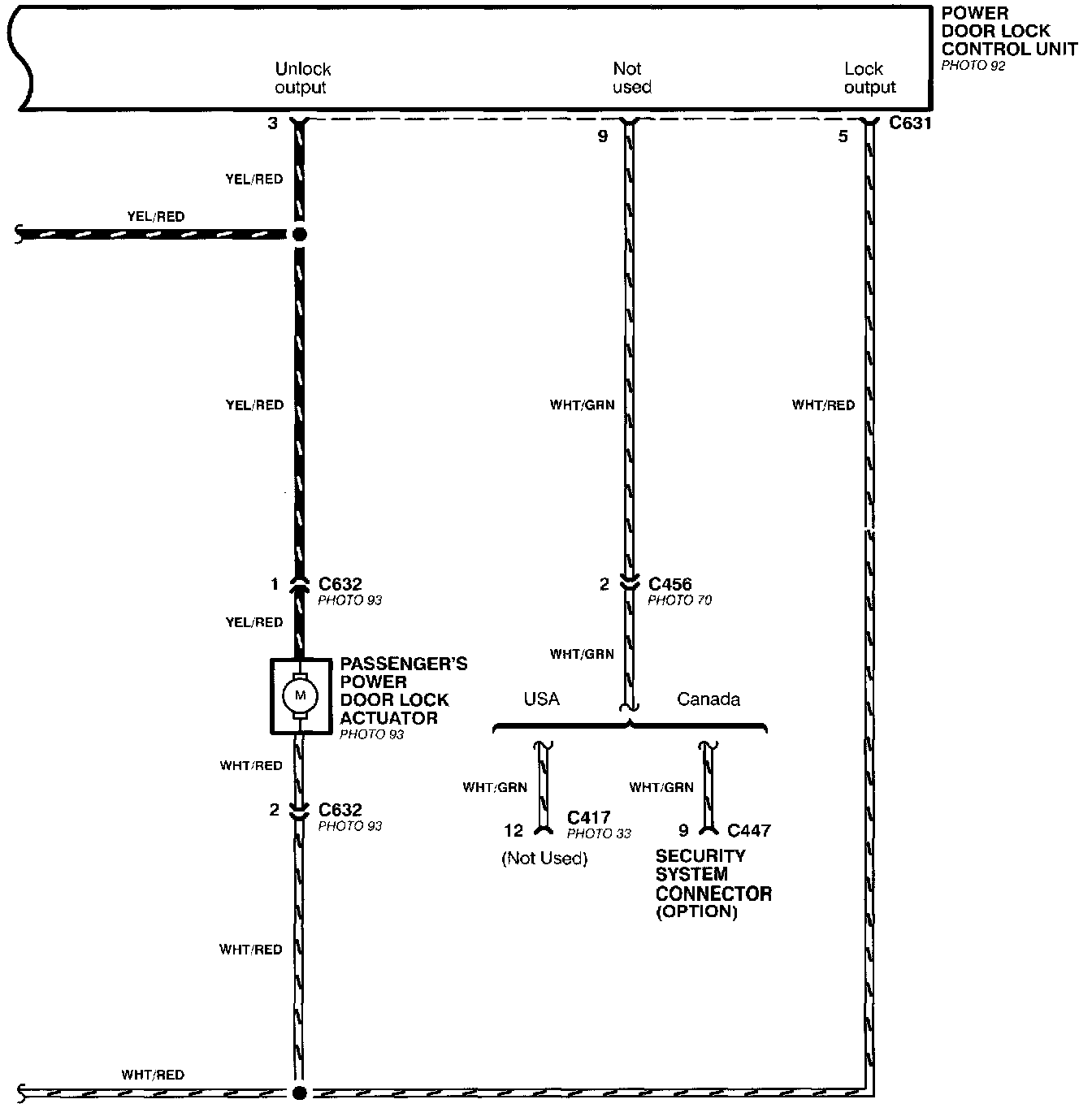

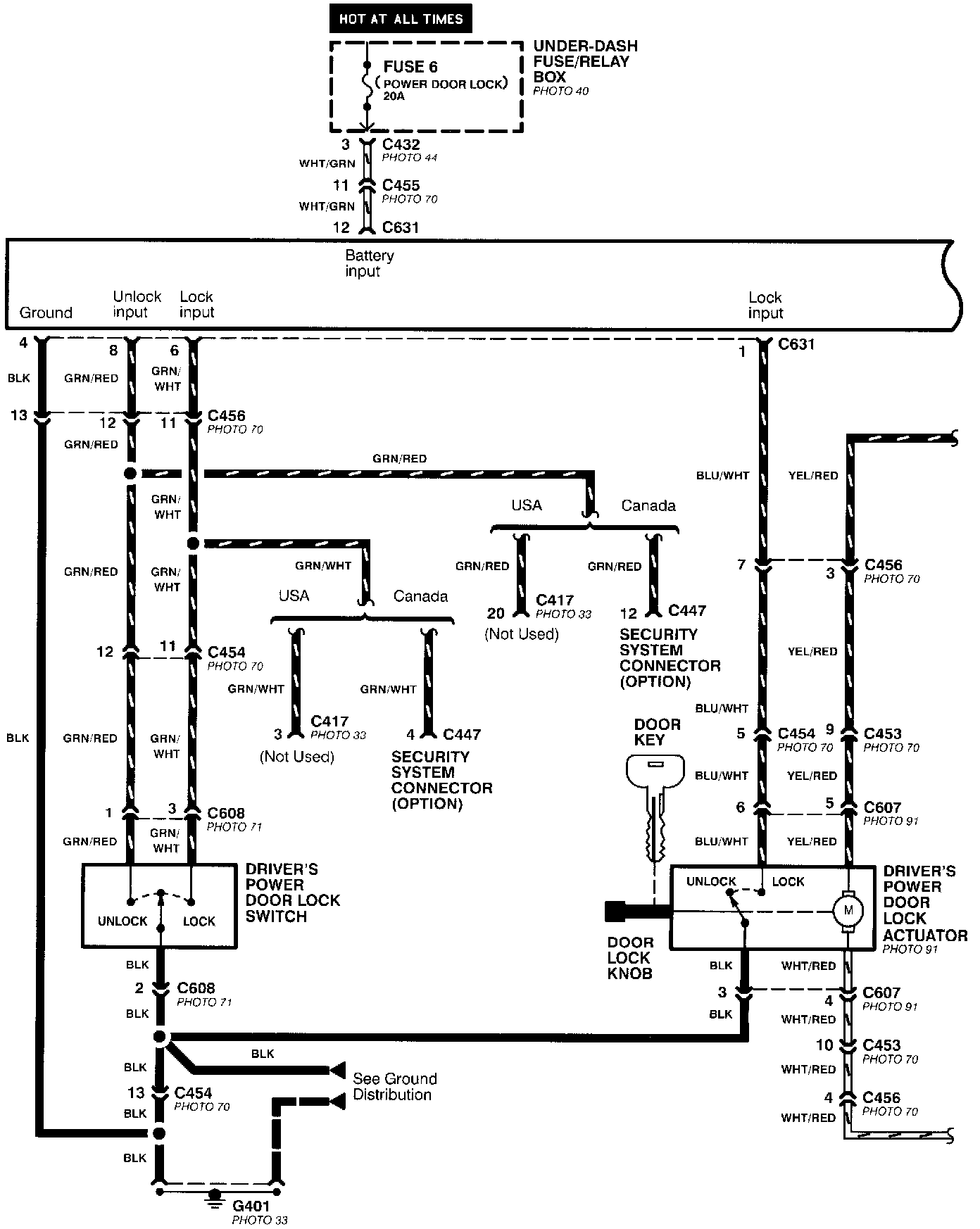

Power Door Locks (Part 1 Of 2):
Power Door Locks (Part 2 Of 2):
