A/T Gear Position Switch Test

1. Remove the console, then disconnect the 14P connector from the switch.

A/T Gear Position Switch Test:

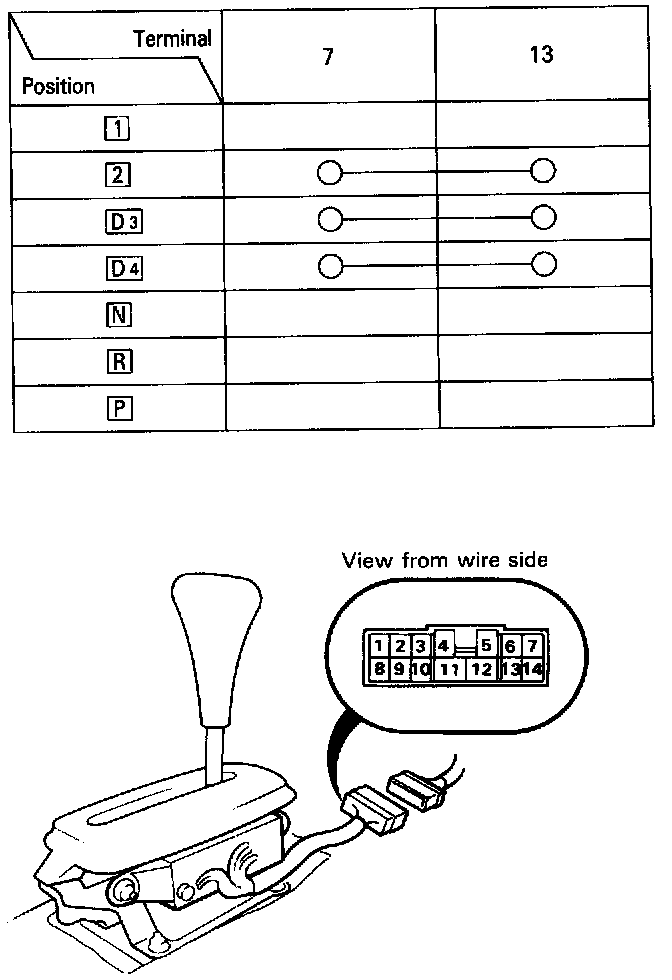

2. Check for continuity between the terminals in each switch position according to the table.
3. If necessary, replace the switch or adjust it.
