Honda
>>
1996
>>
Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
System Diagram

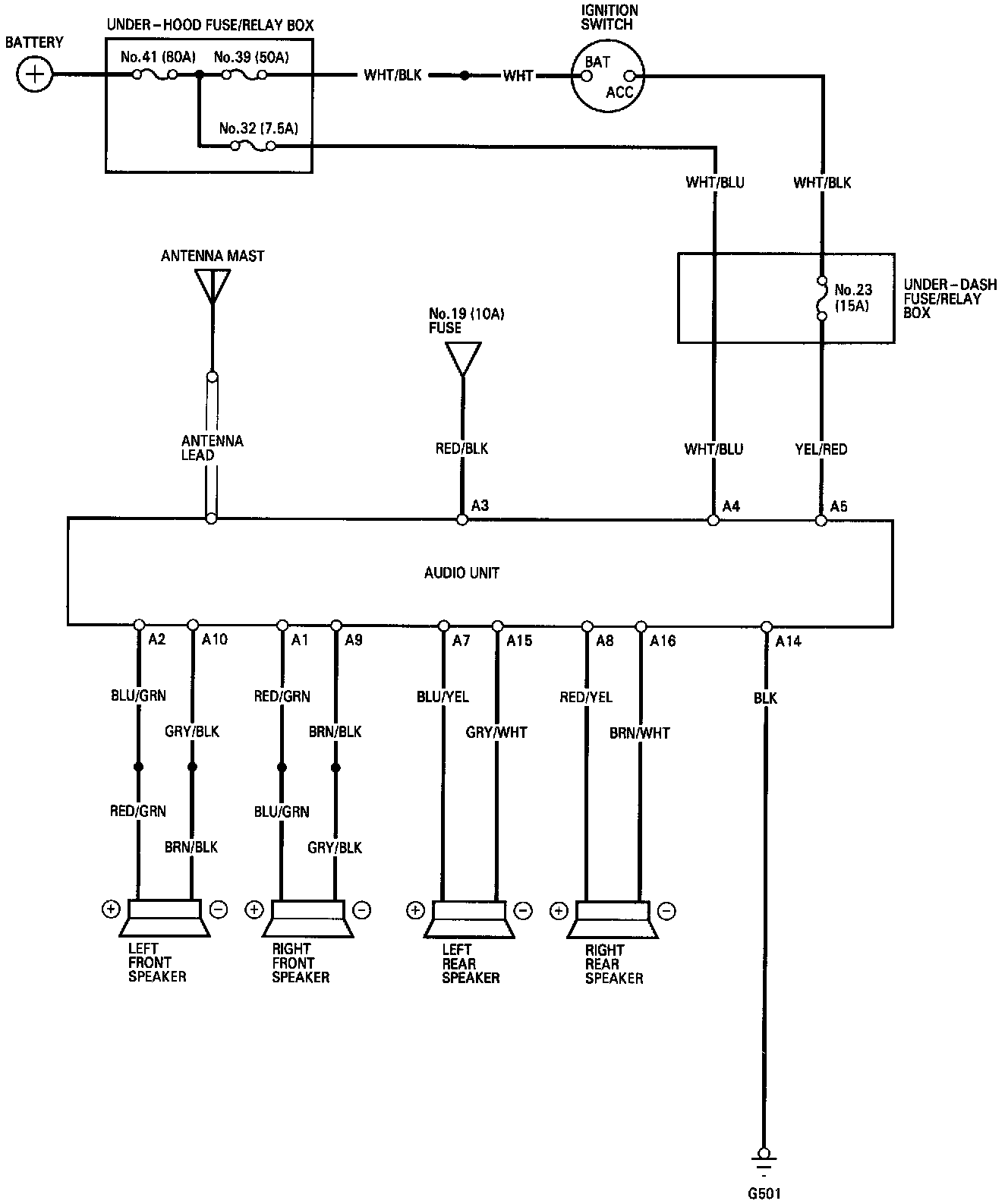

Stereo Sound System-Circuit Diagram:
