Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
>>
Malfunction Lamp / Indicator, Air Bag
Malfunction Lamp / Indicator, Air Bag

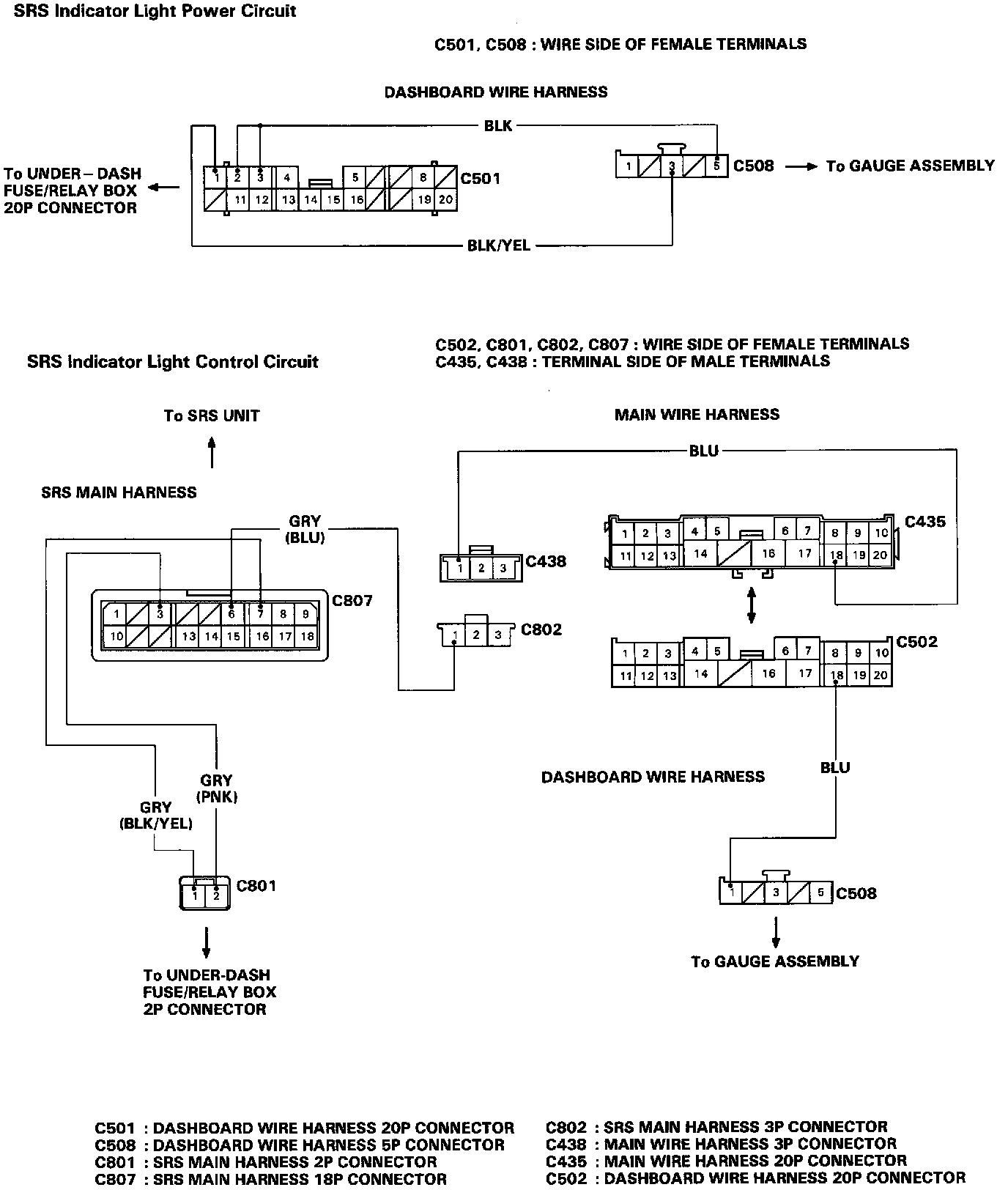

SRS Indicator Light Wire Connections:
