Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
Heated Glass Element Relay
Heated Glass Element Relay

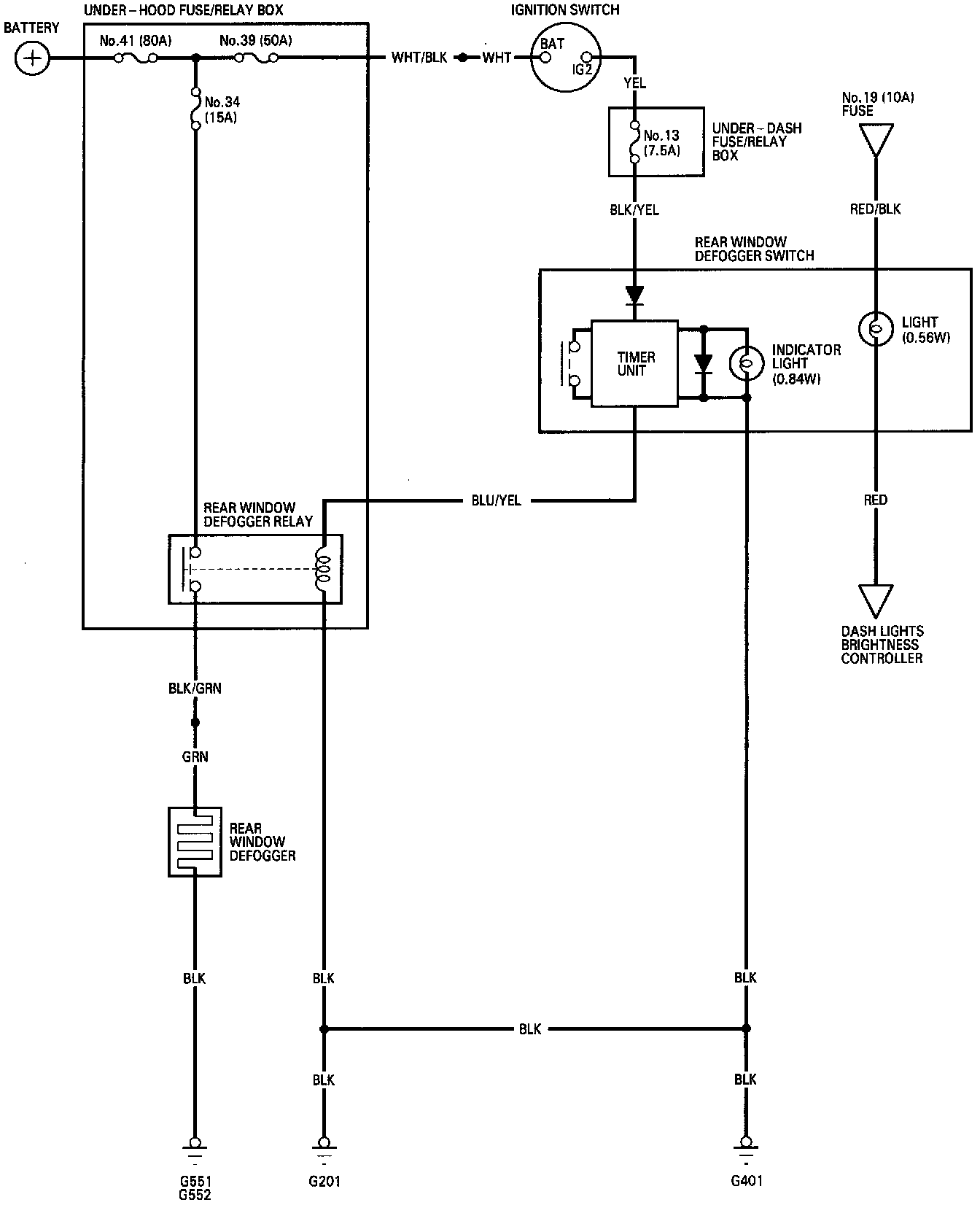

Rear Window Defogger-Circuit Diagram:
