A/C Compressor Controls

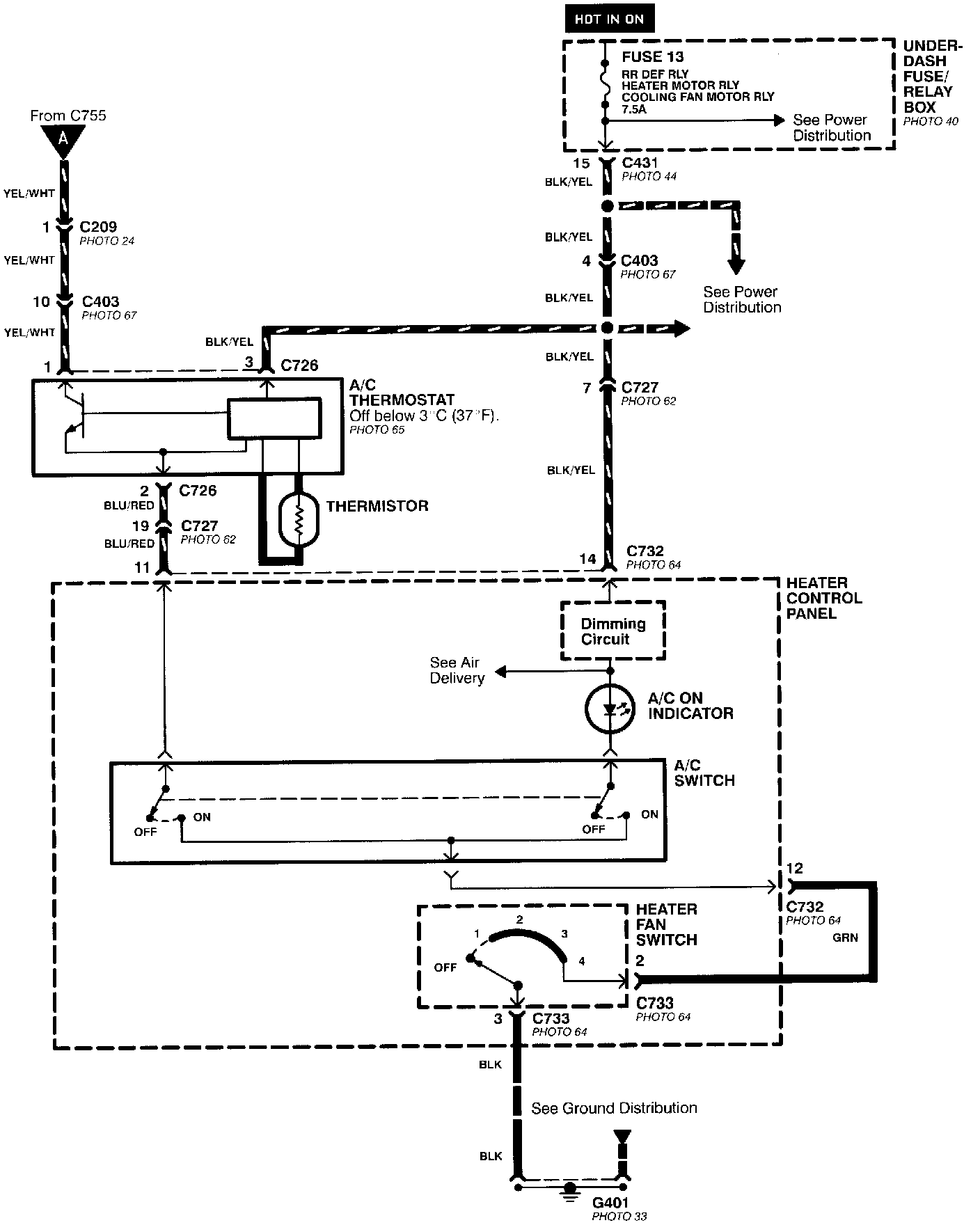

A/C Compressor Controls (Part 1 Of 2):

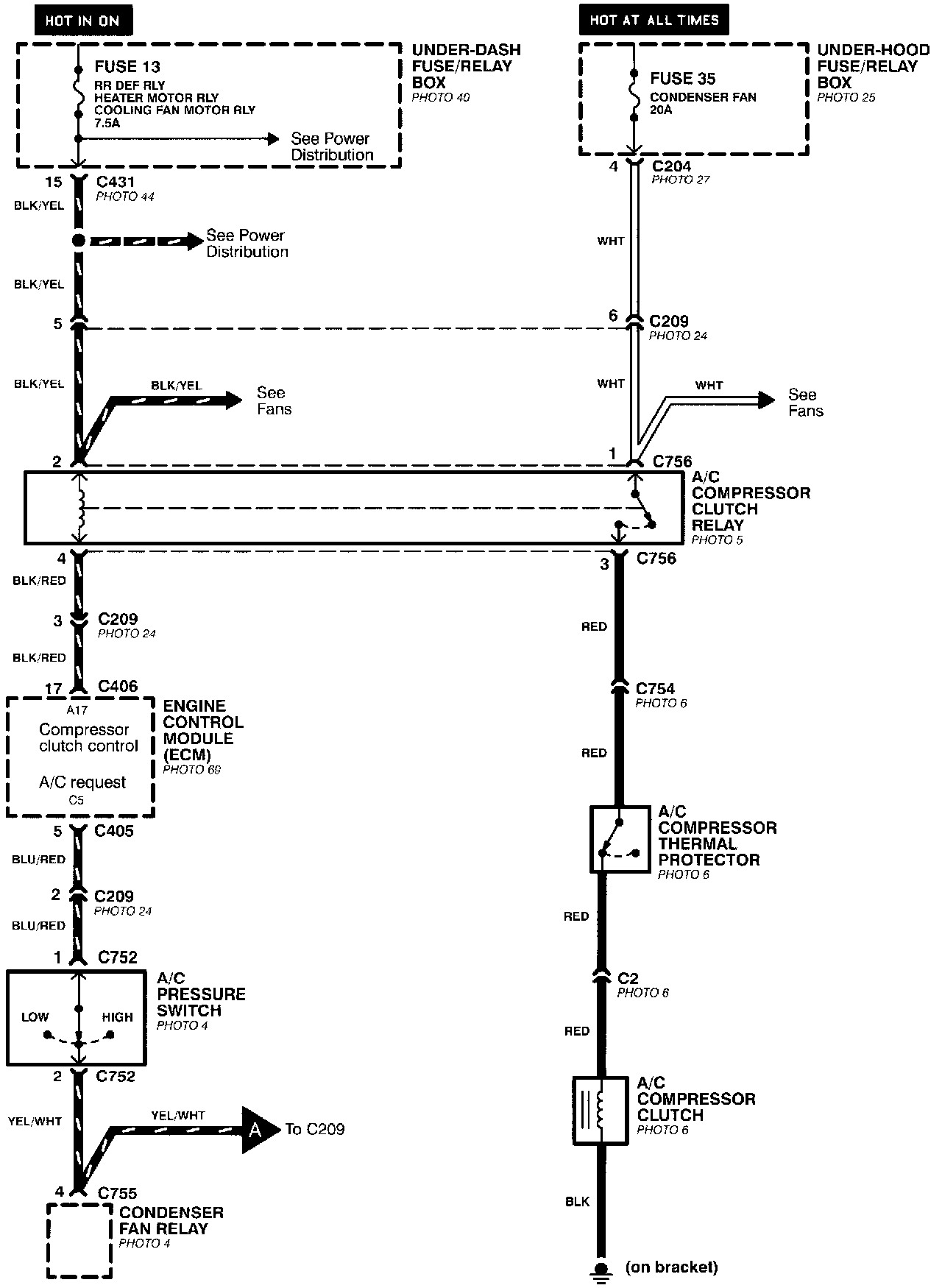

A/C Compressor Controls (Part 2 Of 2):
