Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Roof Unlatched Indicator
Roof Unlatched Indicator

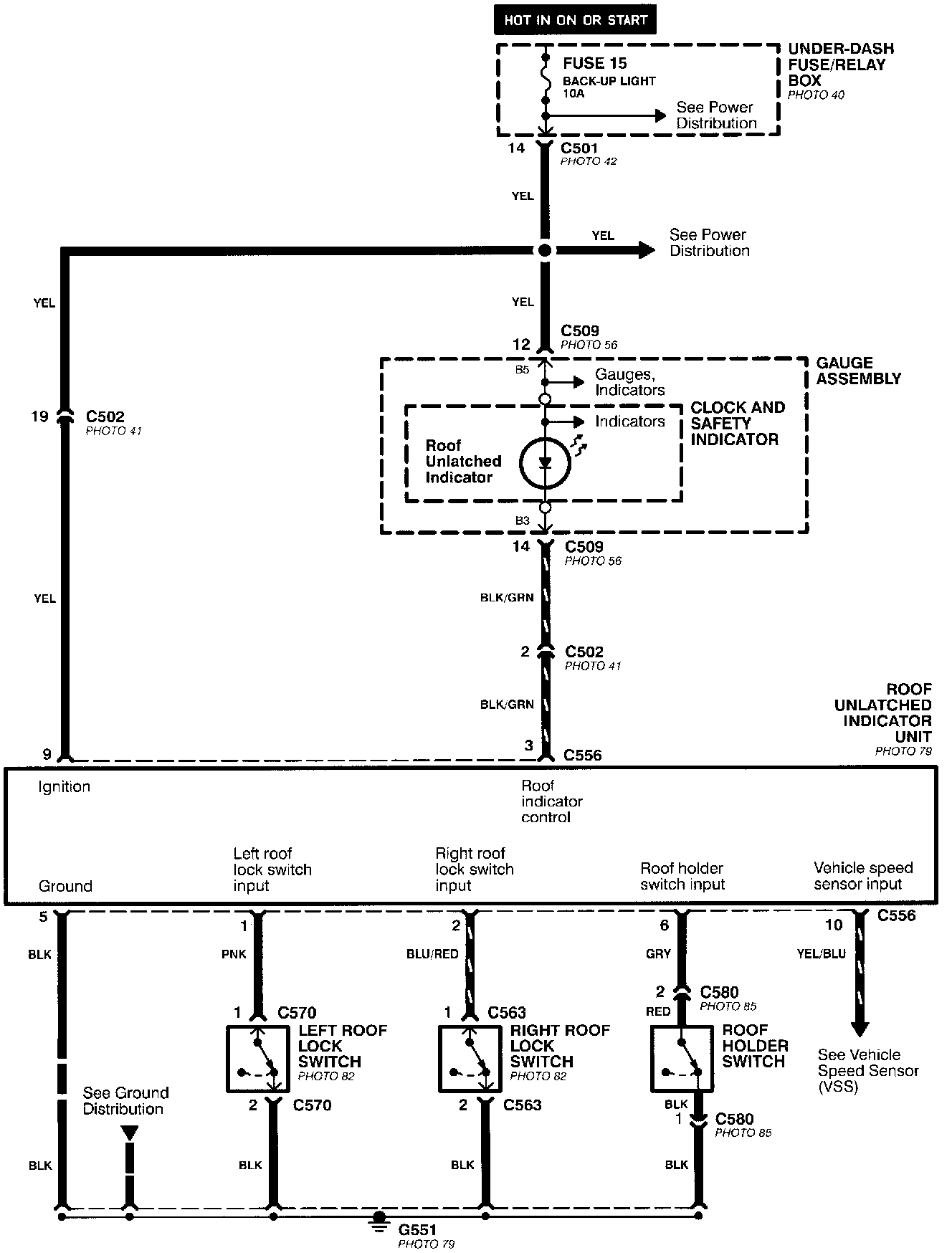

Roof Unlatched Indicator System:
