Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Backup Lamp
>>
Wiring Diagrams
Wiring Diagrams

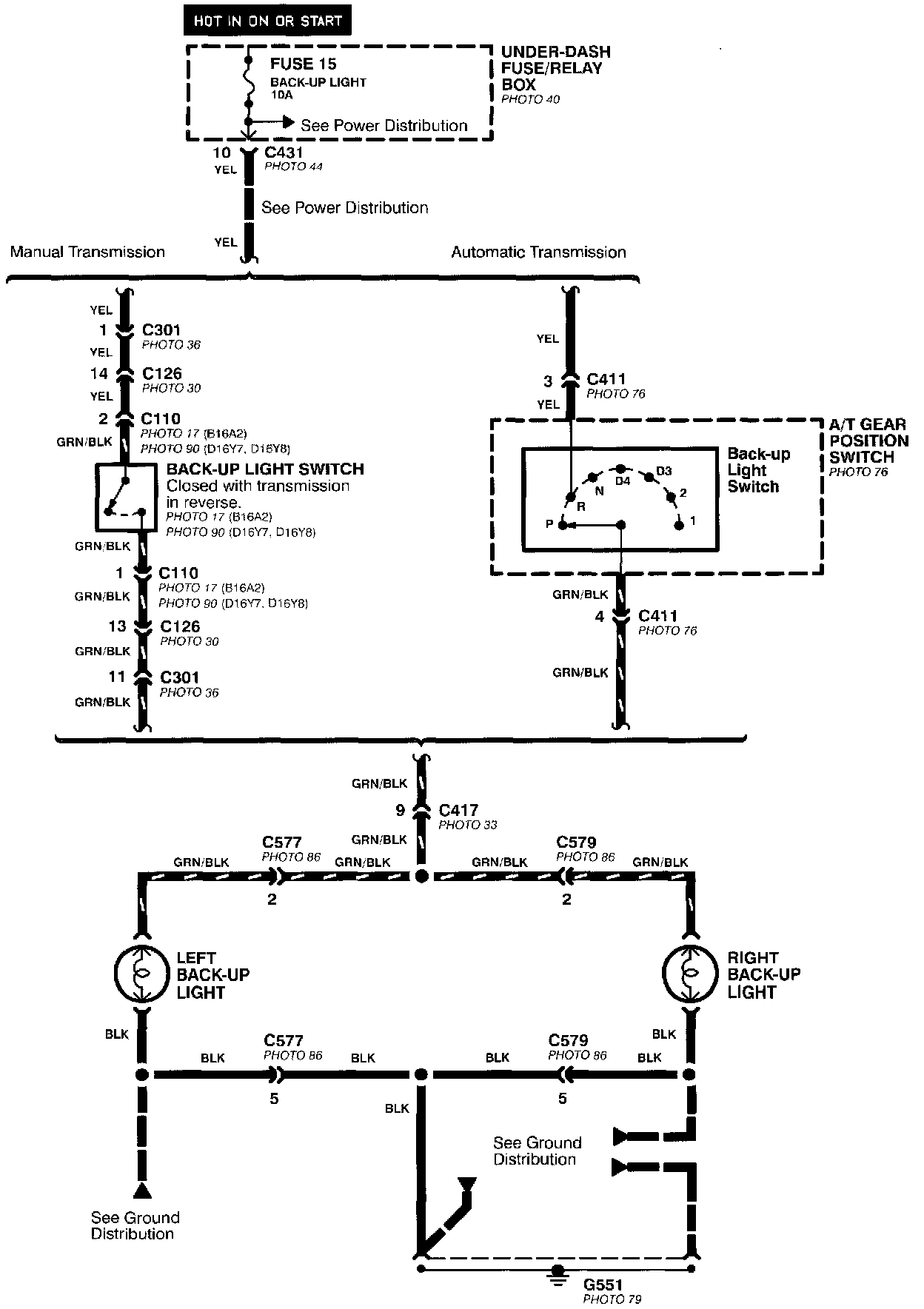

Back-up Lights:
