Home >> Honda >> 1996 >> Del Sol L4-1.6L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Cargo Lamp

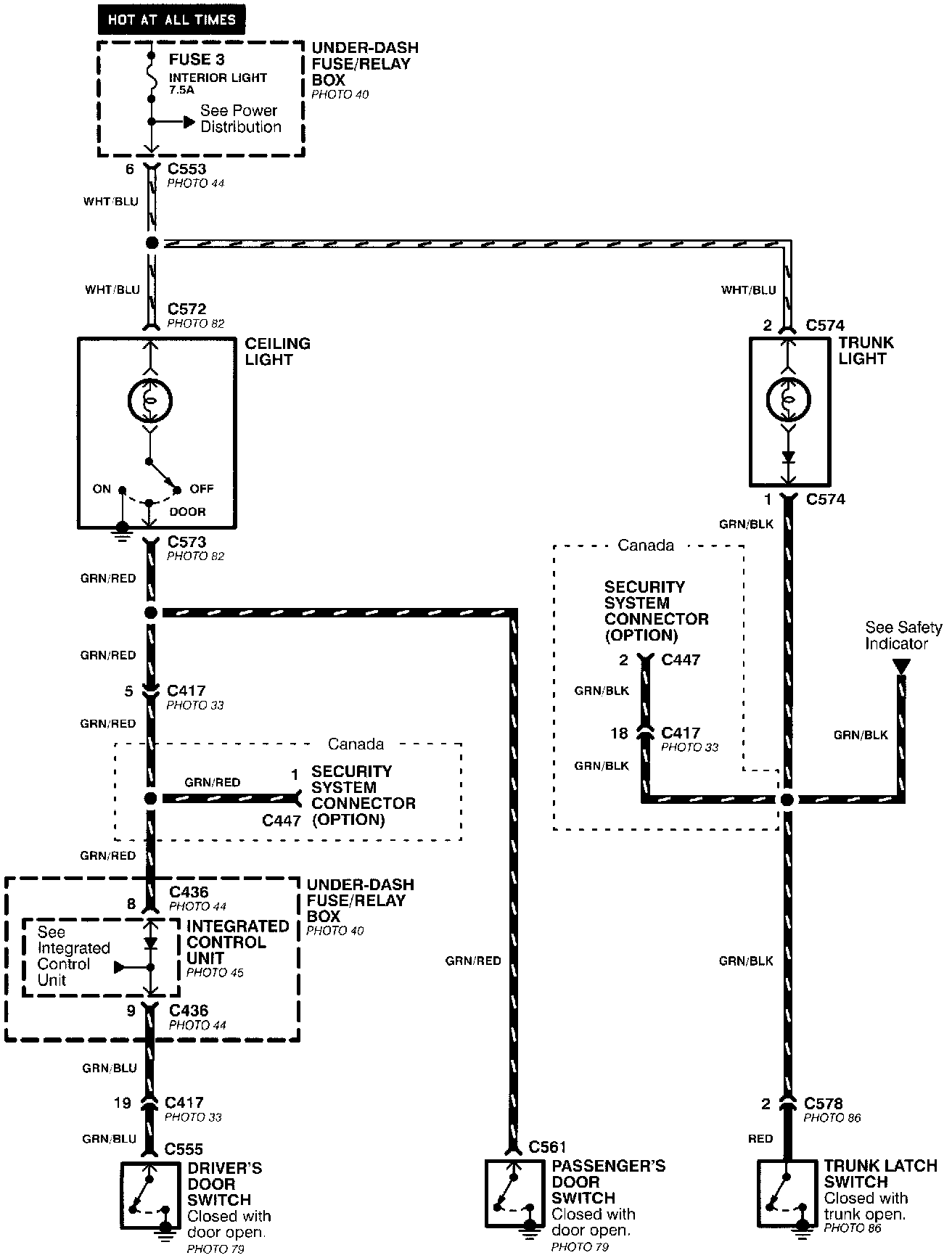

Cargo Lamp

Ceiling And Trunk Lights:
