Home >> Honda >> 1996 >> Del Sol L4-1.6L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Center Mounted Brake Lamp

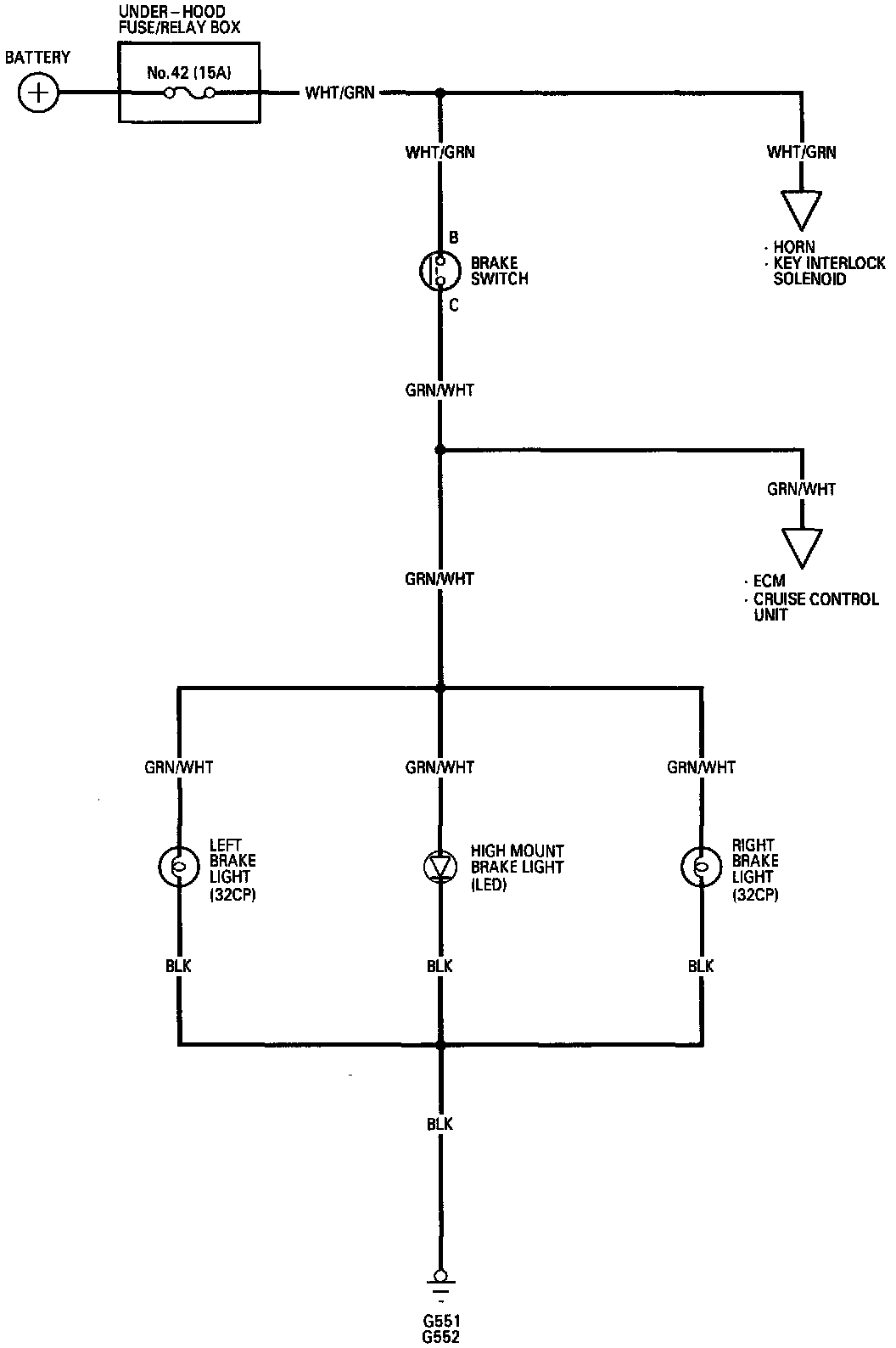

Center Mounted Brake Lamp

Brake/High Mount Brake Lights:
