Home >> Honda >> 1996 >> Del Sol L4-1.6L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Parking Lamp

Parking Lamp

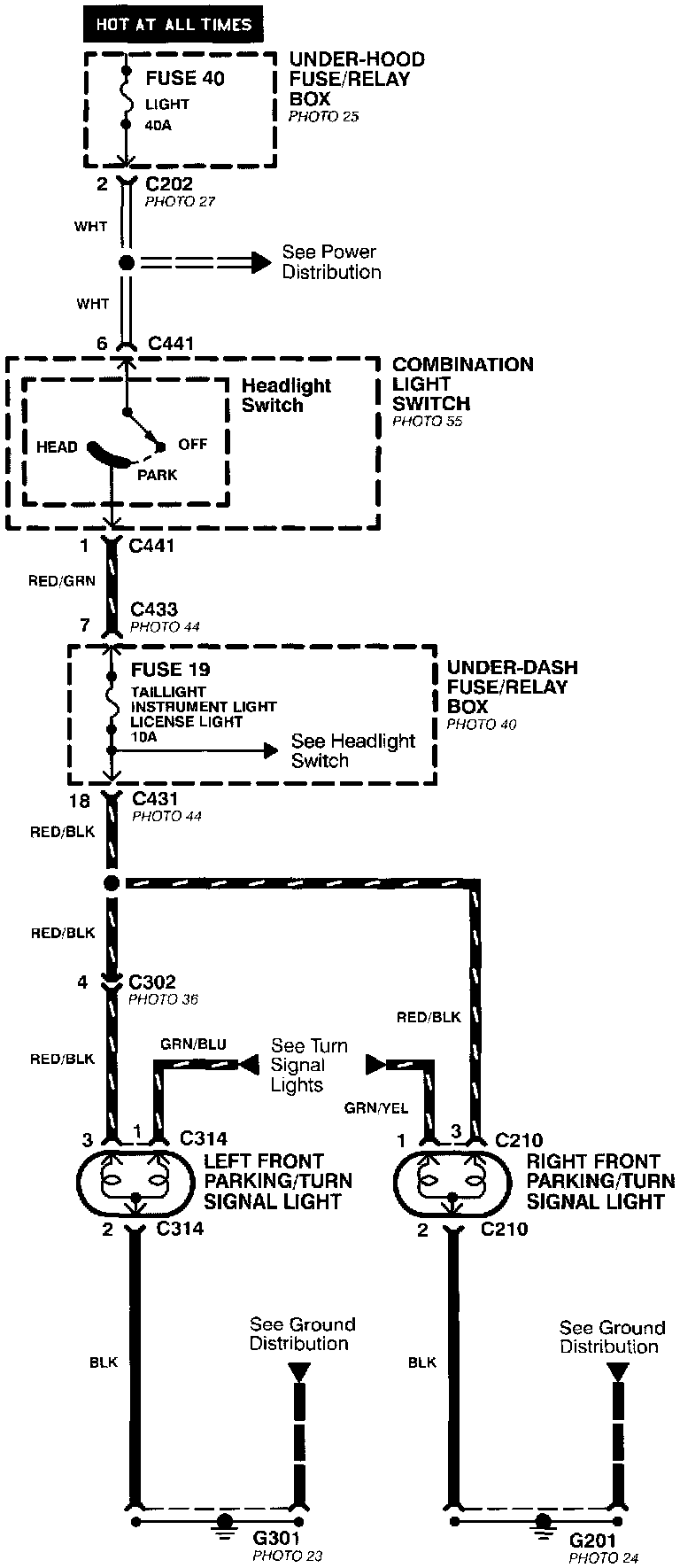

Parking Lights:

Taillights, Rear Parking, And License Lights:
