Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

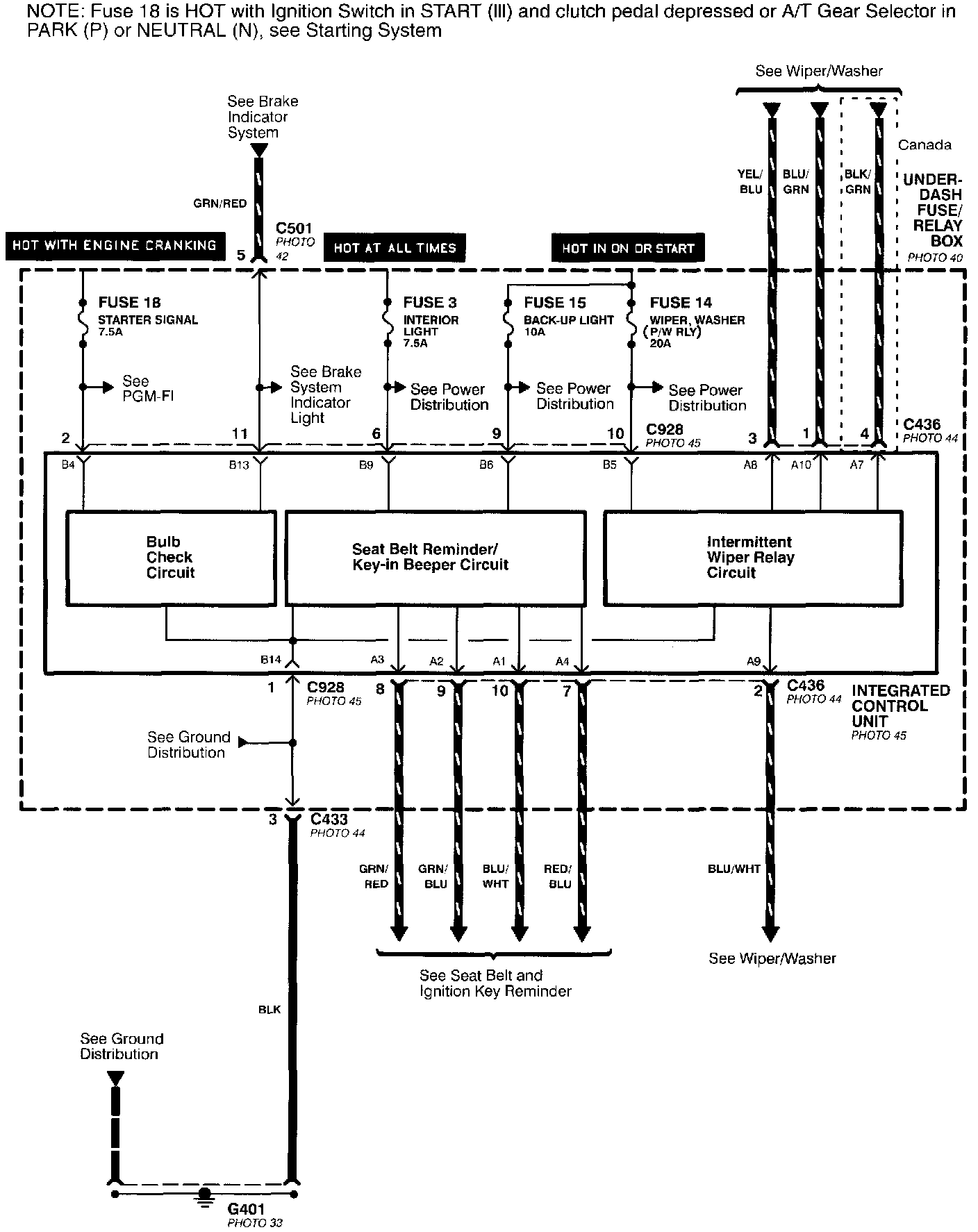

Integrated Control Unit
Integrated Control Unit
Integrate Control Unit:
