Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Heater sub-harness A
Heater sub-harness A

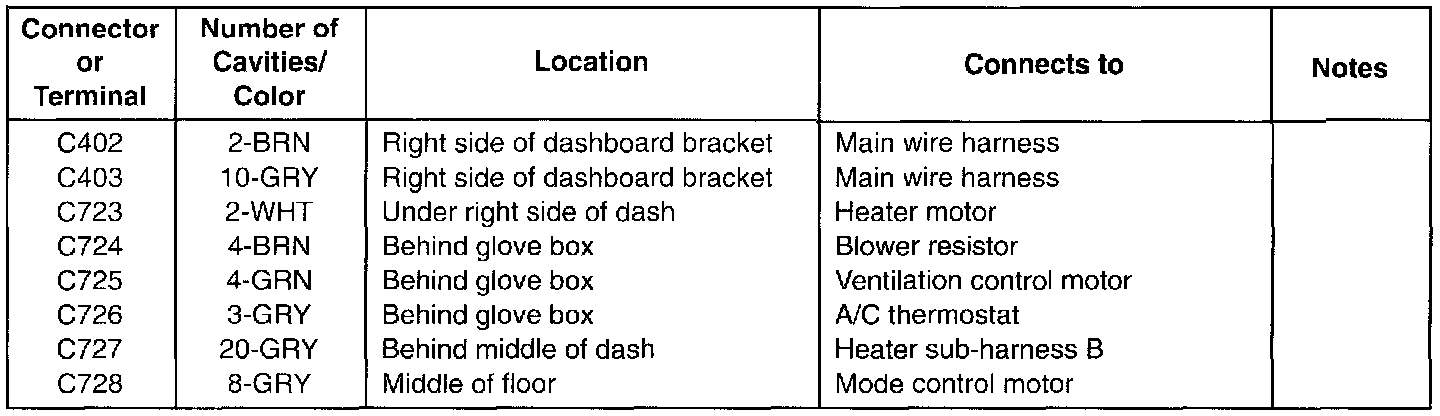

Heater Sub-harness A:
Heater Sub-Harness A & B:
