Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

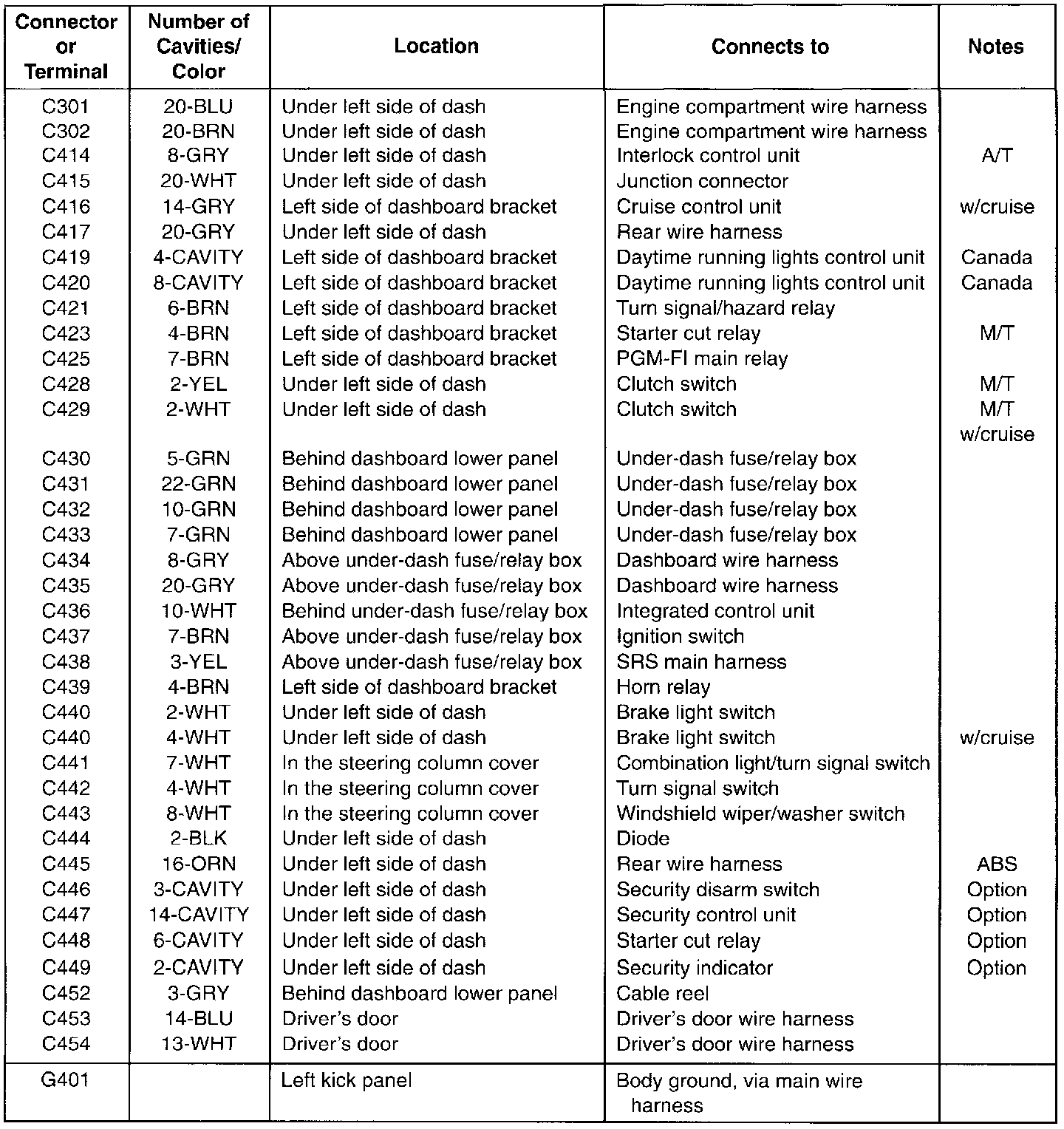

Main Wire Harness, Left Side of Dash
Main Wire Harness, Left Side of Dash
Main Wire Harness, Left Side Of Dash:
Main Wire Harness, Left Side Of Dash:
