Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Testing and Inspection
Blower Motor: Testing and Inspection

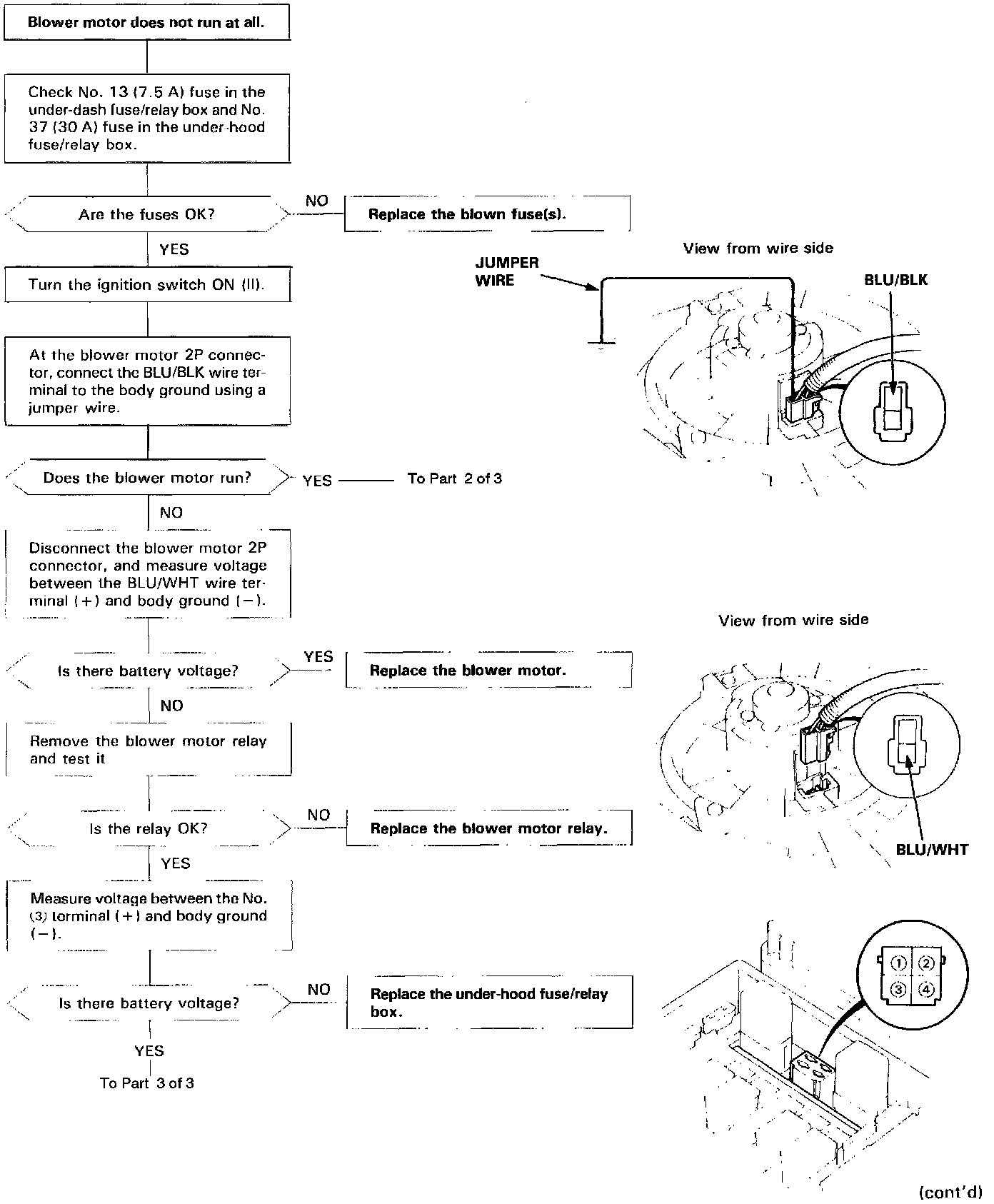

Flow Chart-Blower Motor (Part 1 Of 3):

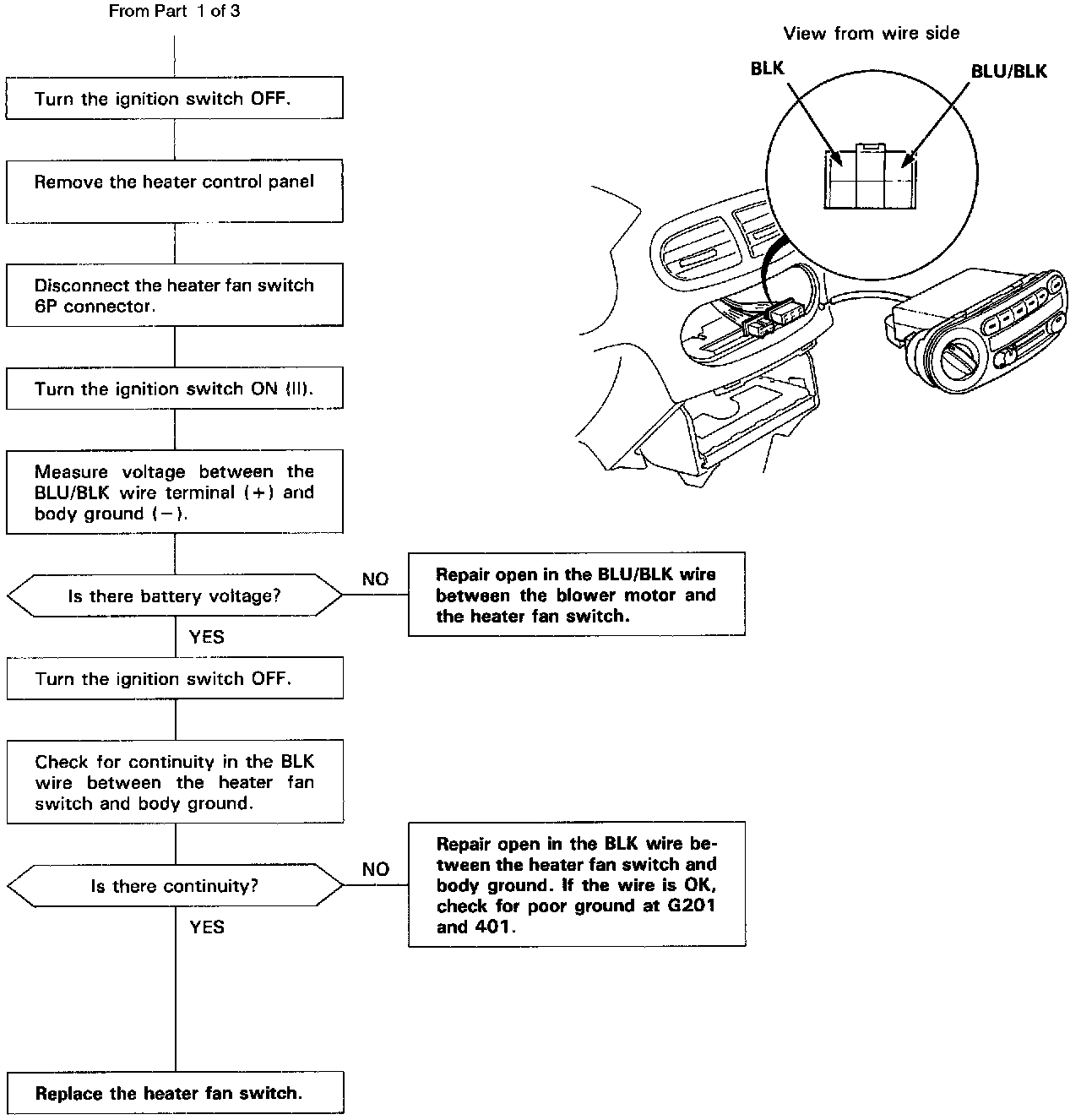

Flow Chart-Blower Motor (Part 2 Of 3):

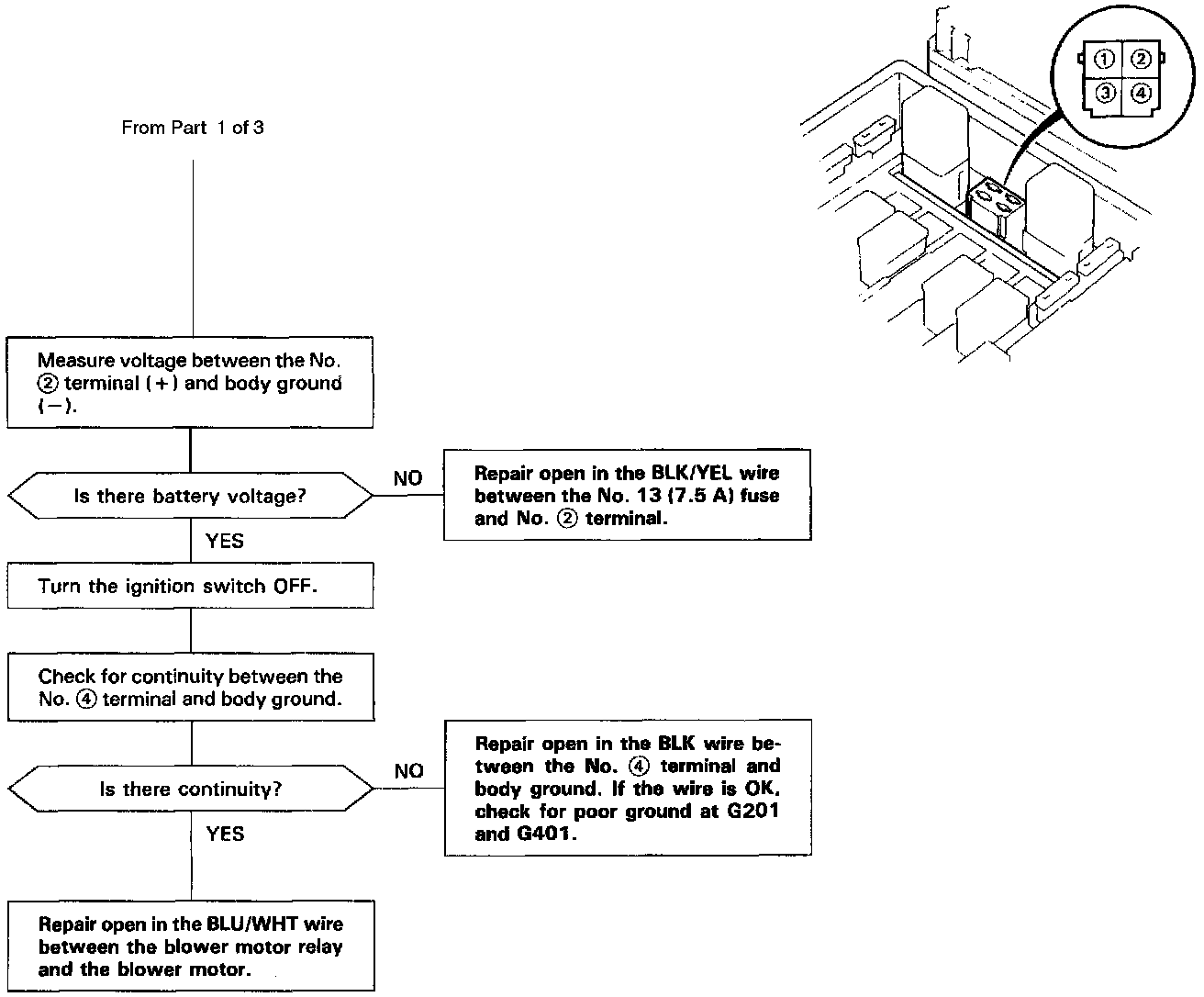

Flow Chart-Blower Motor (Part 3 Of 3):
