Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Diagrams
>>
Exploded Views
Exploded Views

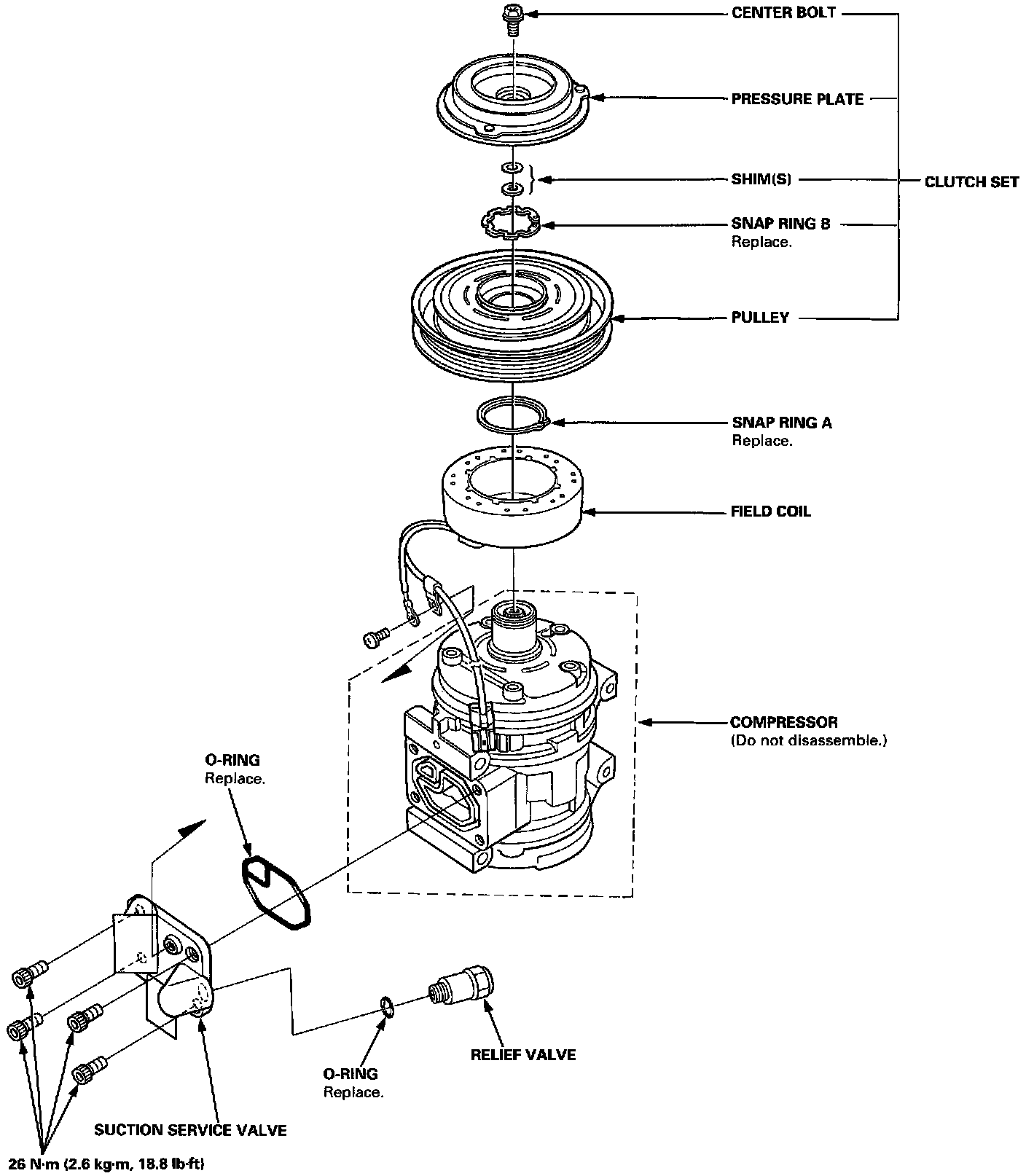

Compressor-Illustrated Index:

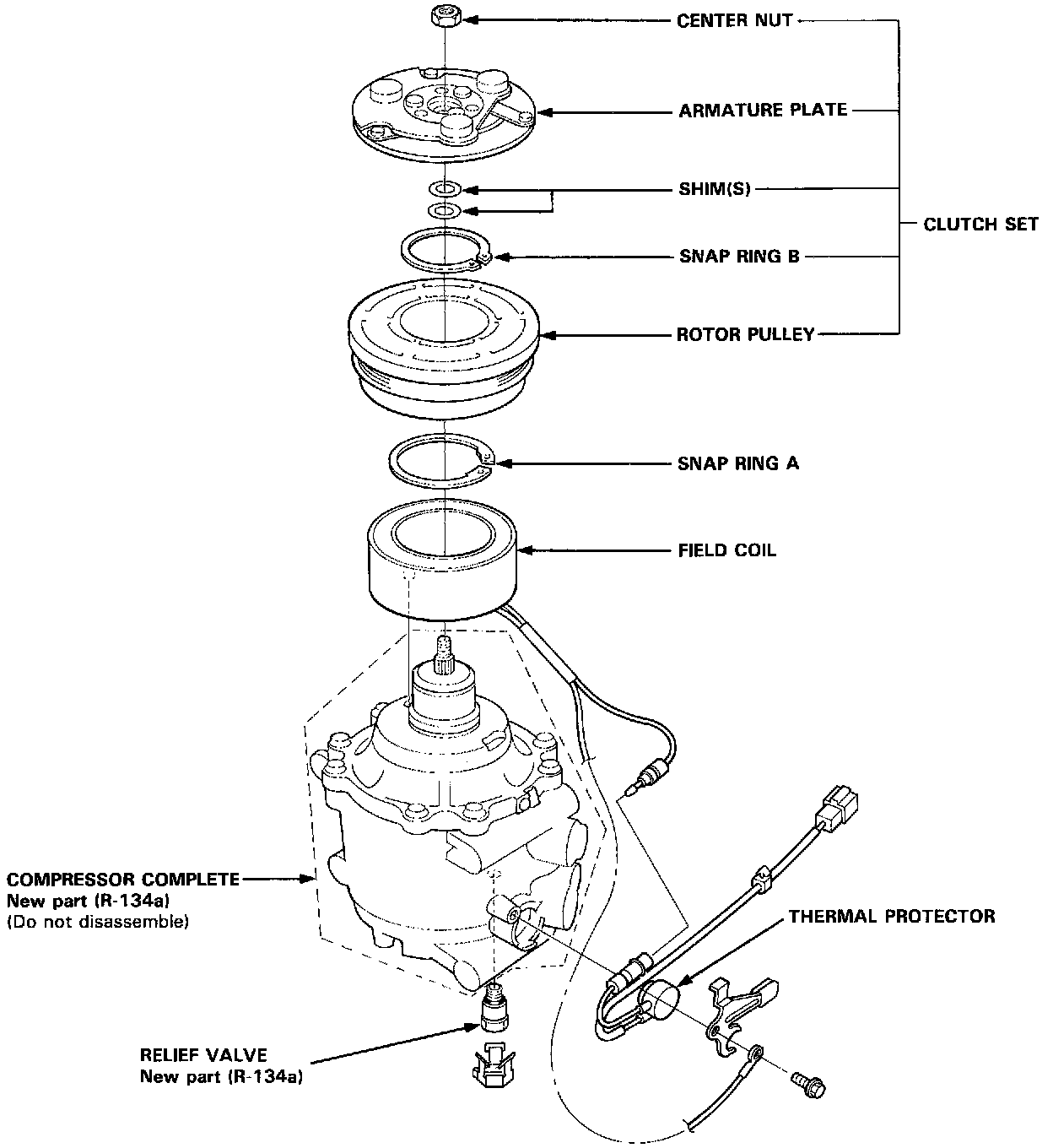

Compressor-Illustrated Index:
