Diesel Data
: Automotive Repair
Home
>>
Honda
>>
1996
>>
Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Air Conditioning
>>
A/C System
A/C System

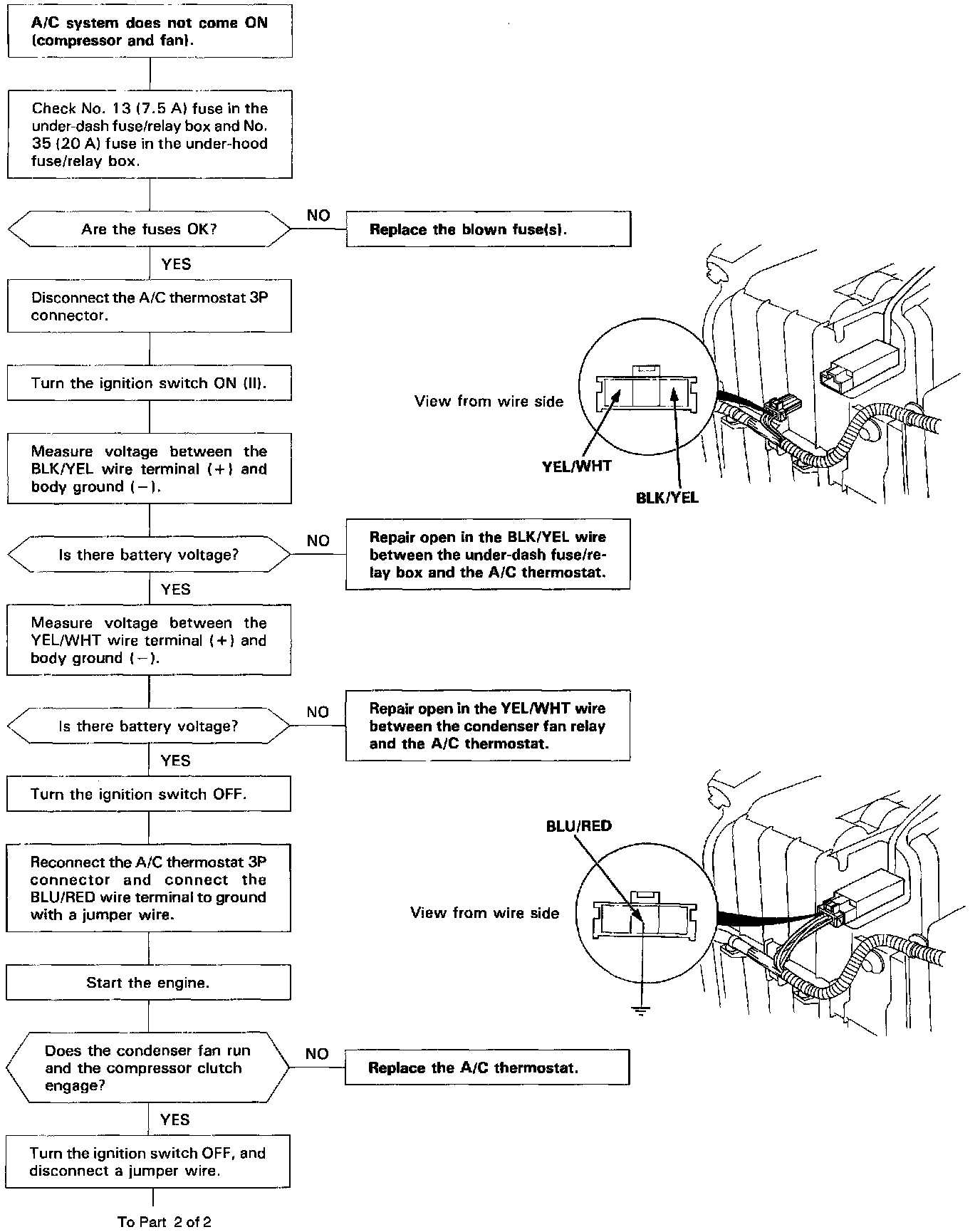

Flow Chart-A/C System (Part 1 Of 2):

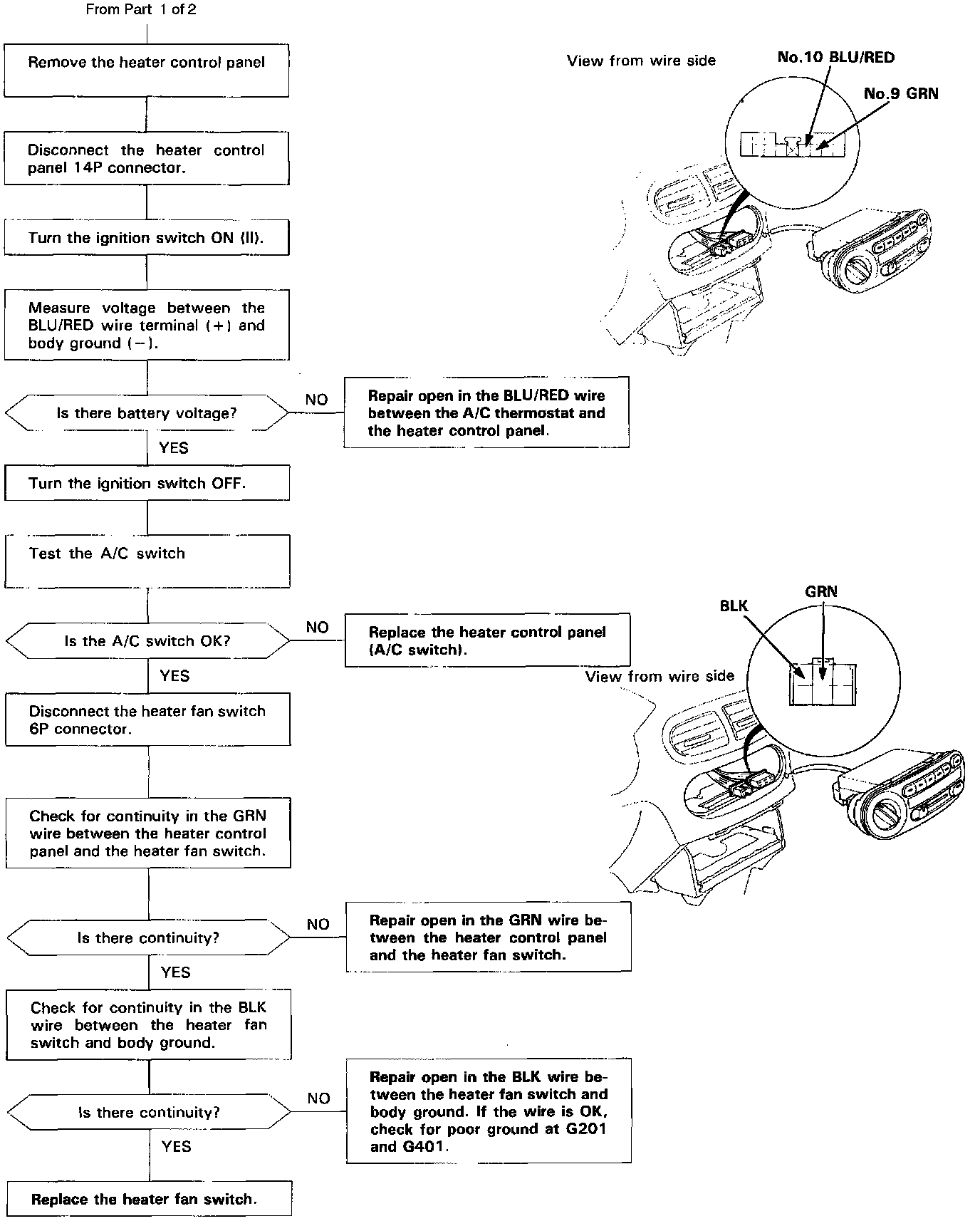

Flow Chart-A/C System (Part 2 Of 2):
