Schematic

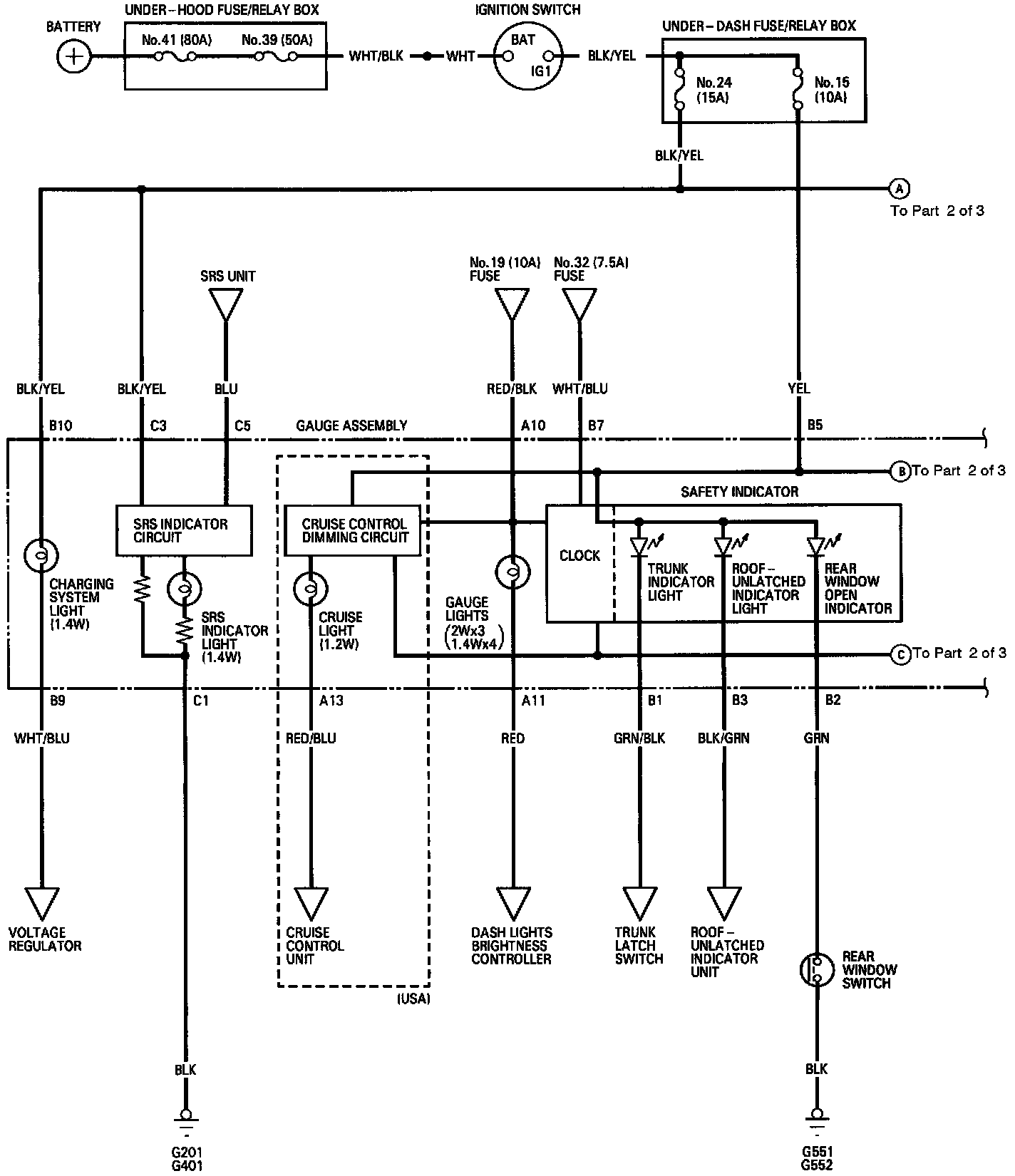

Circuit Diagram (Part 1 Of 3):

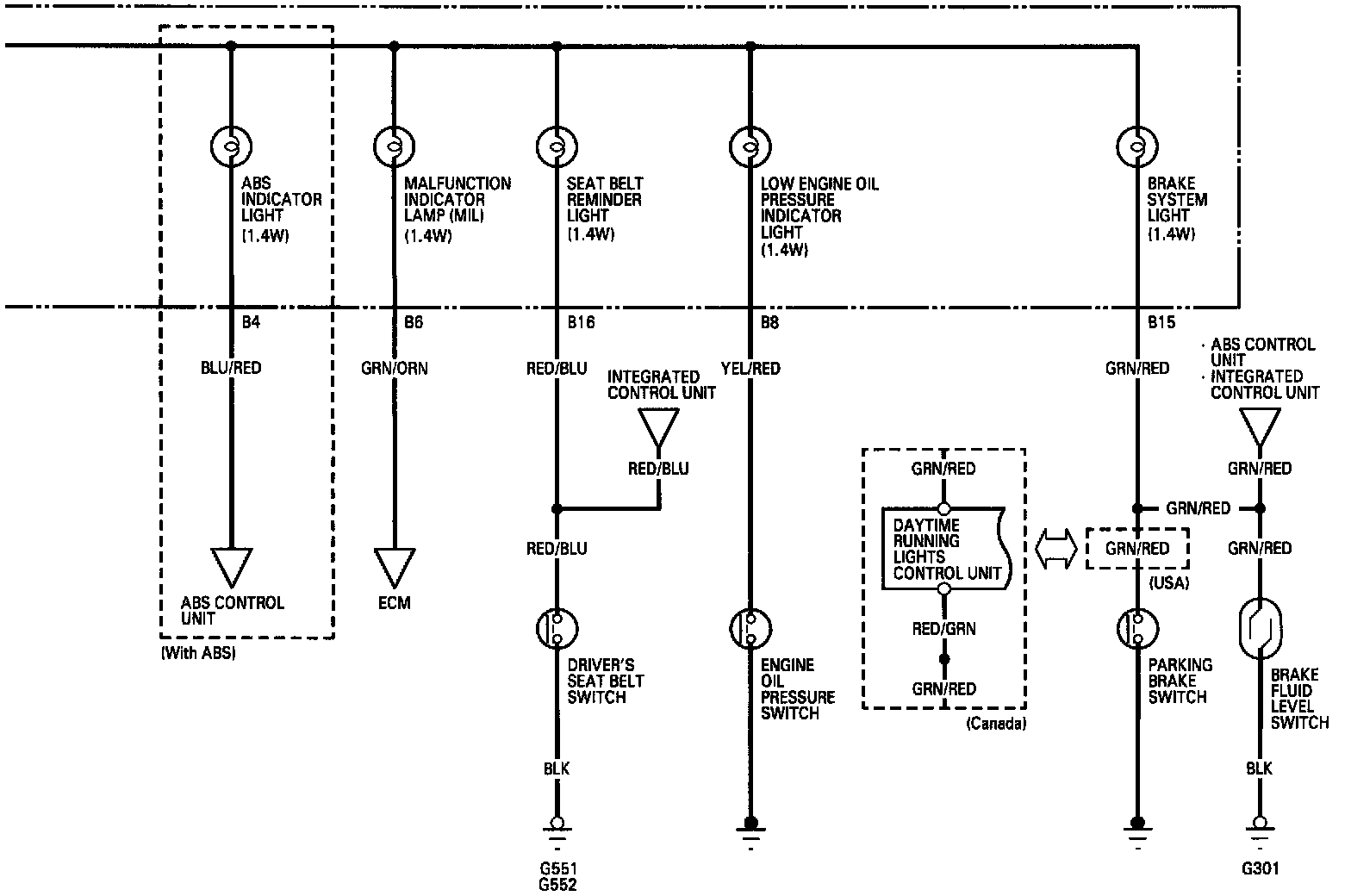

Circuit Diagram (Part 2 Of 3):




Circuit Diagram (Part 3 Of 3):
