Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Tail Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

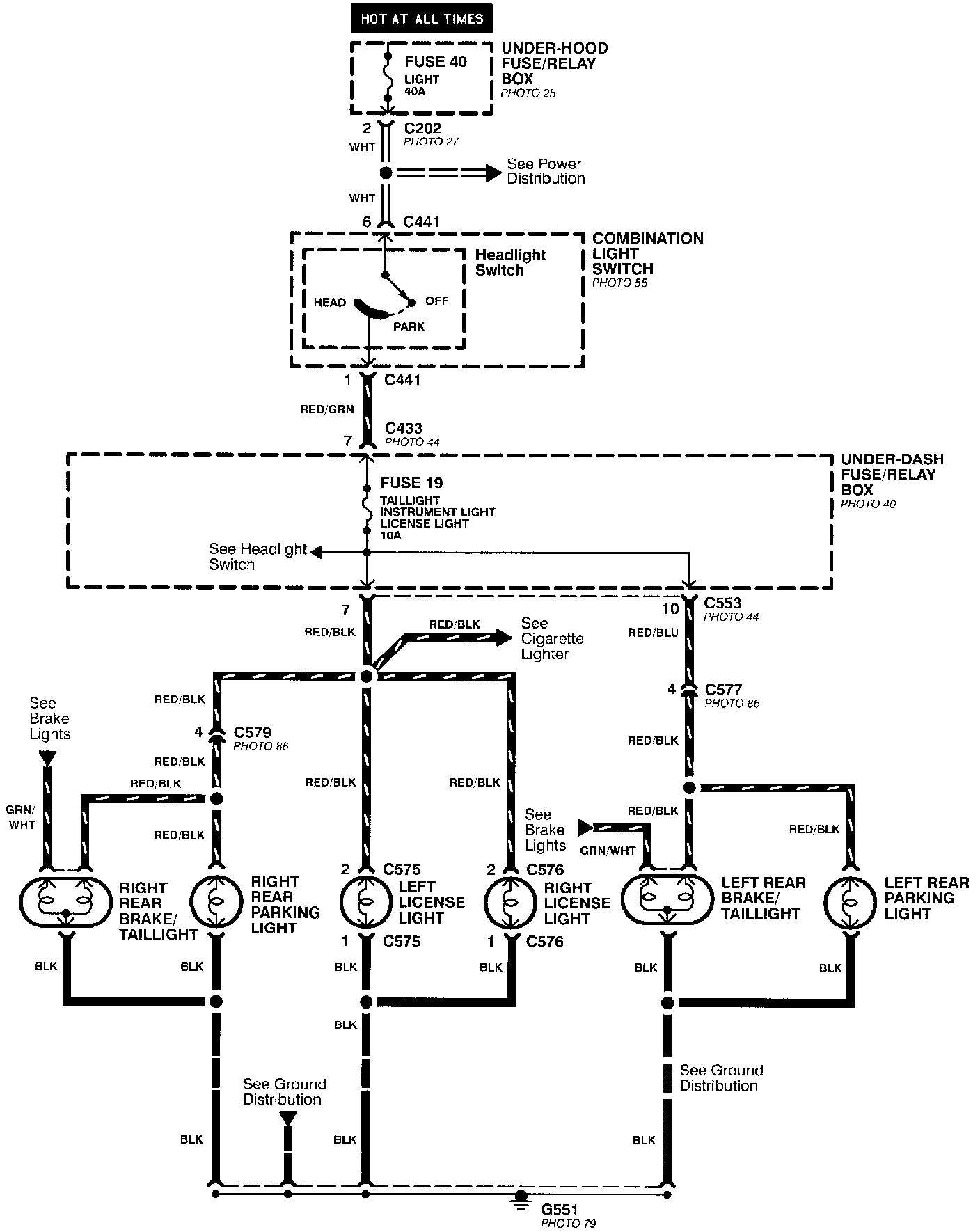

Taillights, Rear Parking, And License Lights:
