Home >> Honda >> 1996 >> Del Sol L4-1.6L DOHC (VTEC) >> Repair and Diagnosis >> Locations >> Connector Locations >> Photographs >> 81-90 >> 84

81-90: 84

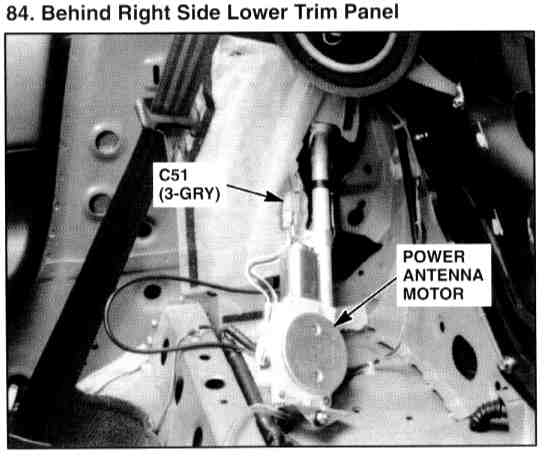

Behind Right Side Lower Trim Panel
