Home >> Honda >> 1996 >> Del Sol L4-1.6L DOHC (VTEC) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams >> Wiring Diagrams >> Nippondenso Starters

Nippondenso Starters

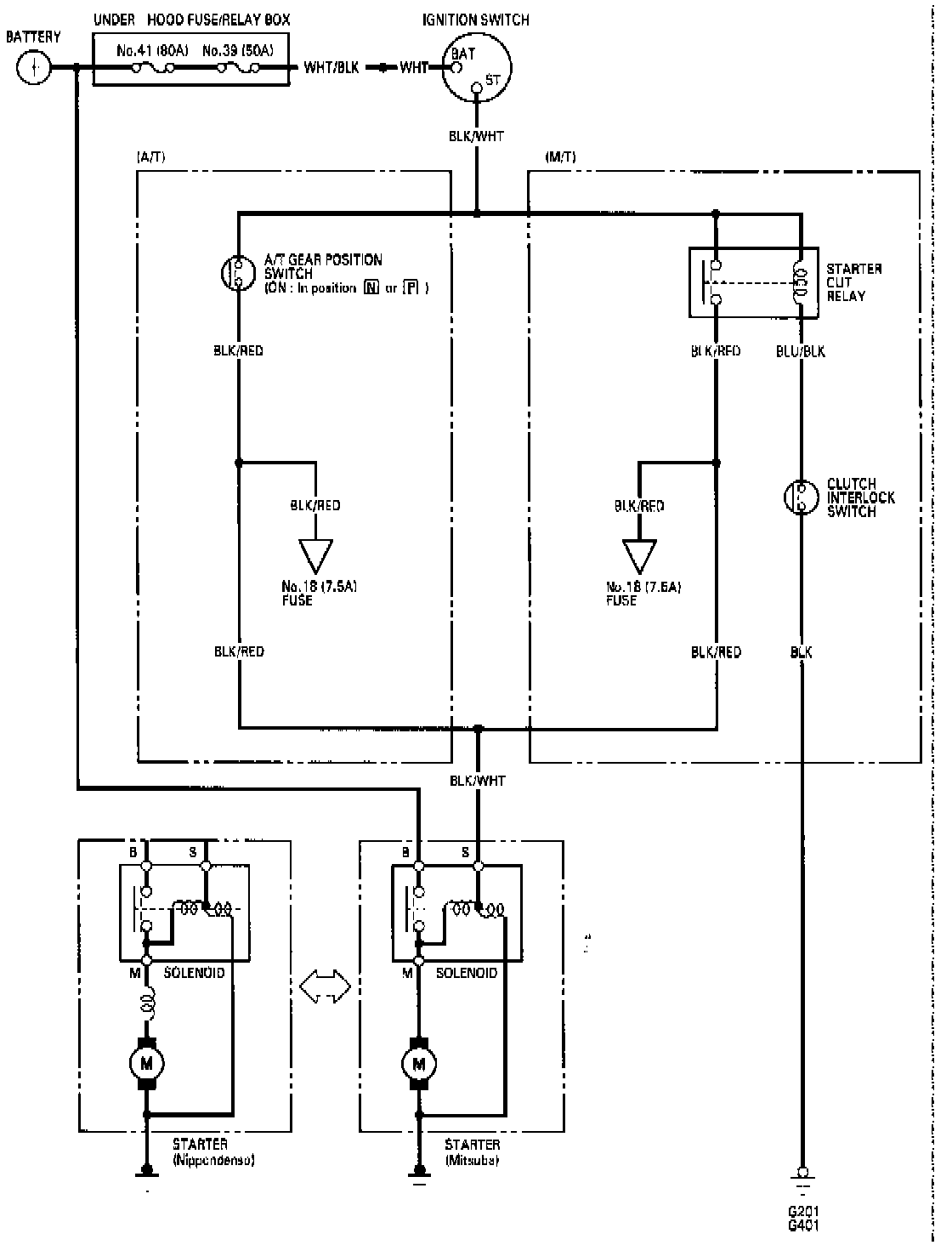

Fig. 9 Starting System Wiring Circuit:





Refer to Fig. 9 when testing this starter.
