Home >> Honda >> 1996 >> Del Sol L4-1.6L DOHC (VTEC) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Diagrams >> Electrical Diagrams >> Schematic

Schematic

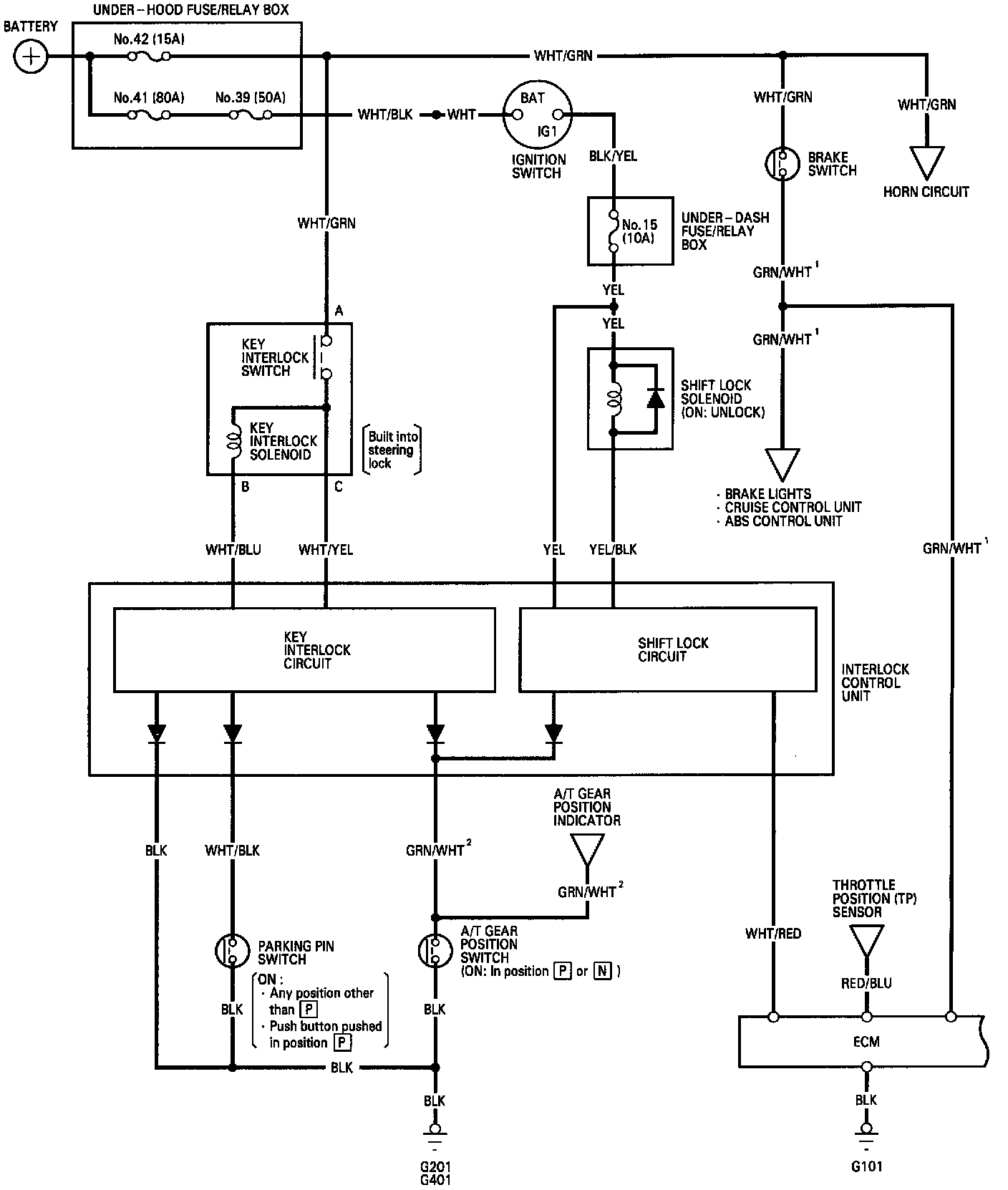

Interlock System-Circuit Diagram:





NOTE: Different wires with the same color have been given a number suffix to distinguish them (for example, GRN/WHT1 and GRN/WHT2 are not the same).
