Bell Housing: Service and Repair

MAINSHAFT

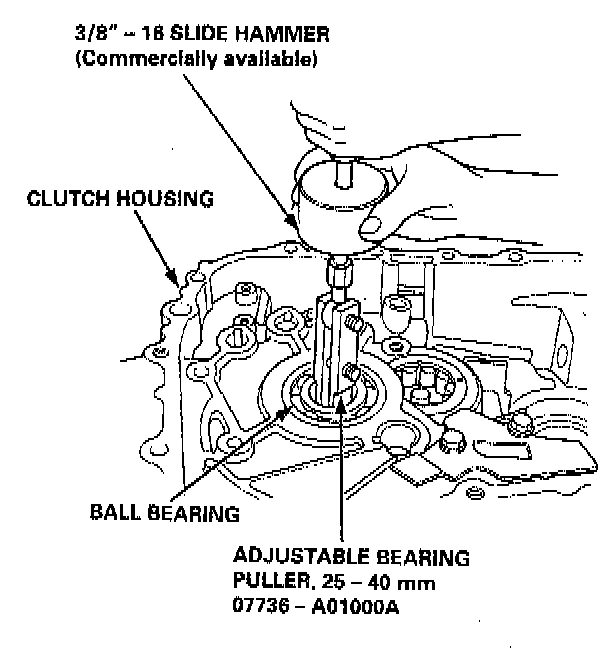

1. Remove the ball bearing using the special tools as shown.

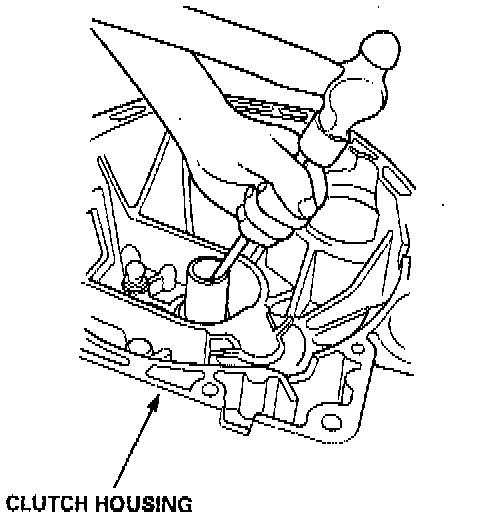

2. Remove the oil seal from the clutch housing.

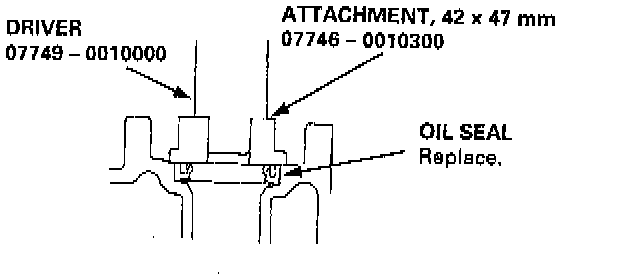

3. Drive the new oil seal into the clutch housing using the special tools as shown.

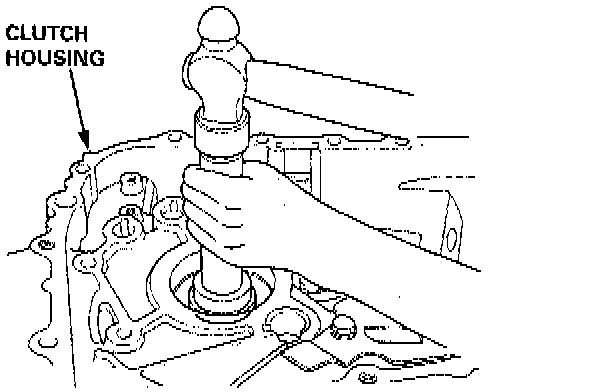

4. Drive the ball bearing into the clutch housing using the special tools as shown.

COUNTERSHAFT





1. Bend the tab on the lock washer down, then remove the bolt and bearing retainer plate.

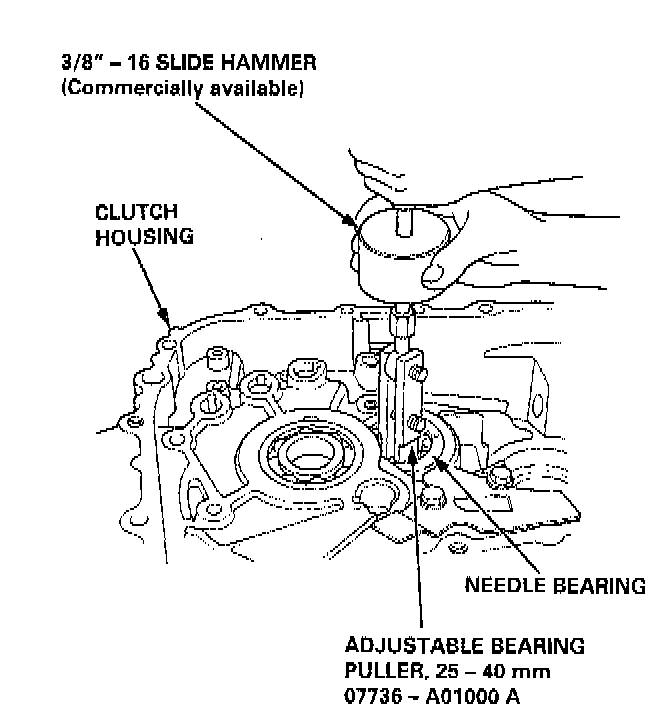

2. Remove the needle bearing using the special tools as shown, then remove the oil guide plate.

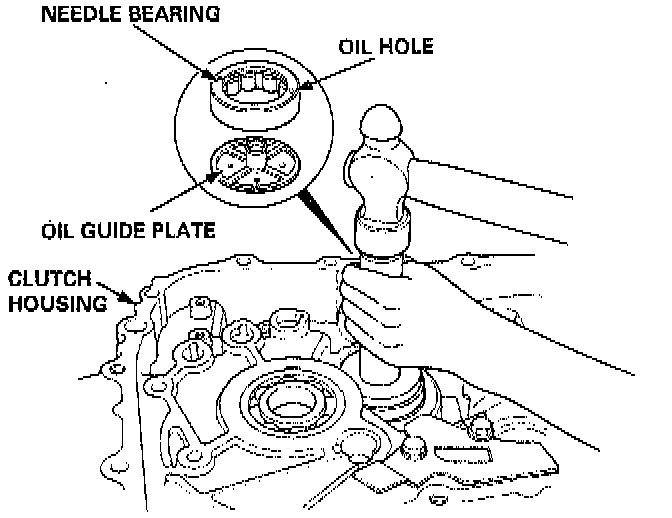

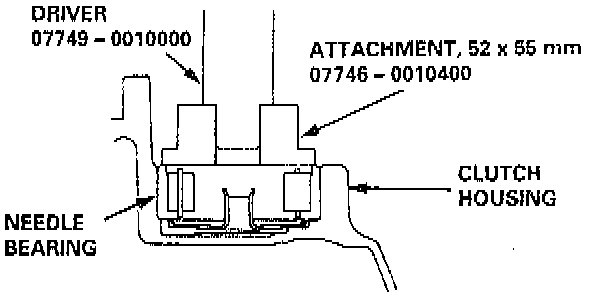

3. Position the oil guide plate and new needle bearing in the bore of the clutch housing, then drive in the needle bearing using the special tools as shown.

NOTE: Position the needle bearing with the oil hole facing up.

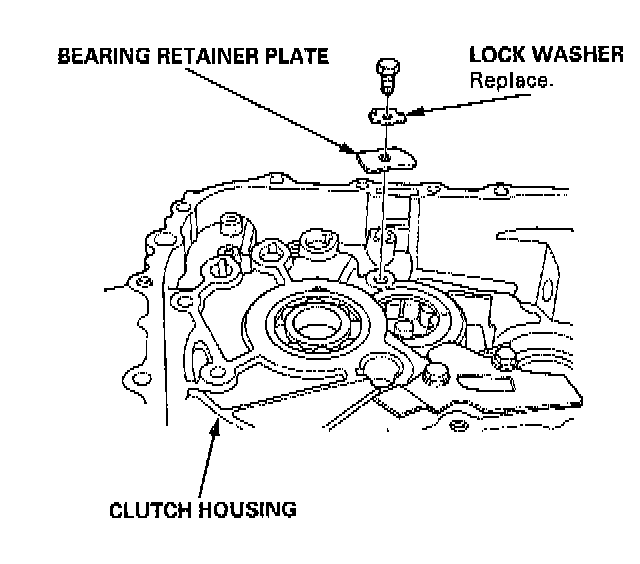

4. Install the bearing retainer plate and new lock washer, then bend the tab against the bolt head.
