Change Holder
Change Holder
REMOVAL
1.

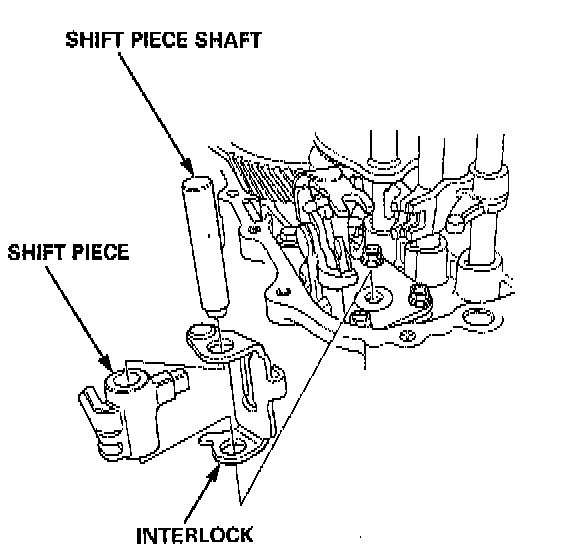

Remove the shift piece shaft, then remove the shift piece and the interlock.
2.

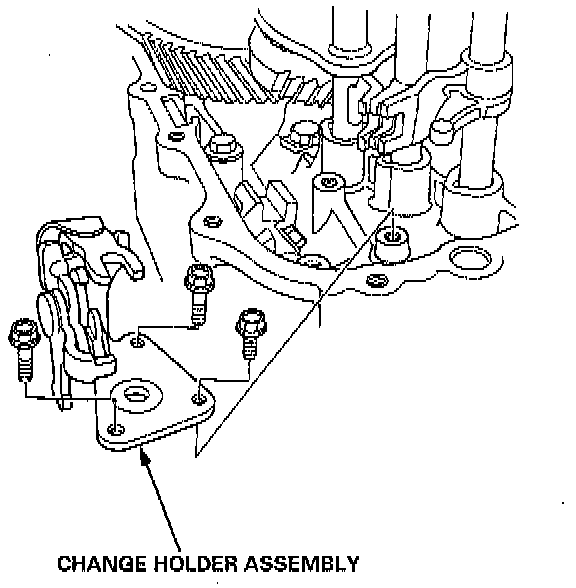

Remove the change holder assembly.
